Ormandy Commodore Plus - Jacket Installation; Insulation Installation (Mantle)

Page 14 / 36
Hartley and Sugden

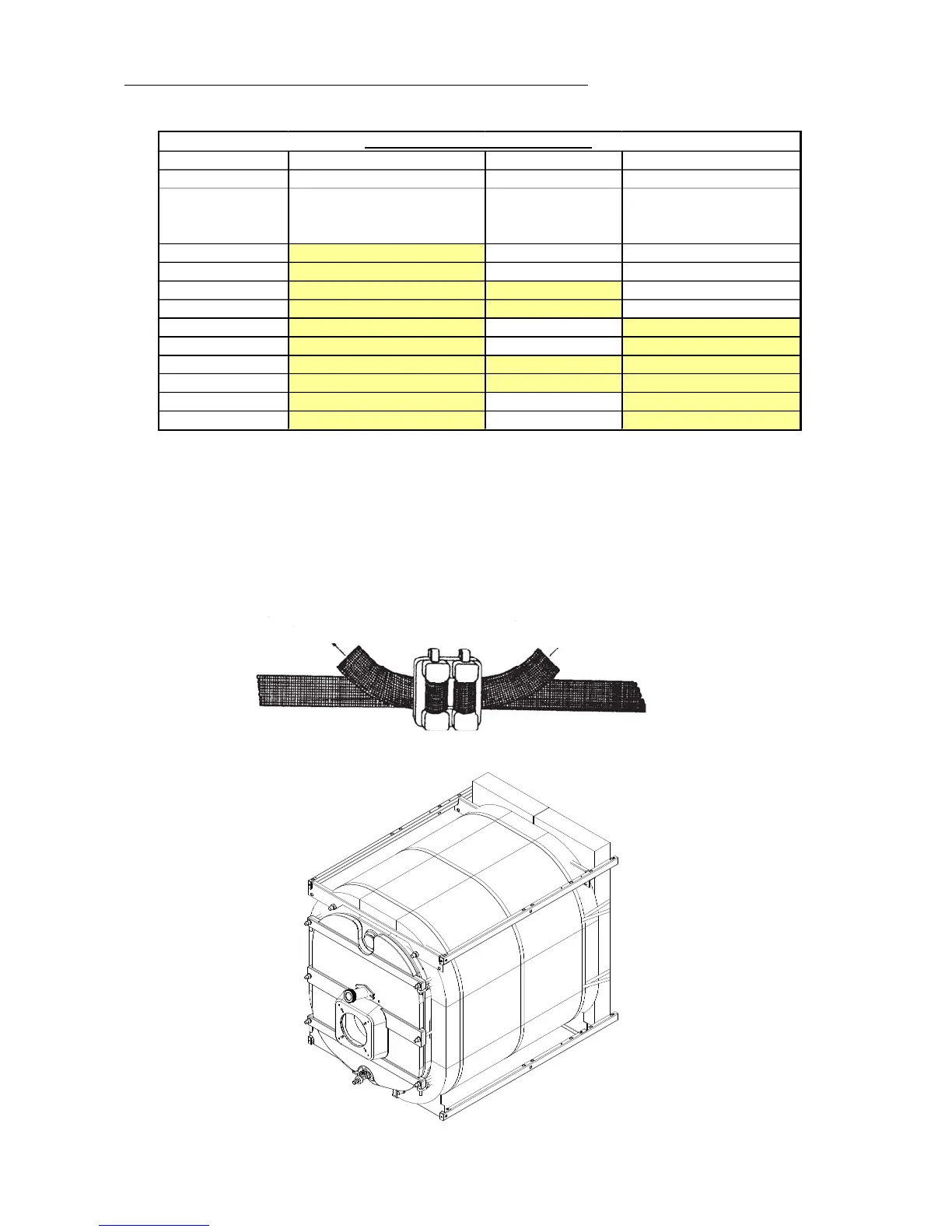

3.3 . Jacket installation
DO NOT TIGHTEN TOO MUCH TO OBTAIN OPTIMAL INSULATION
3.3.1. Insulation installation (mantle)
1. Place the insulation around the heating body while taking ca re to engage this one be lo w t he heating bod y.
2. Bind it with 3 (6) tapes (see schema here under).
Caution the first(s) tape(s) A, must be at +/- 5 cm of the edge of the insulation.
3. P lace the rear insulation on the rear secti on
4. P lace the 2 r ear tapes (see schema here under : example for a 132 (6) model).
Pull Pull
Assembly hoopingand buckles reinforced: tightening
Basic parcel = casing (122-132) Extension Lg: 260mm Ext ension Lg : 520mm
Commodore Plus 4-15-000-10006 4-15-000-10026 4-15-000-10052
Number of
intermed iate s ections
n° 5
(122) 1 - -
n° 6
(132) 1 - -
n° 7
(241) 1 1 -
n° 8
(242) 1 1 -
n° 9
(234) 1 - 1
n° 10
(244) 1 - 1
n° 11
(335) 1 1 1
n° 12
(345) 1 1 1
n° 13
(355) 1 - 2
n° 14
(455) 1 - 2
Casing composition Commodore Plus
