- A base must be built according to good engineering practice, considering the dimensions and the weight of the
heating boiler
- Start the installation with the rear boiler section (A1)
3. Assembly of the boiler

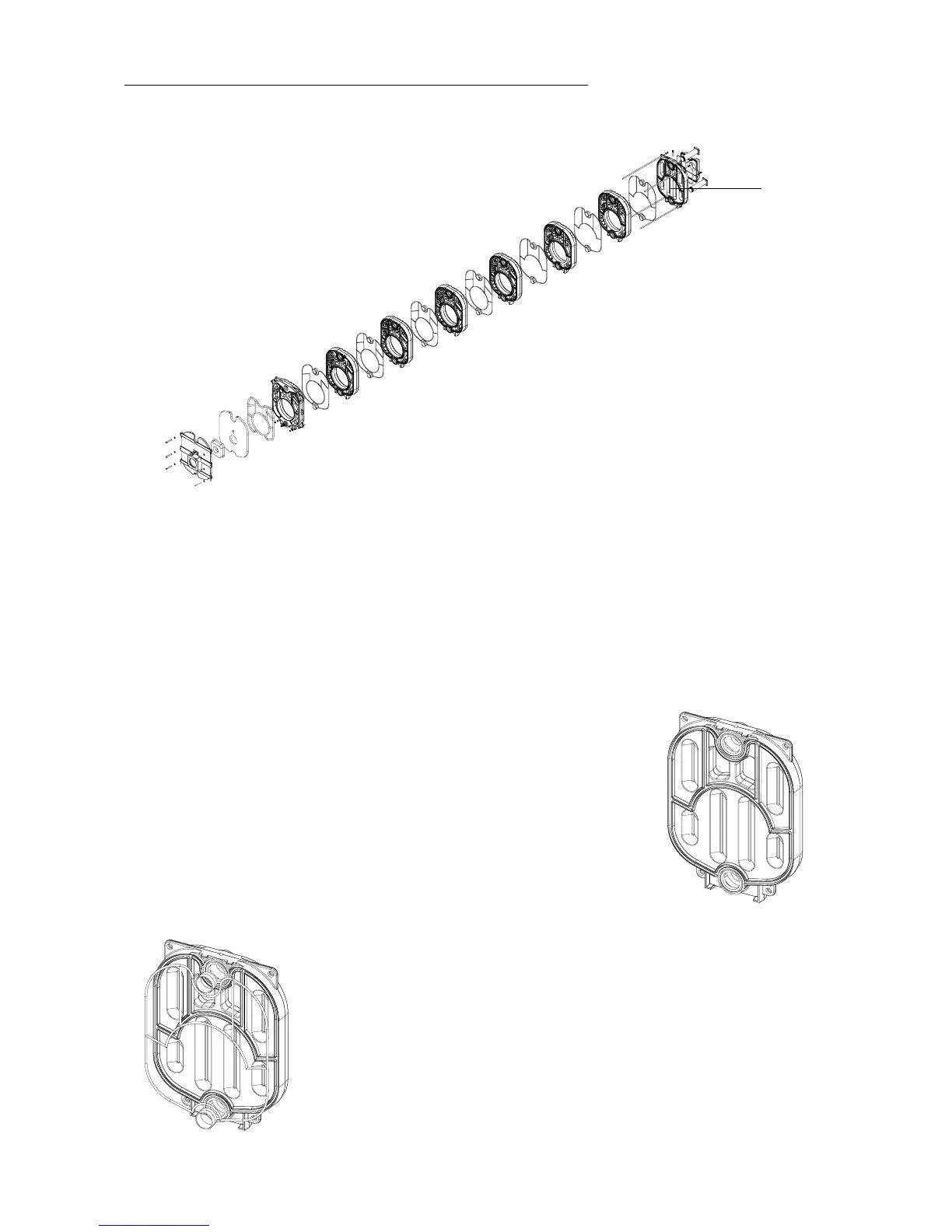

3.1 . Cast iron body installation
A
1. Po siti on the rear boiler section vertically at the chosen place, also determined
by the overall dimensions of the boiler (jacket included).
2. Coat the section ribs with adhesi ve (supplied with the installation access ories)
and attach the lengths of sealing cord ( code n° 1-30-240-60410 / Ø 10mm ) in the
section ribs. Carefully degrease the double-taper nipples and bores. Coat the
nipples with compound ( supplied with the installation acc essor ies ) . Drive the
double-taper nipples int o the bores using a mallet or a hammer. It i s extremely
important t hat t he nipples should be driven in smoothly and exactly in t he centre
line of the bore.
