Ormandy Commodore Plus - Panel and Plate Assembly

Page 19 / 36
Hartley and Sugden

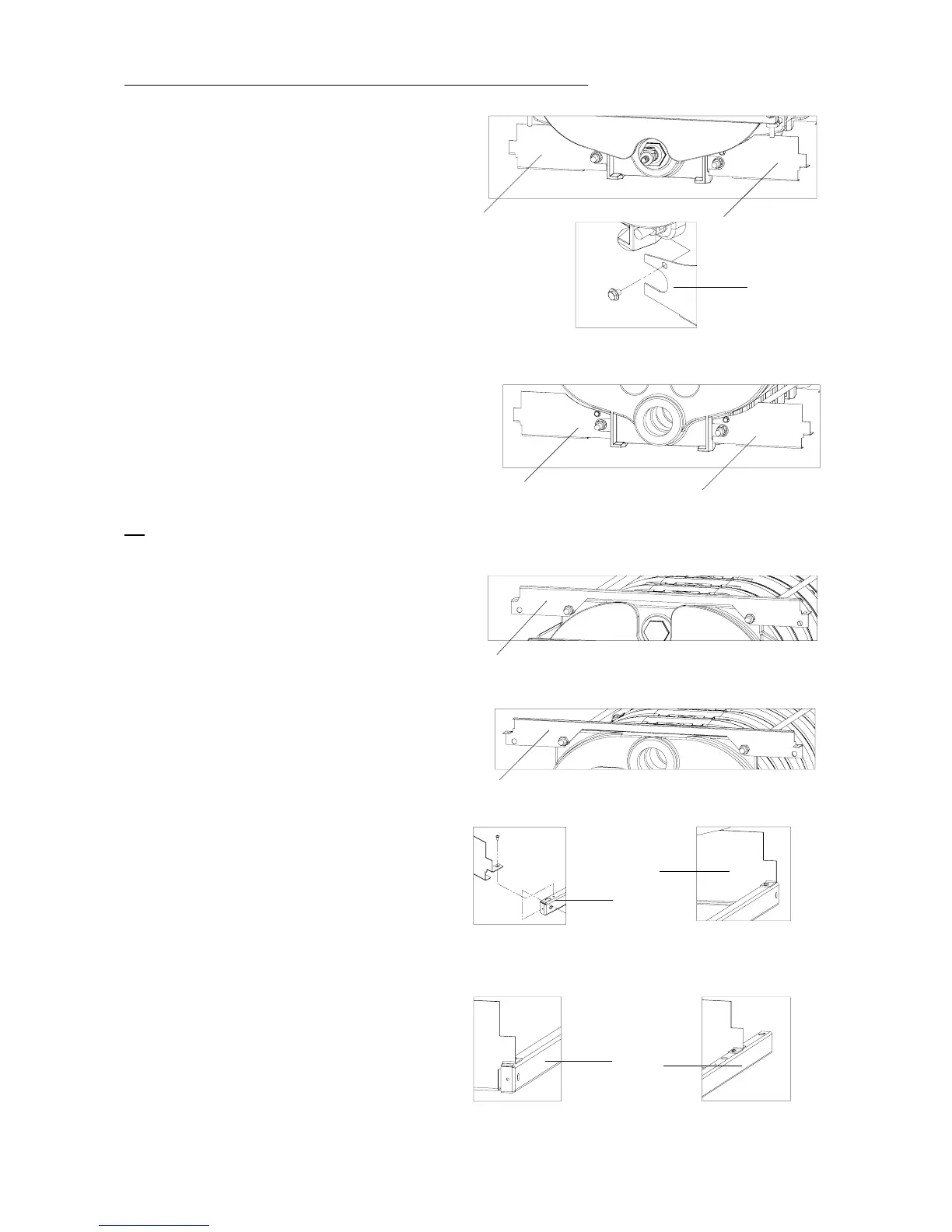

3.3.4. Assembly of the panels and plates
1. Fixingof thefrontrightlowerguide supporton thefrontcast-
iron sect ion (fold backwards).
- 1 Tensilock screw M8X12
2
1
2. Fixing of the front left lower guide support on the front
cast-iron section (fold backwards).
- 1 Tensilock screw M8X12
1
3. Fixing of the rear left lower guide support on the rear cast-
iron secti on (fold inside).
-1TensilockscrewM8X12
43
4. Fixing of the rear right lower guide support on the rear
cast-iron section (fold i nside).
- 1 Tensilock screw M8X12
5
5. Fixing of the uppe r guide supp or t on the front cast-iron
section (fold backwards).
- 2 nuts M16
-2washersM16
6. Fixing of the upper guide support on the rear cast-iron
section (fold backwards).
- 2 nuts M16
-2washersM16
6
7. Fixing of the left lower guide.
- 2 Parker screws 4.2X10
8. Fixing of the right lower guide.
- 2 Parker screws 4.2X10
NB
: the front right lower guide supports are the same as the rear left.
the front left lower guide supports are the same as the rear right.
7
7
8
8
rear part
front part
rear part
front part
