Ormazabal cgm.3 Series User Manual

IG-183-EN version 06; 31/03/2020
81
General instructions
cgm.3 system: medium voltage SF
6
gas-insulated
cubicles up to 38 kV according to IEEE and CSA standards
Maintenance
3. Extract the cable from the driving mechanims
compartment.

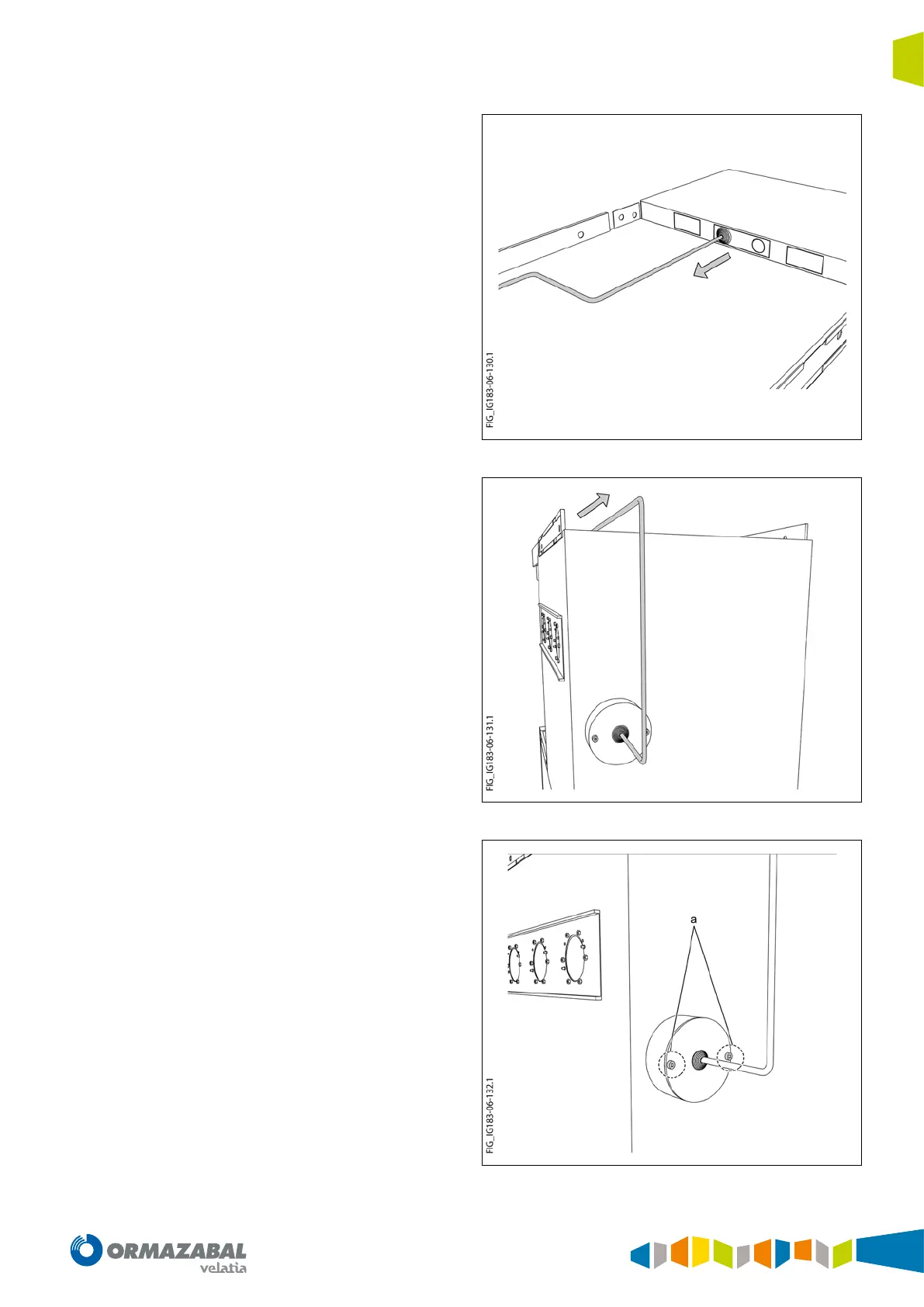

Figure 7.6. Cable extraction
4. Bring the cable to the back part of the gas tank.
Figure 7.7. Detail of the back part
5. Unscrew the two bolts of the cover of the camera
housing. Be careful with the O-ring position adjustment
of the camera.
Figure 7.8. Detail of the two bolts
