Maintenance
General instructions
cgm.3 system: medium voltage SF
6
gas-insulated
cubicles up to 38 kV according to IEEE and CSA standards
6. Remove the cover and the O-ring. Extract the cable
connection.

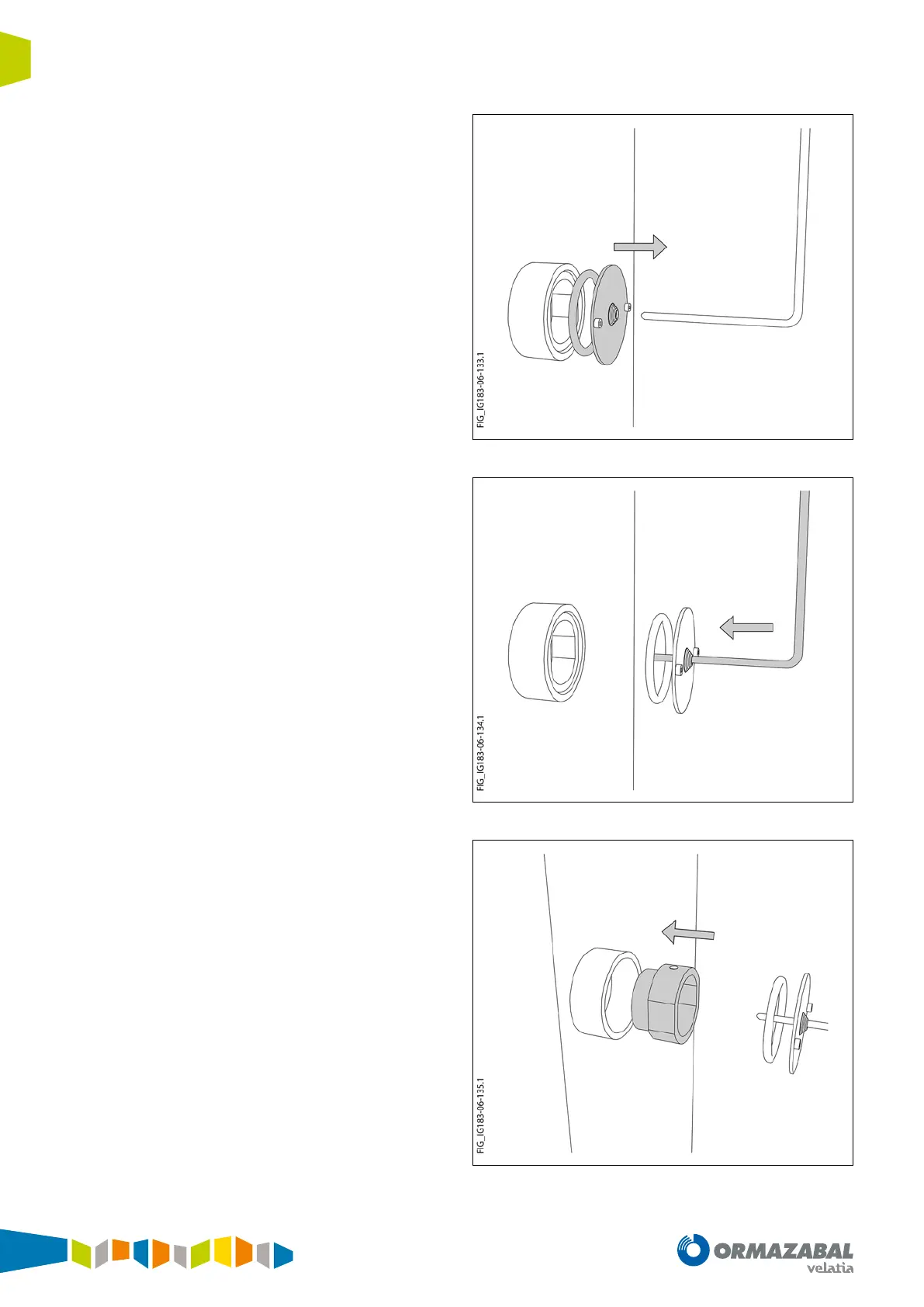

Figure 7.9. Removing the cover and the cable
7. Insert the cable connection of the new camera, rst
through the O-ring and then through the cover of the
camera housing.
Figure 7.10. New camera cable connection
8. Position the new camera in its seat. Attention to the
position of the camera, always place the adhesive side
up.
Figure 7.11. Position of the new camera
