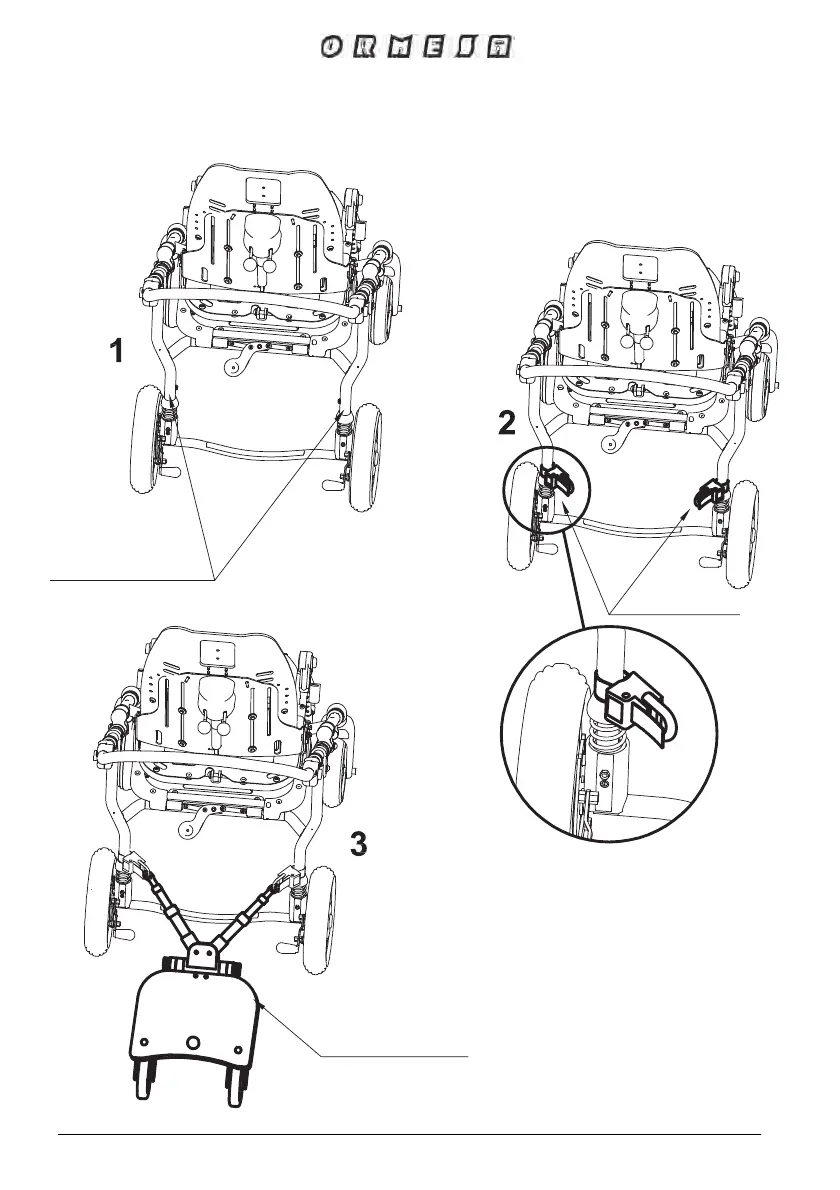

B - MOUNTING
TO MOUNT THE STRAPS
FOLLOW THE INSTRUCTIONS
OF THE MANUFACTURER OF
THE BOARD
VIEW FROM BEHIND
Mounted straps
where to place
the straps
to position the board
TO ATTACH THE STRAPS
FOLLOW THE INSTRUCTIONS
OF THE MANUFACTURER OF
THE BOARD
Board attached
98/104
