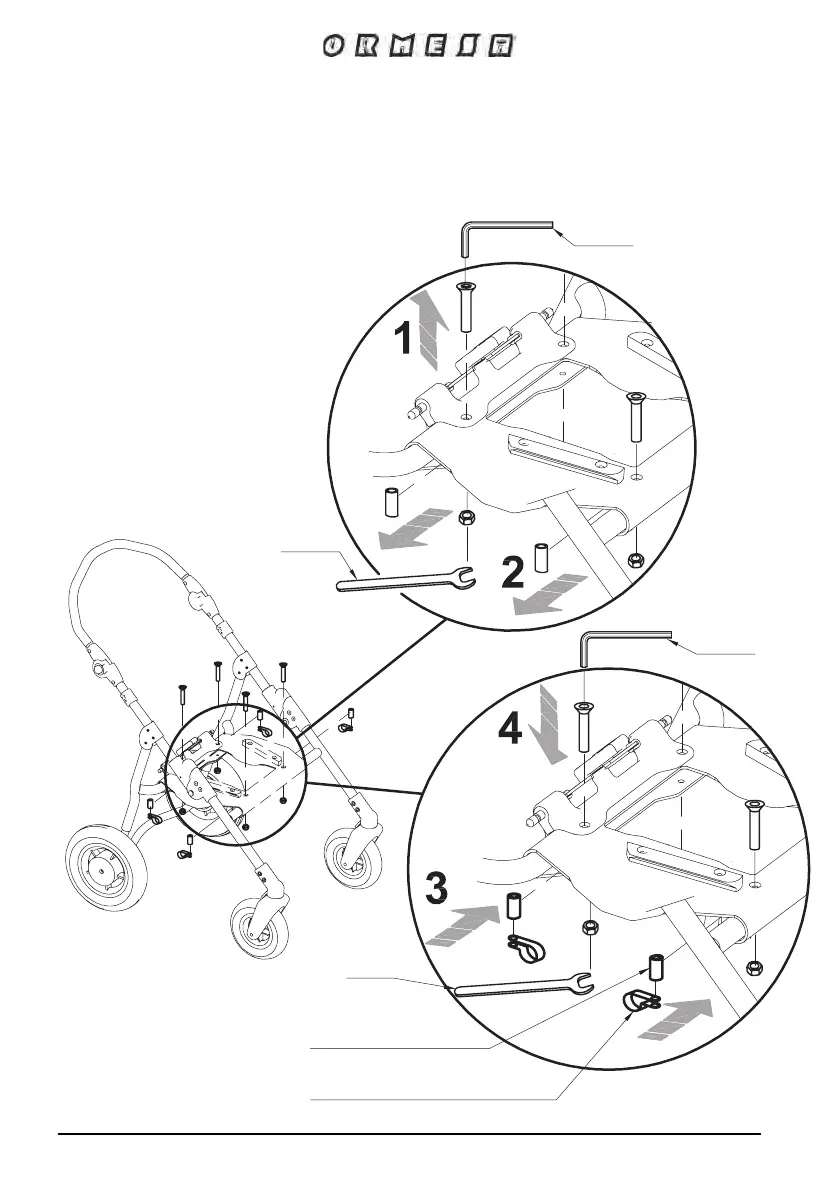

D - FIXING THE CABLE CLIPS
1- LOOSEN THE 4 SCREWS
2- REMOVE THE 4 EXISTING PLASTIC BUSH
3- FIX THE 4 PLASTIC BUSH IN EQUIPMENT AND THE CABLE CLIPS
4- FIX THE SCREWS
BUSH IN EQUIPMENT
CABLE CLIPS IN EQUIPMENT
WRENCH
WRENCH
WRENCH
WRENCH
86/104
