SecureSync 2400 Option Card Field Installation Guide
[10]: NEMA-Compliant Card, Cable Installation
Additional steps for the installation of the NEMA-compliant card (PN1204-1F).
Note: The double-wide NEMA card can only be installed in slots 1 & 2 on the SecureSync 2400.
a.
After installation in slots 1 and 2, connect the supplied cable, part number 8195-0000-5000, to the main-
board connector J19, pins 3 - 8.
Note: Pins 1 and 2 of connector J19 are not used:

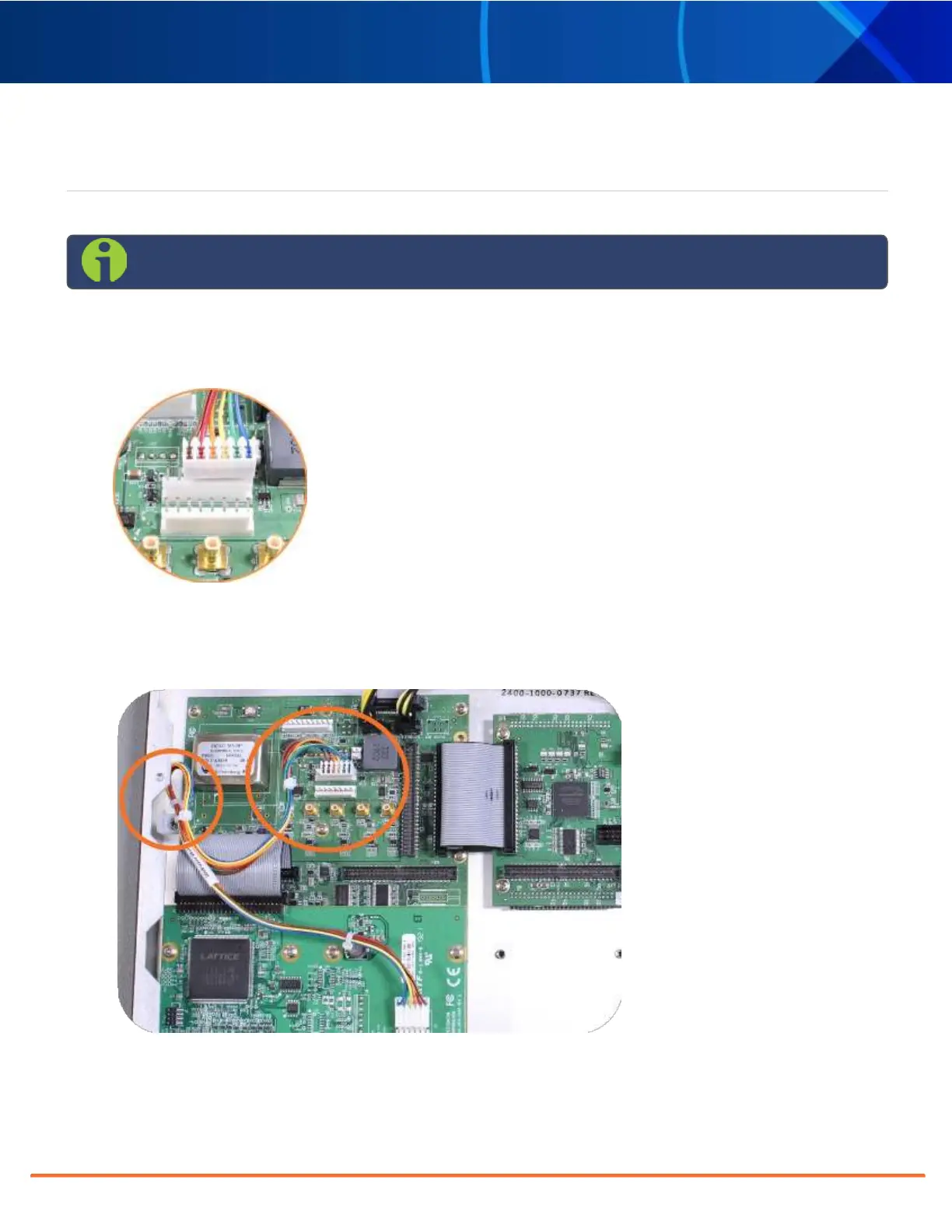

Figure 12: J19 Connector, seen from rear of unit.
b.
Using the supplied cable ties, secure the cable, part number 8195-0000-5000, from the option card to the
white nylon cable tie holder fastened to the mainboard (see figurebelow).
Figure 13: Cable routing
