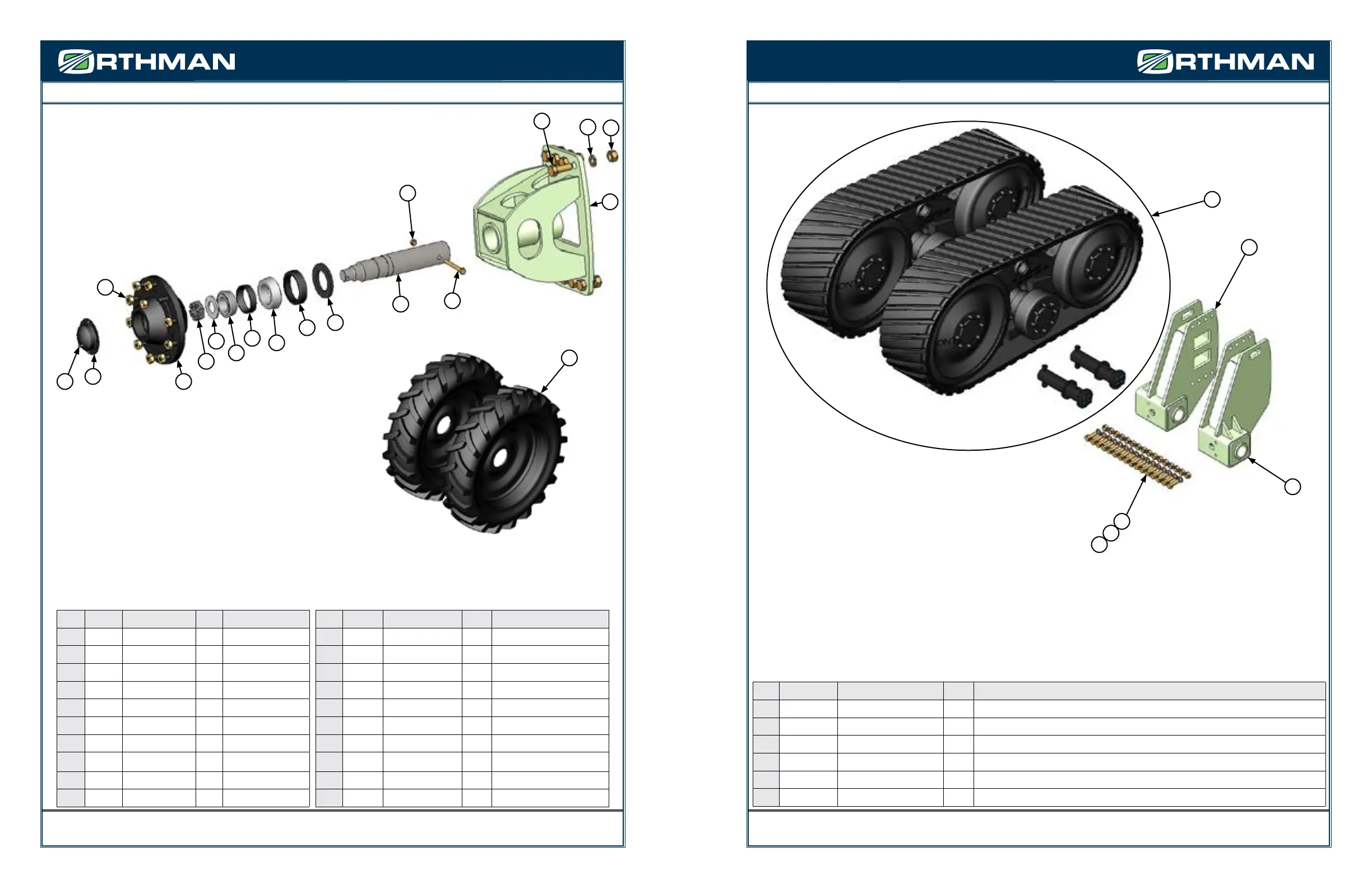

Orthman 1tRIPr XD - Large Wheel and Axle Package; Camoplast TTS 30-1601 Track Package

PARTS IDENTIFICATIONPARTS IDENTIFICATION
CAMOPLAST TTS 30-1601 TRACK PACKAGE
Key Part #
Description
Qty Notes
1 190-160 Tracks and Axle Pins - Contact the Orthman parts department for individual replacement parts.
2 352-272 LH Axle Mount 1 ----
3 352-271 RH Axle Mount 1 ----
4 100-446 Bolt 16 1”-8 x 2 3/4”
5 108-025 Lock Washer 16 1”
6 102-111 Nut 16 Hex/ 1”
6
1
2
3
5
4
10 - 13
1
6
7
8
9
10
11
12
13
14
15
16
17
19
18
2
3
4
5
LARGE WHEEL AND AXLE PACKAGE
Key Part # Description Qty Notes Key Part # Description Qty Notes
1 190-148 Tire and Rim 2 480/80R50 11 134-028 Washer 1 2 1/16” x 4” x 1/4”
2 348-510 Wheel Mount 2 ---- 12 120-085 Bearing 1 Small
3 100-446 Bolt 16 1”-8 x 2 3/4” 13 120-086 Race 1 Small
4 108-025 Lock Washer 16 1” 14 120-084 Bearing 1 Large
5 102-111 Hex Nut 16 1” 15 120-087 Race 1 Large
6 100-104 Bolt 4 5/16”/18 x 1/2” 16 150-142 Seal 1 ------
7 150-034 Dust Cap 1 ---- 17 188-026 Spindle 1 ------
8 102-089 Lug Nut 10 3/4” - 16 18 100-145 Bolt 1 5/8”-11 x 6 1/2”
9 170-042 Hub 1 Includes items 13 & 15 19 102-029 Lock Nut 1 5/8”
10 102-088 Slotted Nut 1 2” - 12
10 - 12
