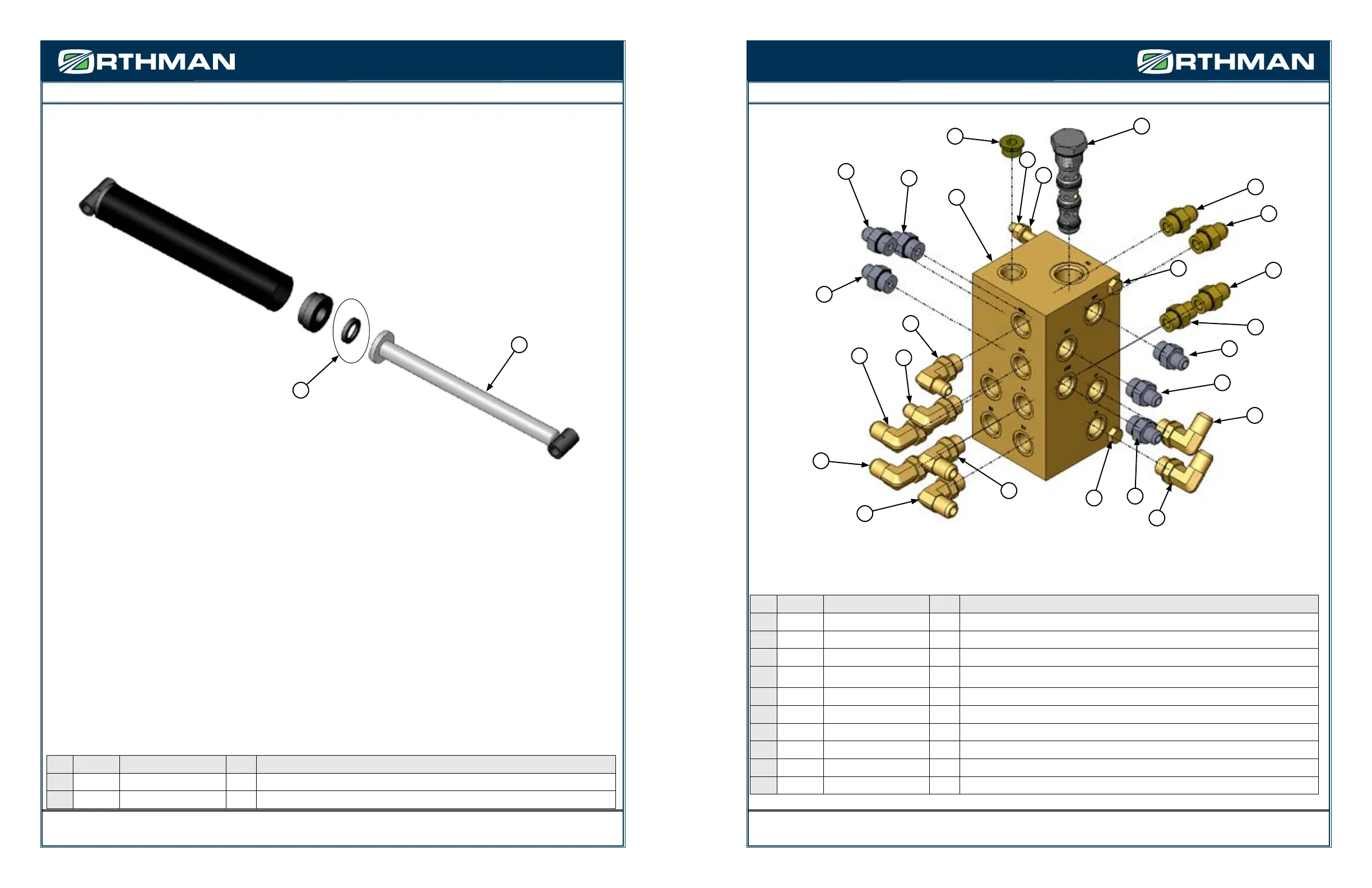

Orthman 1tRIPr XD - Hydraulic Cylinder (Machine Lift); Standard Hydraulic Manifold Assembly

PARTS IDENTIFICATIONPARTS IDENTIFICATION
STANDARD HYDRAULIC MANIFOLD ASSEMBLY
Key Part #
Description
Qty Notes
1 180-332 Manifold block 1 no ttings
2 198-078 Adaptor 6 3/4 - 16MB - 9/16-18MJ
3 198-210 Plug 1 3/4 - 16MB
4 198-089 Elbow 6 3/4 - 16MB - 3/4 - 16MJ
5 100-215 Bolt 2 3/8 - 16 x 5 1/2 GR. 5
6 198-128 Adaptor 4 3/4-16MB - 3/4MJ
7 180-279 Flow Divider 1 -----
8 108-018 Lock Washer 2 3/8
9 102-005 Nut 2 3/8-16 GR. 2
10 198-064 Elbow 2 3/4-16MB - 9/16-18MJ
2
1
3
2
2
4
4
4
4
4
4
5
2
10
10
2
2
6
6
6
6
7
9
8
5
10 - 21
HYDRAULIC CYLINDER (MACHINE LIFT)
Key Part #
Description
Qty Notes
1 194-585 Seal kit 1 for 194-584 cylinder
2 194-586 Cylinder rod 1 ---
10 - 20
1
1
