Orthman 1tRIPr XD - NT Hydraulic Manifold;Gear Flow Divider Assembly; Hydraulic Hose Identification - Standard Wing Fold

PARTS IDENTIFICATIONPARTS IDENTIFICATION
TOOLBAR
MANIFOLD
BLOCK
B
A
B
A
B
A
B
A
RH WING FOLD CYLINDERS LH WING FOLD CYLINDERS
HYDRAULIC HOSE IDENTIFICATION
(STANDARD WING FOLD)
Parts list located on the following page.
10 - 23
3
4
6
3
5
5
1
3
6
3
4
5
10
7
8
9
2

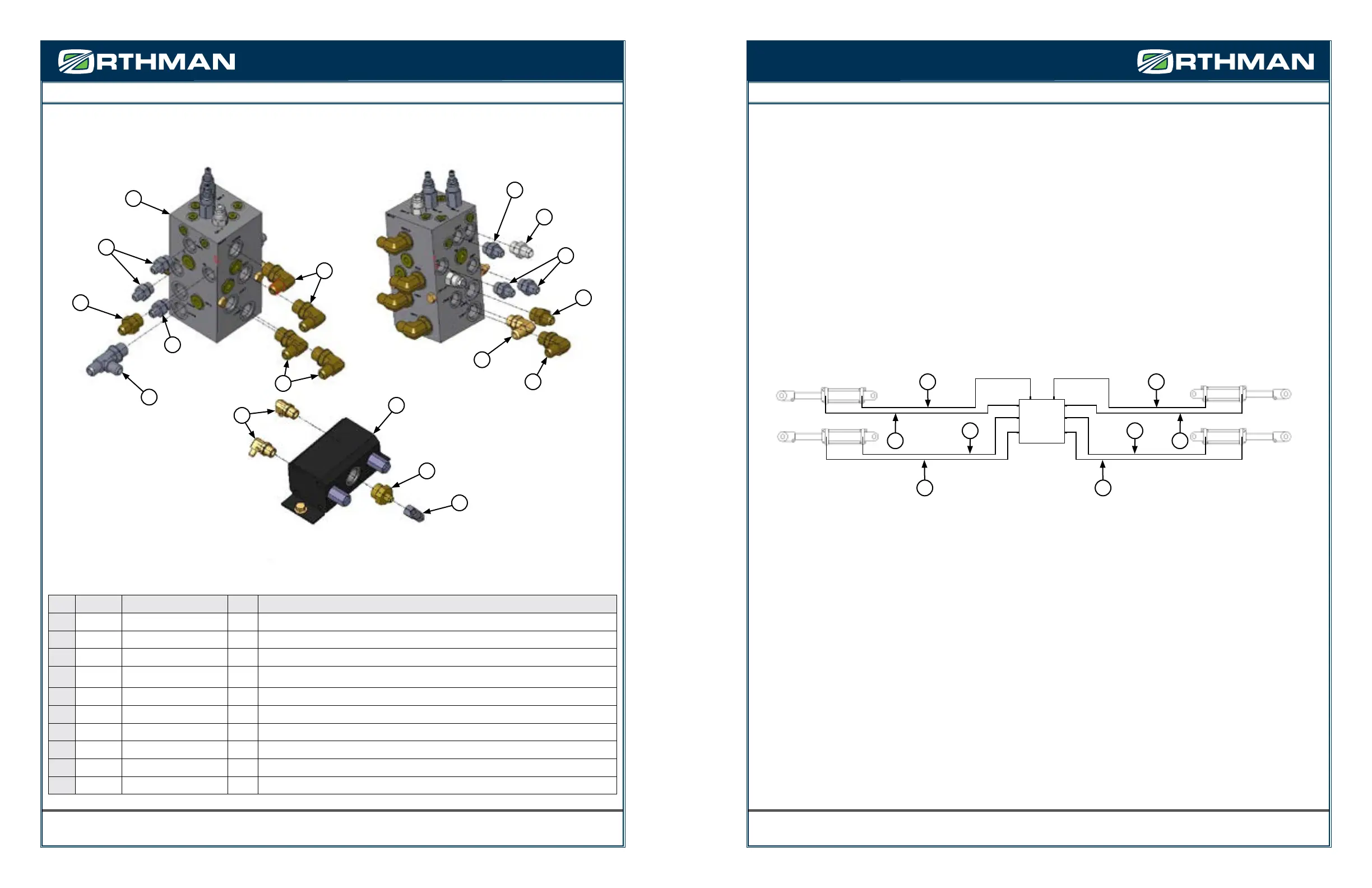

NT HYDRAULIC MANIFOLD/GEAR FLOW DIVIDER ASSEMBLY
Key Part #
Description
Qty Notes
1 180-310 Manifold block 1 no ttings
2 180-289 Gear Flow Divider 1 -------
3 198-078 Adaptor 6 3/4-16MB - 9/16-18MJ
4 198-109 Adaptor 3 7/8-14MB - 3/4-16MJ
5 198-246 Elbow 5 7/8-14MB - 3/4-16MJ
6 198-128 Adaptor 1 3/4-16MB - 3/4MJ
7 198-080 Elbow 2 7/8-14MB - 9/16-18MJ
8 198-289 Adaptor 1 5/16-12MB - 3/4-16MJ
9 198-301 Elbow 1 3/4-16MJ - 3/4FJX
10 198-089 Elbow 1 3/4-16MJ - 3/4-16MJ
RIGHT SIDE/FRONT VIEW
FRONT/LEFT SIDE VIEW
10 - 22
