Do not tighten screws completely before the stylus unit has been remounted (fig. 1) – to
adjust stylus overhang refer to the record player or tone arm manual and cartridge
dimensions. (fig. 5)
Never overtighten screws and never use aluminium screws, as they can get stuck in the
threaded holes of the mounting plate.
Note: If excessively long screws are used and are pressing against the body material, this
may influence channel separation and could damage the cartridge body. In case
of such damage the Ortofon warranty will be void.
4. Adjust tone arm parallel to record surface, adjusting anti-skating and stylus pressure
according to cartridge recommended data and record player manual.

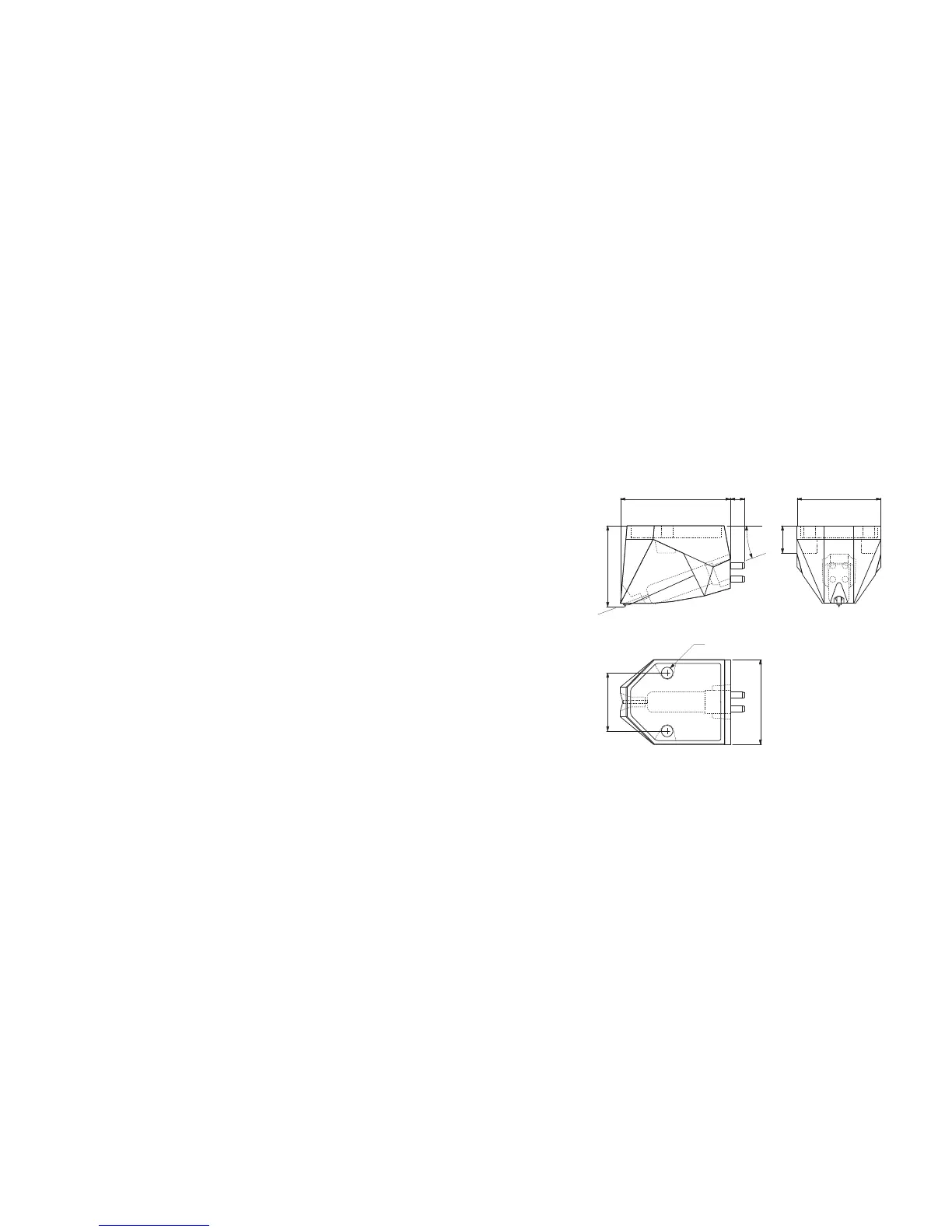

Fig. 5
6,0 mm
18,0 mm12,7 mm
18,5 mm
24,0 mm 18,5 mm3,5 mm
20˚
M2,5 mm
