Setup
Locating the SCA
To maximize ease of use and operational safety, make sure the following preparations
of the physical site are met:
• Shipping carton + pallet dimensions: 105.0 X 70.0 x 129.5 cm (41.3 D x 27.6 W x 51.0
H in).
• The system must be placed on a level floor able to support 204 kg (450 lbs.), the
system weight when filled with water.
• The electrical outlet must be located within 2 m (6 ft) of the SCA. Do not use an
extension cord or power strip with the system.
• The SCA should be near a grounded wall outlet such that the power cord does not
pose a hazard to people or equipment passing by.
• The grounded electrical outlet (US: 208VAC, 20A, 60Hz, single phase, Europe:
220VAC, 16A, 50Hz, single phase) must connect to either the European (CEE 7) or US
(NEMA L6-20P) provided power cord plug. For Australia/New Zealand use a cord set
with the following parameters:
o Plug: AS/NZS 4417 Australia 15A
o Connector: IEC-60320-C19 right angle
o Cord: H05VV-F jacket, rating 15A, 250V
o Conductors: 1.5mm
2
x 3
• The power cord plug-in receptacle is a disconnecting device that should be easily
accessible at all times. Position the unit so that the plug can be easily reached.
• It is strongly recommended that the unit be placed on a circuit with its own GFCI
breaker.
• Place the unit in a well-ventilated area.
• The operating environmental temperature must be between 5⁰C - 40⁰C (41⁰F –
104⁰F); and operating environmental humidity between 0% - 80% RH.
Preparations for draining and disposal
• Consult your local regulations regarding disposal of the cleaning solution effluent
prior to use. A permit or form of pre-treatment may be required.
• The SCA relies on gravity to drain the cleaning tank. Locating the system near a floor
drain may be convenient depending on local regulations for wastewater disposal.
• Distance from center of drain tube to floor: 43.8 cm (17.3 in)

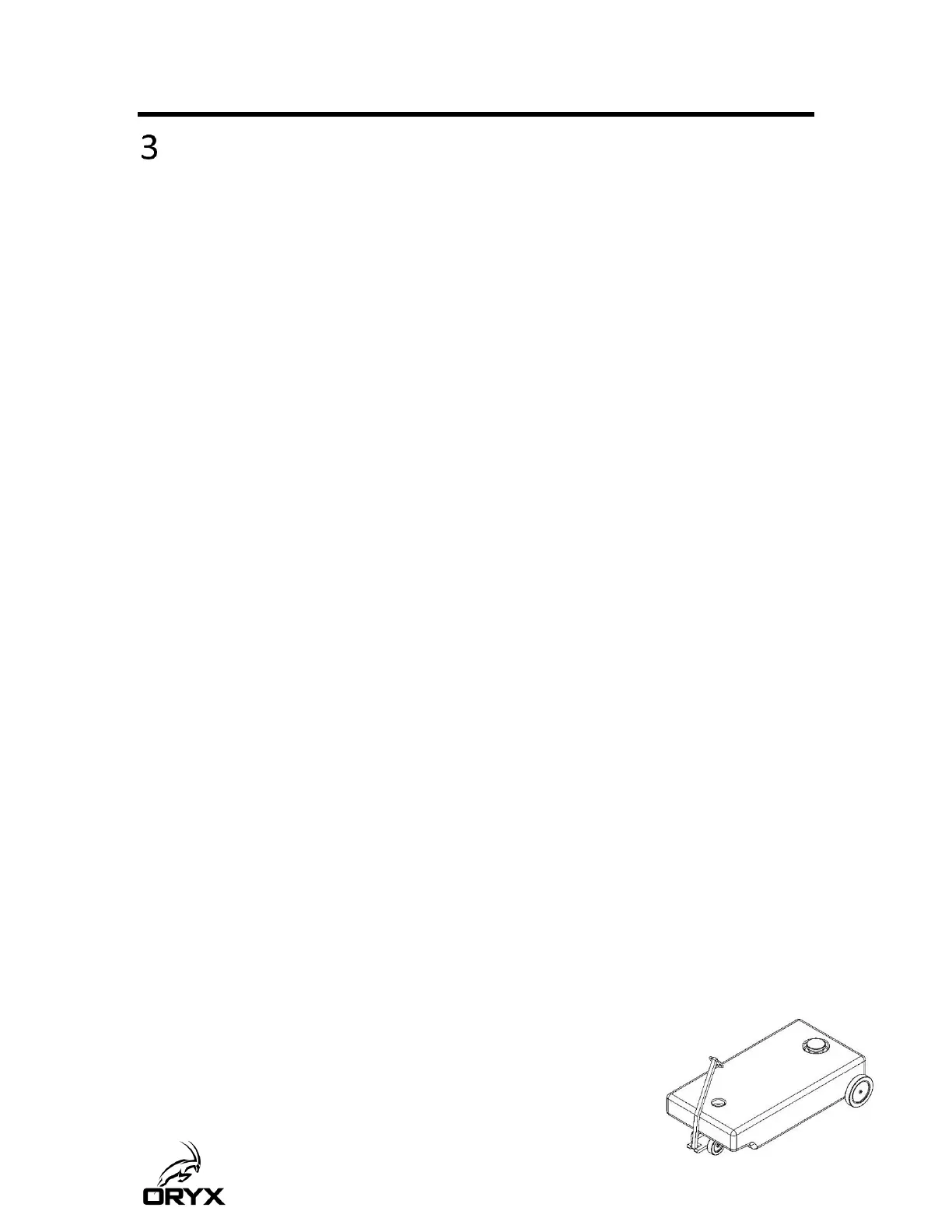

• Use of a graywater tote facilitates draining the cleaning tank
and provides transport and/or storage of the effluent for
later disposal.
