Control panel

1 Up/Down Arrows (Add/Subtract Time)

2 Set Timer

3 Start/Pause

4 No heat Selection

5 Temperature Selection

6 Silence Alarm

7 Alert Indicator

8 Low Water Level Indicator

9 High Water Level Indicator

10 Temperature LED Display

11 Pump Operating LEDs

12 Progress LEDs

13 Time Remaining LED Display

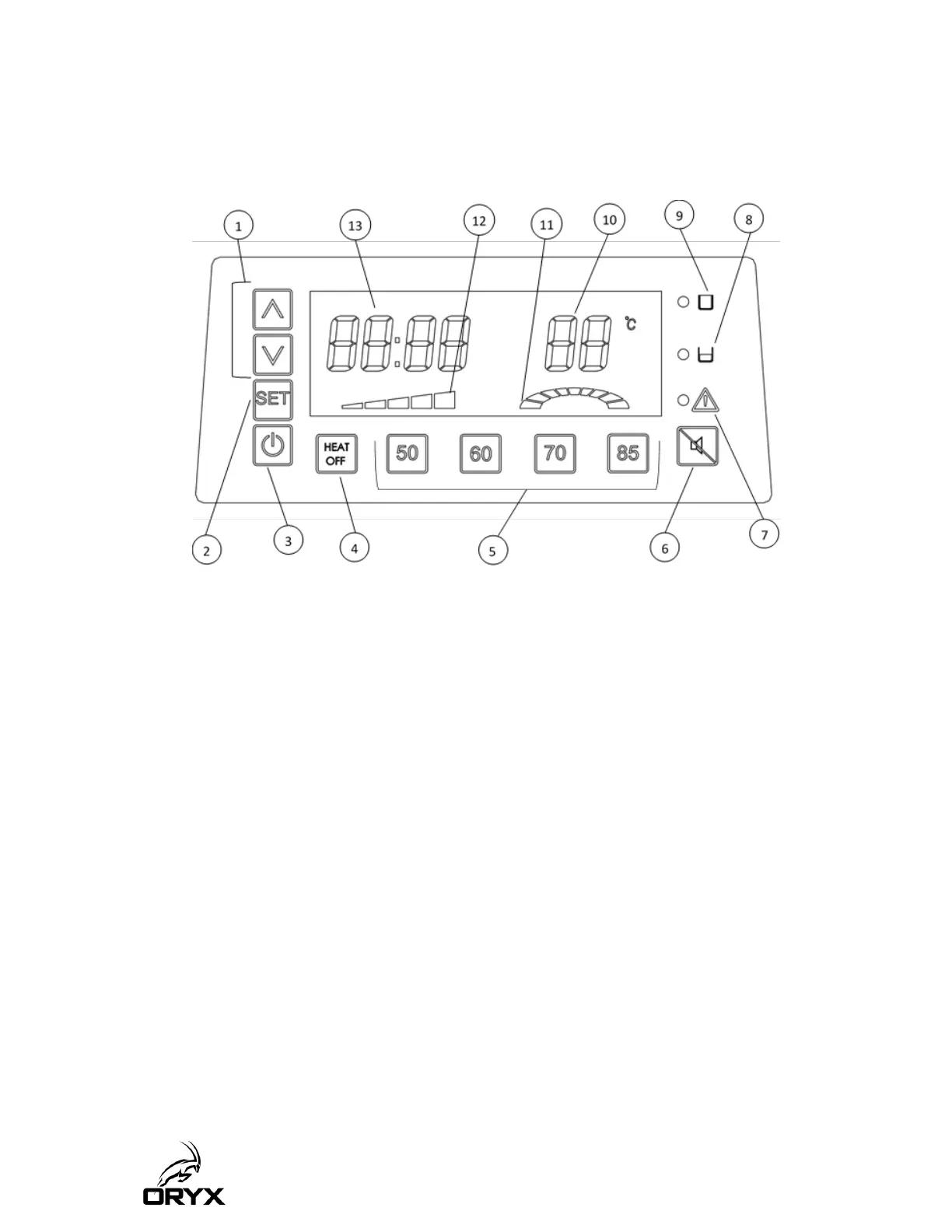

Figure 3 Control Panel
