Osburn 2000 - Page 11

Page 11
Installation and Operation Manual - 2000
ENGLISH

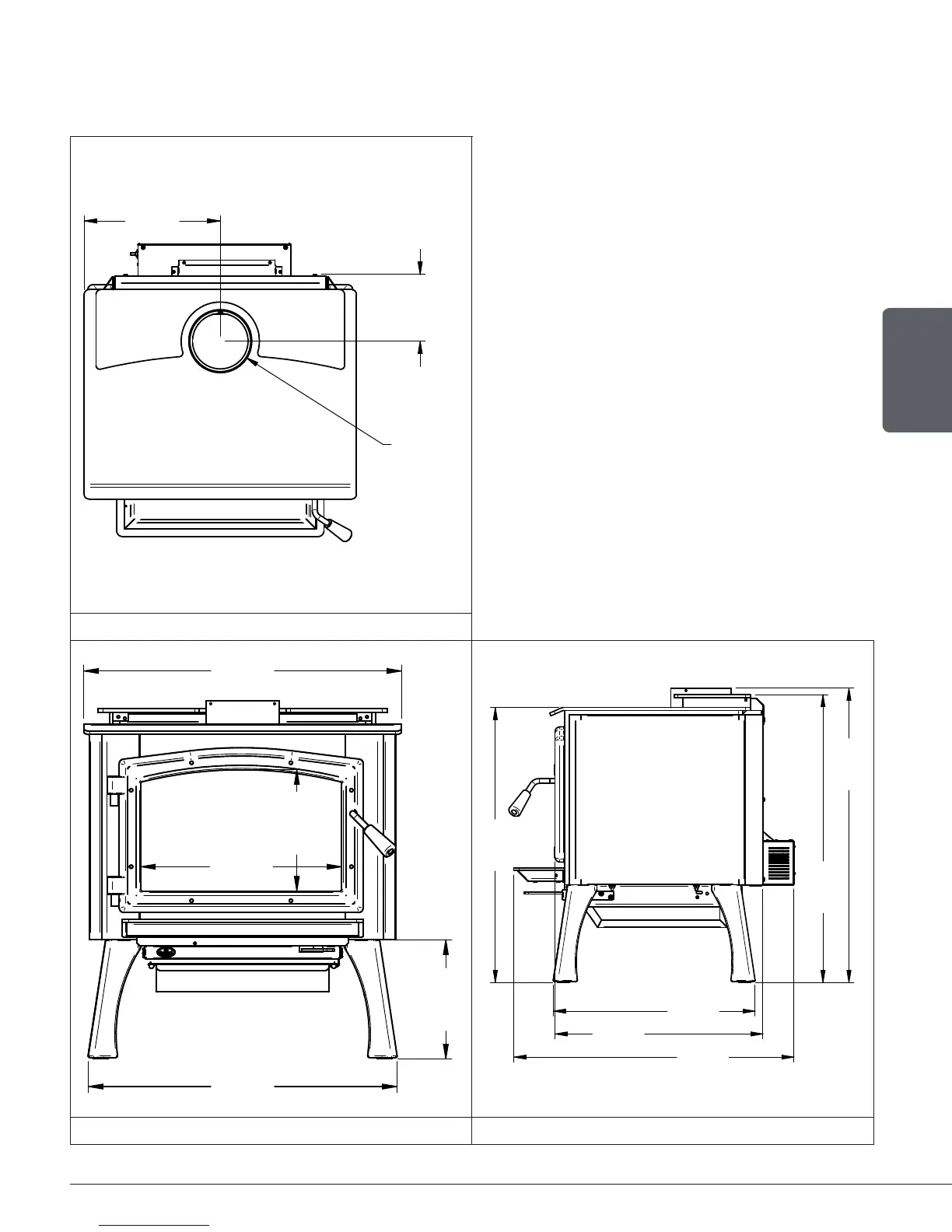

2.3.2 Stove Dimensions With Leg Kit OA10235 or OA10236
13 1/2"
343mm
6 5/8"
168mm
Ø
6"
150mm
Figure 4: Top view
26 1/4"
667mm
10 1/8"
257mm
17 1/8"
434mm
10 1/4"
262mm
27"
685mm
30 3/8"
773mm
29 3/4"
756mm
28 3/8"
722mm
20 7/8"
529mm
21 1/2"
546mm
29"
735mm
Figure 5: Front view Figure 6: Side view
