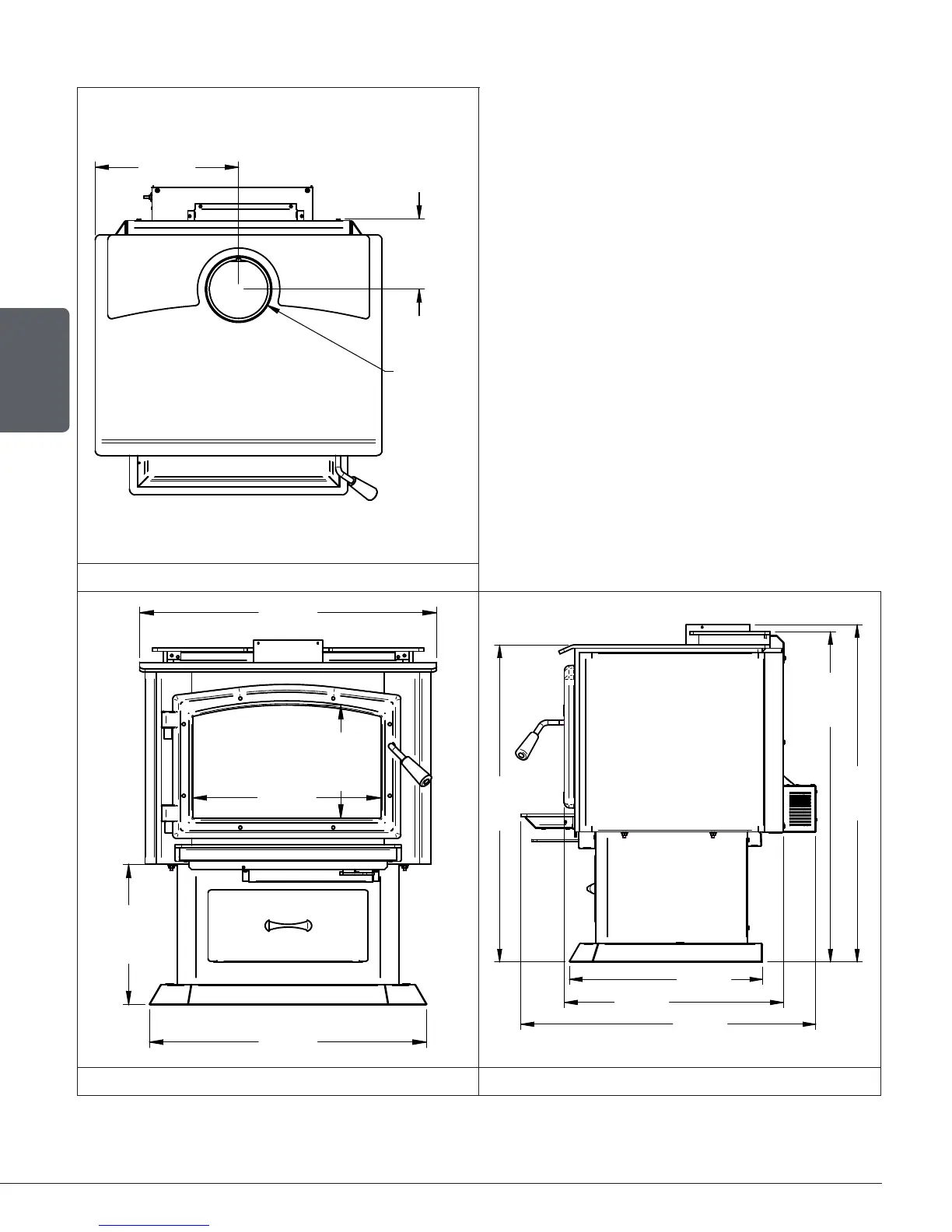

2.3.3 Stove Dimensions With Pedestal
13 1/2"
343mm
6 5/8"
168mm
Ø
6"
150mm
Figure 7: Top view
25 1/8"
640mm
12 3/4"
324mm
17 1/8"
434mm
10 1/4"
262mm
27"
685mm
19"
481mm
31 1/8"
790mm
32 3/8"
823mm
33 1/8"
840mm
21 1/2"
546mm
29"
735mm
Figure 8: Front view Figure 9: Side view
