Installation and Operation Manual - Osburn 3500
2.2 Dimensions
26 1/2"
674mm
11 3/4"
297mm
18 5/8"
473mm
22 1/2"
573mm
33 3/4"
857mm
27 1/2"
697mm
32 3/4"
832mm
34 3/4"
883mm
O
6"
153mm
11 1/2"
291mm
14 3/8"
366mm
28 7/8"
733mm

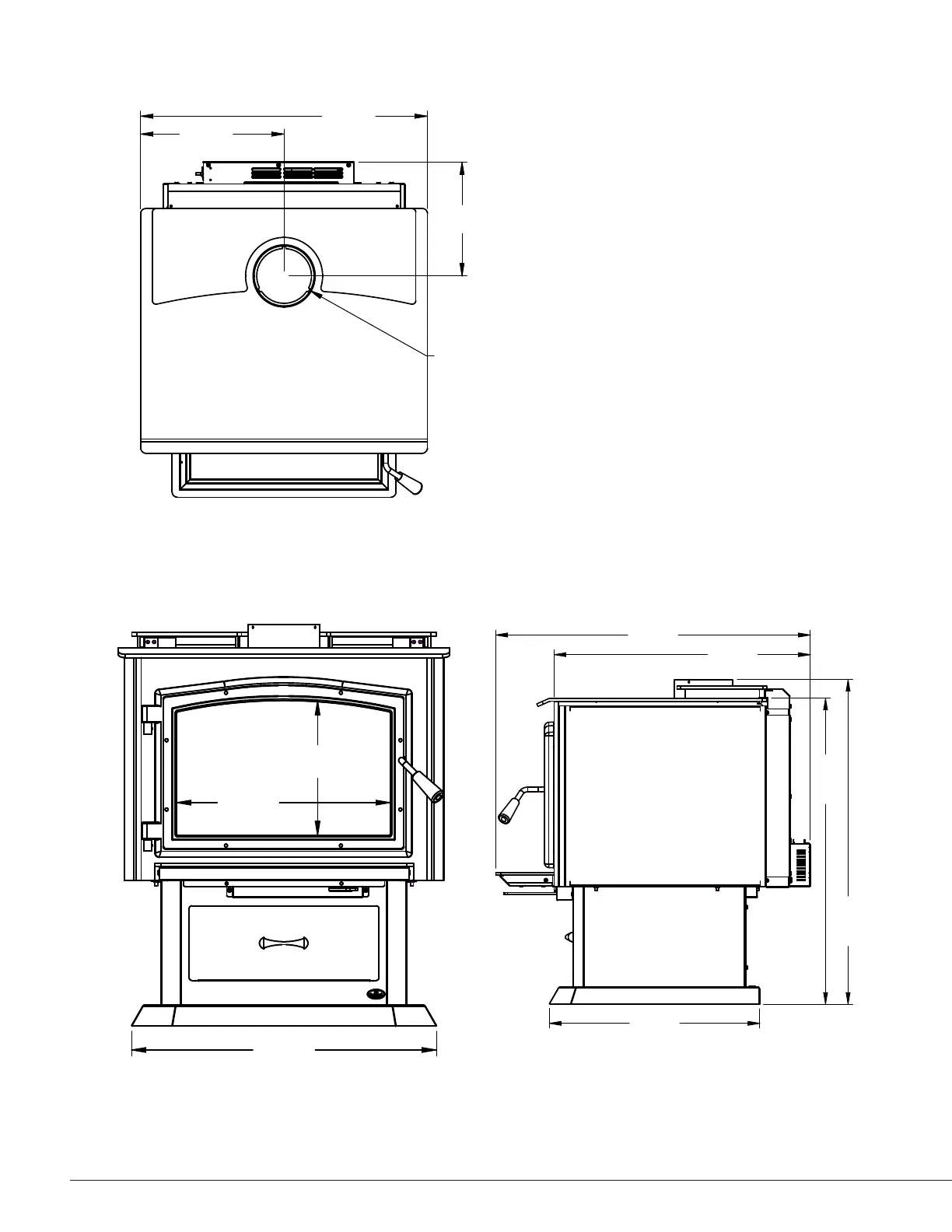

Figure 1: Top view
26 1/2"
674mm
11 3/4"
297mm
18 5/8"
473mm
22 1/2"
573mm
33 3/4"
857mm
27 1/2"
697mm
32 3/4"
832mm
34 3/4"
883mm
O
6"
153mm
11 1/2"
291mm
14 3/8"
366mm
28 7/8"
733mm
26 1/2"
674mm
11 3/4"
297mm
18 5/8"
473mm
22 1/2"
573mm
33 3/4"
857mm
27 1/2"
697mm
32 3/4"
832mm
34 3/4"
883mm
O
6"
153mm
11 1/2"
291mm
14 3/8"
366mm
28 7/8"
733mm
Figure 2: Front view Figure 3: Side view

Osburn 3500 Specifications

General

Maximum Output	110, 000 BTU/h
Firebox Volume	3.5 cu. ft.
Maximum Log Length	22 inches
Chimney Diameter	6 inches
Weight	550 lbs
Burn Time	up to 10 hours
Firebox Material	Steel
Door Material	Cast Iron
Efficiency	77%
Depth	33.375 inches
