OSD Audio NERO-ARC Series User Manual

NERO-ARC4/6/8/SUB INSTA UIDE NERO-ARC4/6/8/SUB INSTA UIDE
Set Up & Operation
Nero-ARC Series Products are designed to hang from the ceiling. A safety cable should be used when installing the
speakers to avoid personal injury and damage to the speaker.
1. Set the proper speaker setting for your application 6 position switch (8ohm-0-xW-xW-xW-xW).

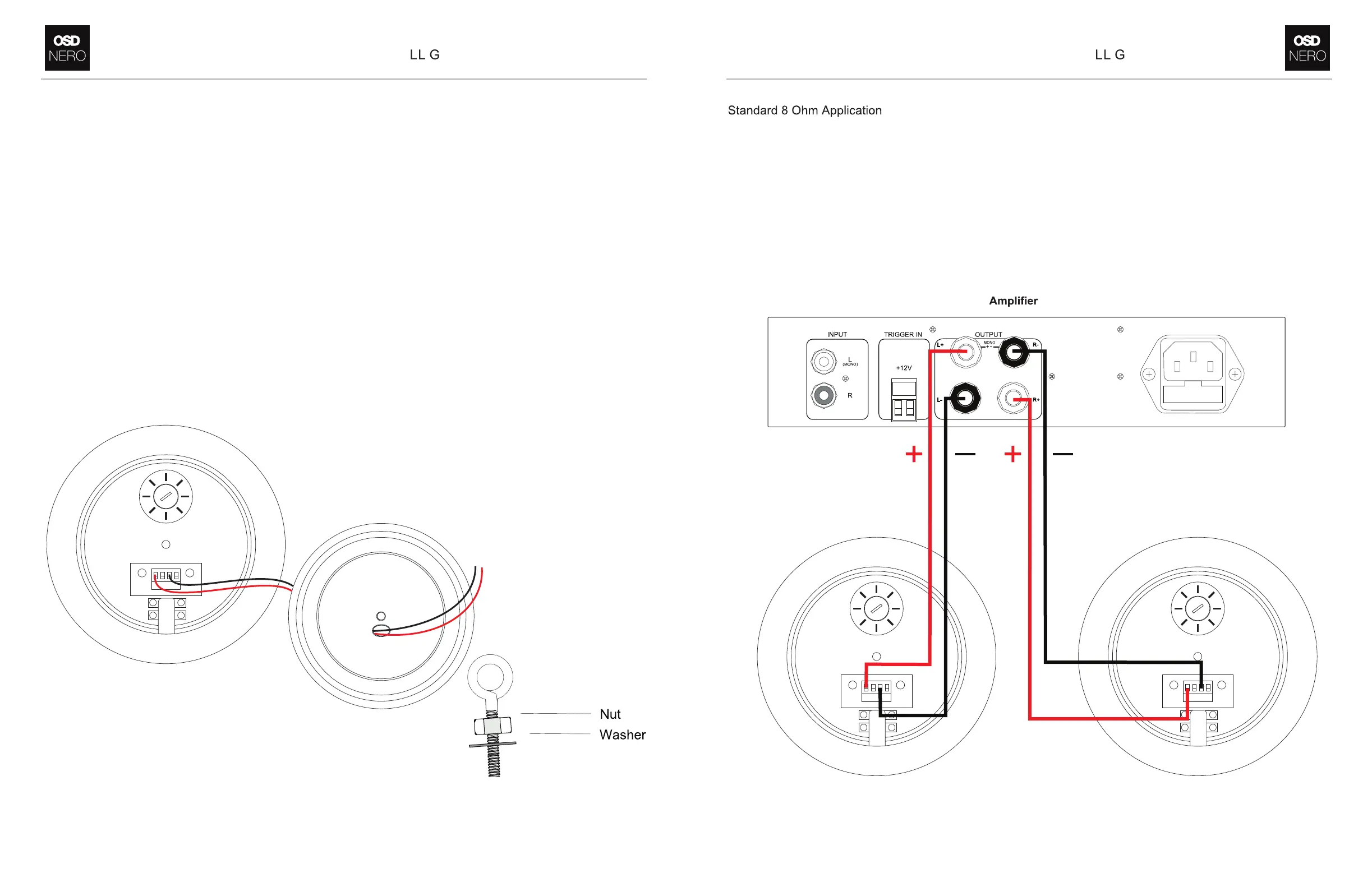

2. Install the top cover and fasten the provided eye hook, nut and washer to the top cover and speaker as illustrated below.
3. At each speaker location, route the speaker cable(s) hanging from the ceiling area through the top cover, and dress the
cables to the wire rope using plastic cable ties. Slide the speaker cables through the supplied back cover. Strip the ends
back to 1/8" to 3/16".
4. Connect the wires from the amplifier to the supplied terminal block, Using the IN terminals: red to + and black to -.
Please refer to the following pages for examples of various types of applications.
5. Attach the safety cable to the speaker.
6. If using the bracket to wall or ceiling mount, be sure to use the appropriate hardware to securely attach the speaker.
