Specifications
22
Specification Values
Connector BNC per IEC 169-8
Return Loss
>18 dB 5 to 270 MHz
>15 dB 270 MHz to 1.5 GHz
>10 dB up to 3 GHz
Maximum Signal
Level
800 mV pk-pk 10%
Signal Amplitude 800 mV pk-pk 10%
Overshoot <10%
Jitter <0.2 UI
Rise and Fall Time
<700 ps for SD
<270 ps for 1.5 Gb/s HD
<135 ps for 3 Gb/s HD
Extinction Ratio >8
Back Reflection <-14 dB
2. Product Outline

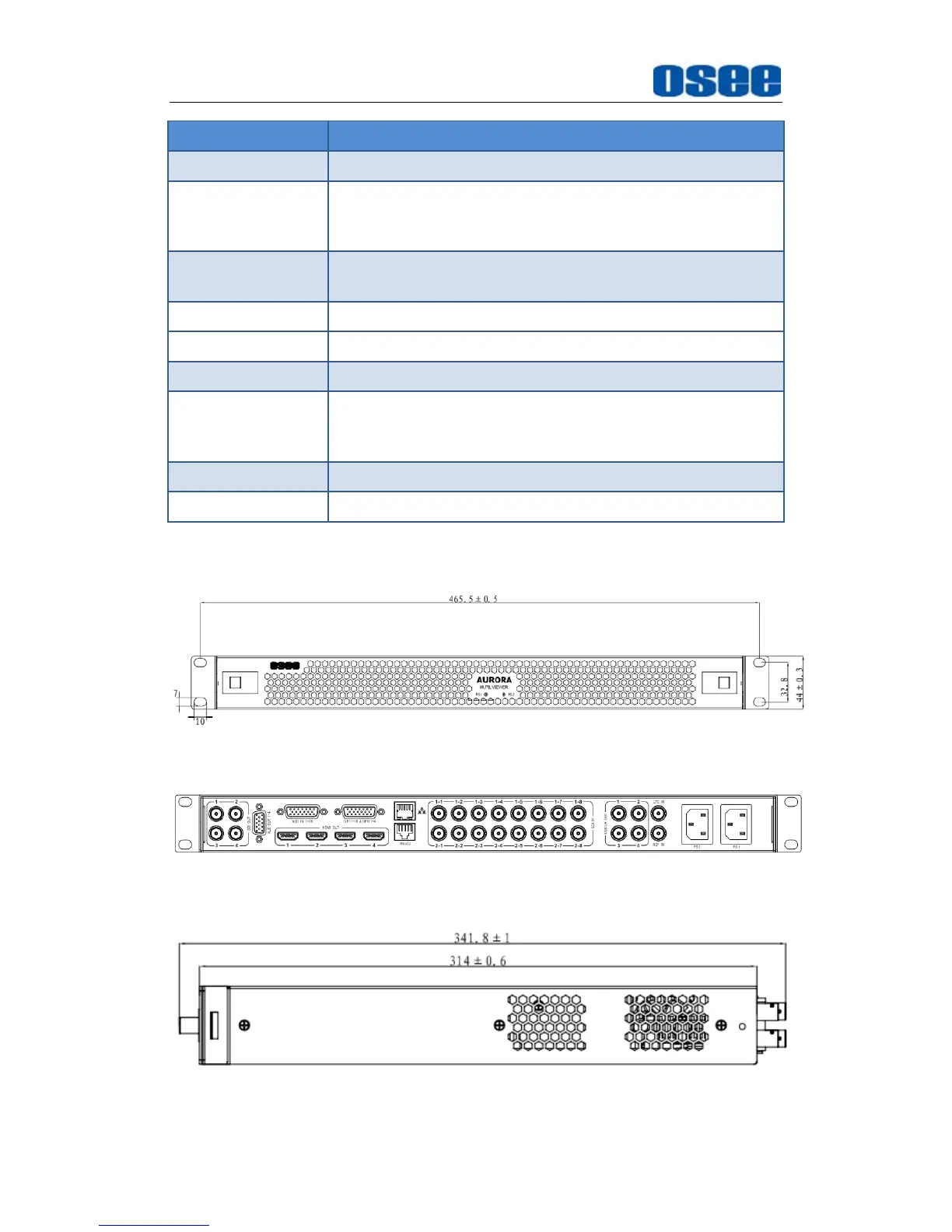

The outline of AURORA1600 is shown as in the following figures:
Figure 5-1 Front Panel(Unit: mm)
Figure 5-2 Rear Panel(Unit: mm)
Figure 5-3 Side View(Unit: mm)
