4.2.1 Arrangement of Rear Connectors
As shown in Figure 4.2-1, AURORA1600 provides the various connectors
for power supply, input, output and control, the details are as below:

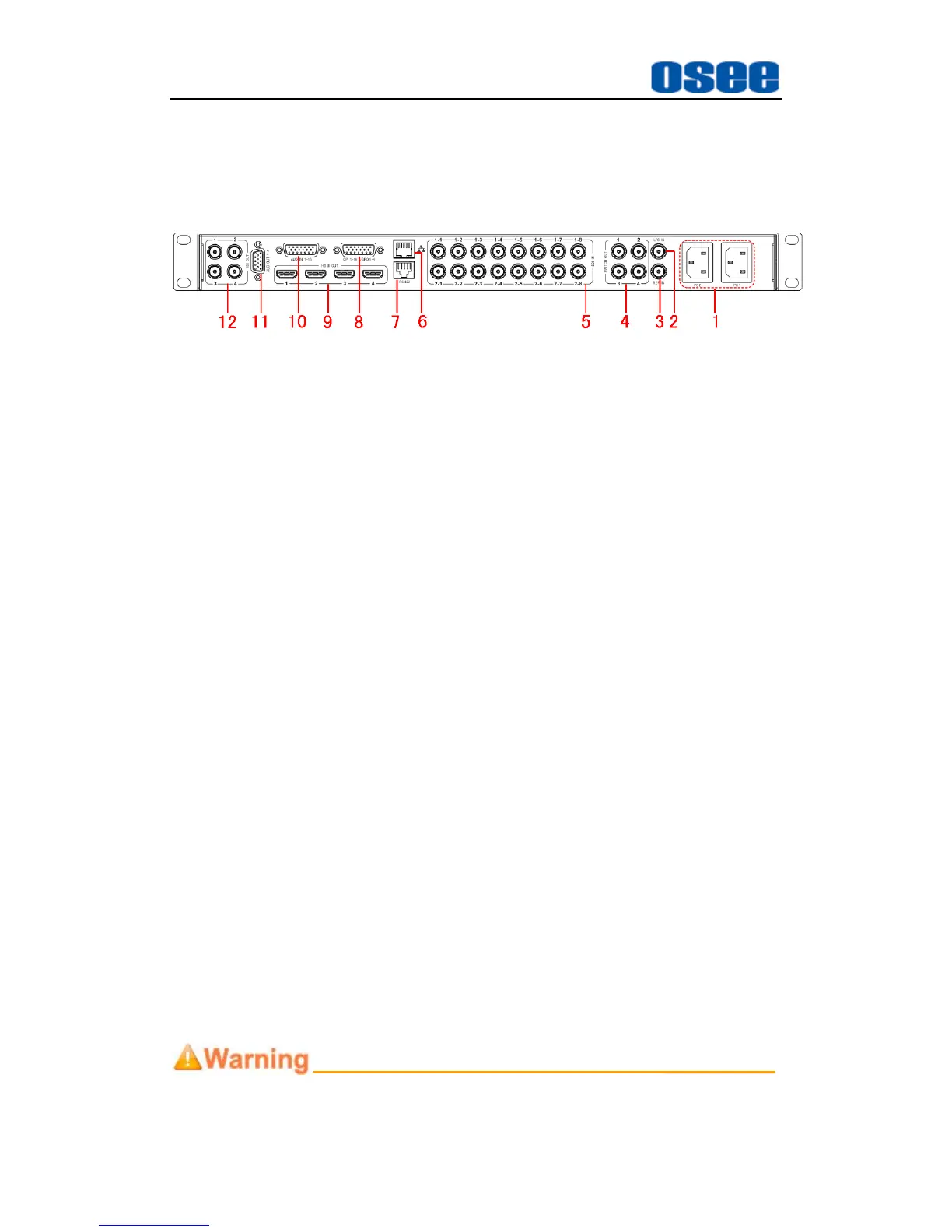

Figure 4.2-1 The Rear Connector of AURORA1600
1. Power Input: PS1, PS2
2. LTC IN
3. REF IN
4. Switch Output: SWITCH OUTPUT1~ SWITCH OUTPUT4
5. Video Input: SDI IN 1~16
6. Ethernet
7. RS422
8. GPI & GPO interface: GPI 1~16 & GPO 1~4
9. HDMI Output: HDMI OUT1~HDMI OUT4
10. Audio Input: AUDIO IN 1~16
11. Audio Output: AUDIO OUT 1~4
12. Video Output: SDI OUT 1~4
4.2.2 Operations of Rear Panel
The details of these interfaces at the rear panel are described as below:
1. Power Input
It is used to supply AC power. There are two power input interfaces, they
are redundant, and the specification is 100-240V, 50/60Hz, 100W. They
are labeled as PS1, PS2 separately. The corresponding indicators are at
the front panel. If the light is green, the device is powered on, and if the
light is off, the device is powered off.

Only use the adapter and the power cord specified by the manufacture for
