2. LTC Input (BNC)
It provides one LTC input interface to connect to a LTC timing device, it is
labeled as LTC IN. The LTC timing code is used to time the analog clock
timer or digital clock timer.
3. REF Input (BNC)
It provides one reference input interface, it is labeled as REF IN. Connect
a synchronous signal to realize gen lock to ensure the coincidence of
signals in time at a combining or switching point.
4. Video Output (BNC)
It provides four switch output interfaces, they are labeled as SWITCH
OUT1~SWITCH OUT4. Set any one of the input signals as a switch out
signal to loop it out by tool software.

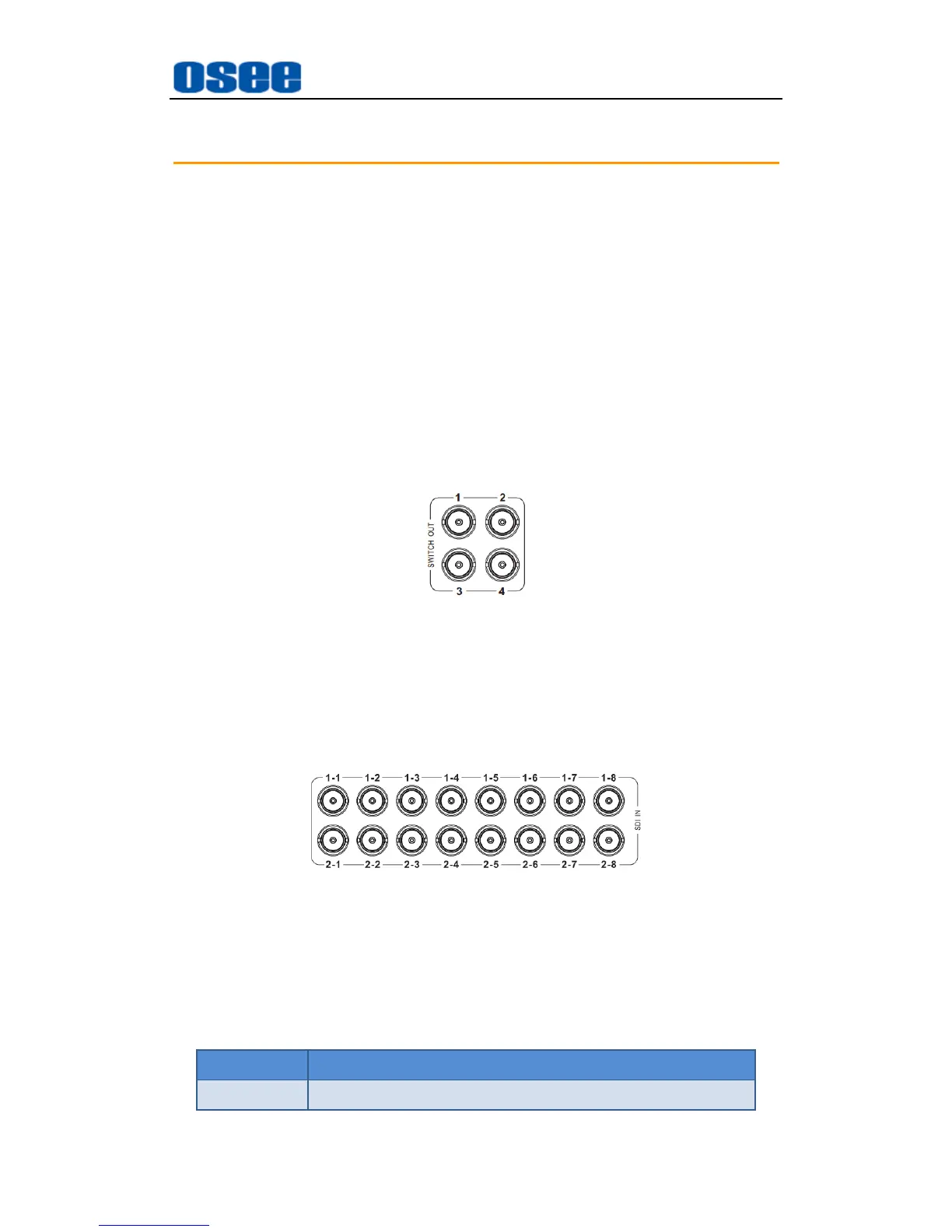

Figure 4.2-2 Video SWITCH Output Connector
5. Video Input (BNC)
It provides 16 SDI input interfaces, they are labeled as SDI IN 1~16. The
SDI input interfaces are adaptive to 3G/HD/SD-SDI video signals, and
supports embedded audio.
Figure 4.2-3 SDI Video input Connector
The SDI IN interface supports the following resolutions, as shown in Table
4-1:
Table 4-1 The Resolutions of the SDI Interfaces
Name Resolutions
Input formats SD-SDI: 525i60, 625i50
