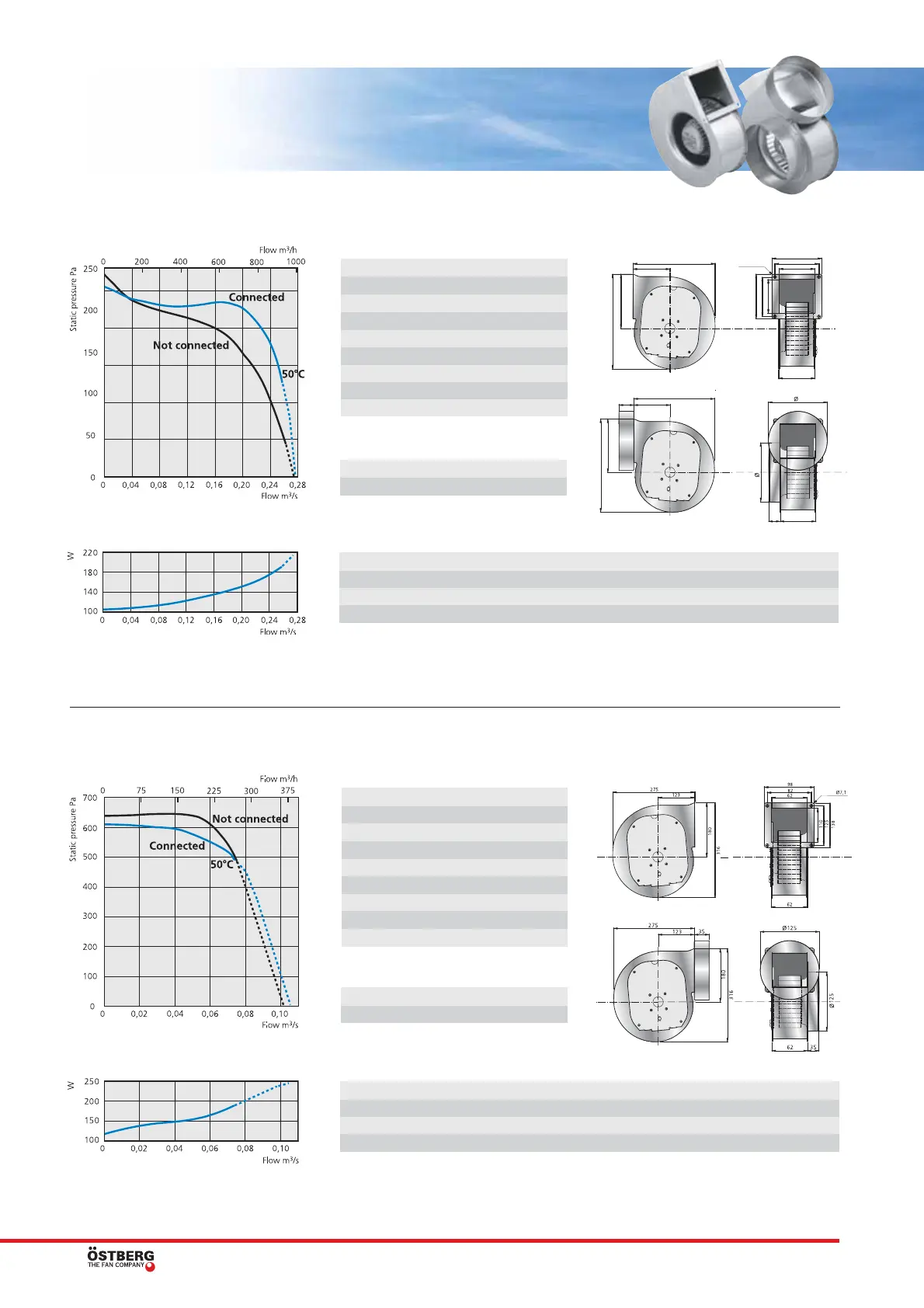

RFE 200 C
Single inlet radial fan with forward curved impeller. Single phase
RFE 200 P
Single inlet radial fan with forward curved impeller. Single phase
PRESSURE/FLOW
TECHNICAL DATA
SOUND DATA
INPUT/FLOW
RFE 200 C
DIMENSIONS (mm)
ACCESSORIES
Duct clamp, mounting bracket, safety grille, thermostat,
louvre & back draught shutter, transformer controllers
General fan facts, page 30-31.
RFE 200 C, 180 l/s 235 Pa L
pA
L
wA
tot dB (A) 63 125 250 500 1K 2K 4K 8K
Environment 56 63 43 47 57 54 58 57 54 46
Inlet 68 57 60 64 58 61 58 58 50
Outlet 72 57 58 66 64 67 62 63 57
156
250
300
140
160
176
140
320
135
230
384
Ø9,1
135
320
230
384
40
14040
250
250
10
PRESSURE/FLOW
TECHNICAL DATA
SOUND DATA
INPUT/FLOW
RFE 200 P
RFE 200 P, 75 l/s 530 Pa L
pA
L
wA
tot dB (A) 63 125 250 500 1K 2K 4K 8K
Environment 69 76 39 45 59 67 69 73 68 62
Inlet 77 60 65 68 72 70 68 68 64
Outlet 78 59 63 69 74 72 68 68 66
DIMENSIONS (mm)
ACCESSORIES
Duct clamp, mounting bracket, safety grille, thermostat,
louvre & back draught shutter, transformer controllers
General fan facts, page 30-31.
Voltage, V/Hz 230/50
Current, A 0,83
Input, W 190
Speed, rpm 1200
Wiring diagram 4040001
Capacitor, µF 6
Max.temp.
o
C50
Rotation direction Right
Pole number, motor 4
Voltage, V/Hz 230/50
Current, A 0,80
Input, W 190
Speed, rpm 2230
Wiring diagram 4040001
Capacitor, µF 4
Max.temp.
o
C50
Rotation direction Left
Pole number, motor 2
Connected = Connected on outlet.
Not connected = Not connected on outlet.
Connected = Connected on outlet.
Not connected = Not connected on outlet.
