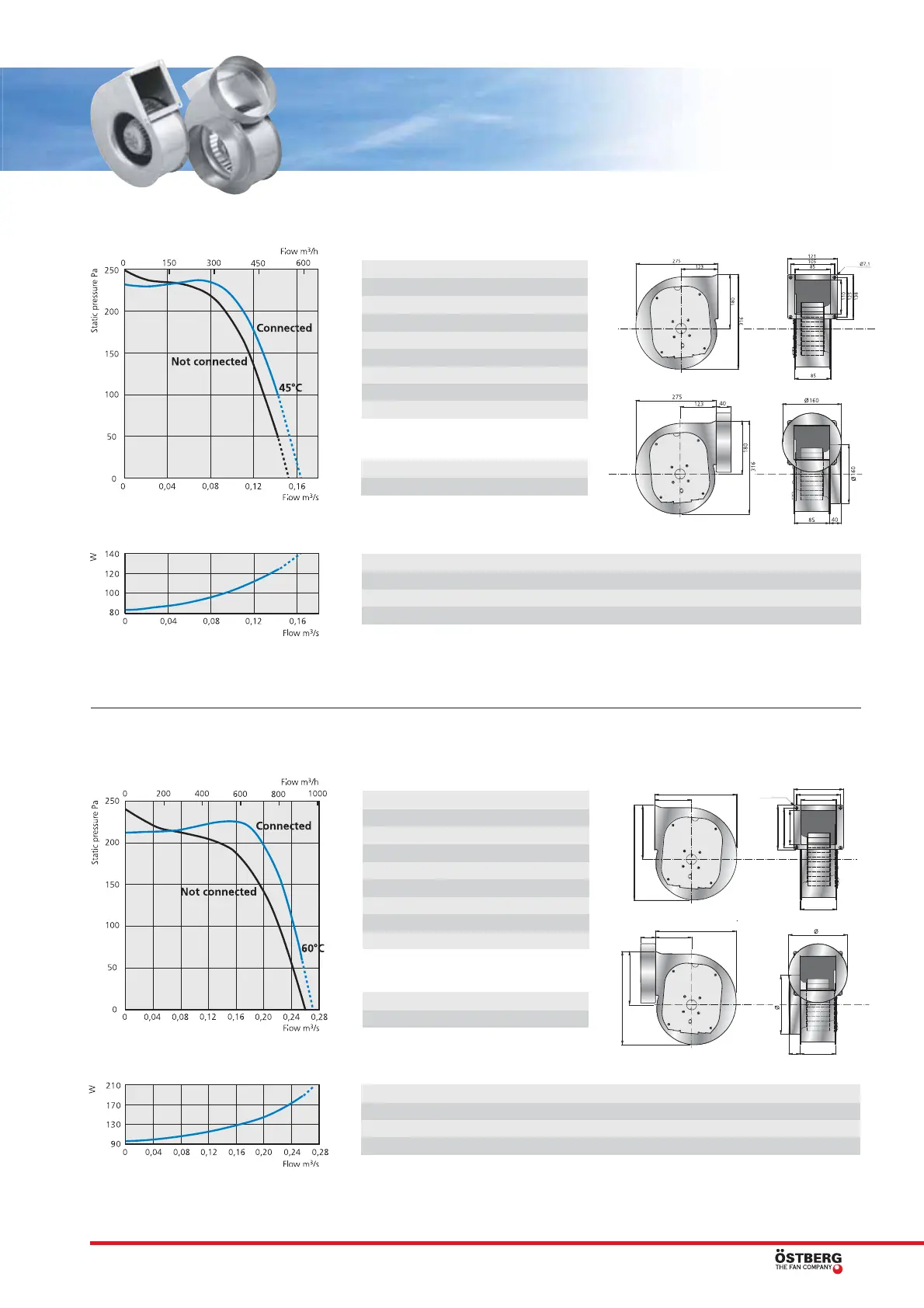

RFE 200 A
Single inlet radial fan with forward curved impeller. Single phase
RFE 200 B
Single inlet radial fan with forward curved impeller. Single phase
PRESSURE/FLOW
TECHNICAL DATA
SOUND DATA
INPUT/FLOW
RFE 200 A
RFE 200 A, 115 l/s 185 Pa L
pA
L
wA
tot dB (A) 63 125 250 500 1K 2K 4K 8K
Environment 58 65 32 37 52 58 60 60 57 52
Inlet 67 48 52 59 58 62 61 58 55
Outlet 70 48 52 60 62 66 633 62 58
DIMENSIONS (mm)
ACCESSORIES
Duct clamp, mounting bracket, safety grille, thermostat,
louvre & back draught shutter, transformer controllers
General fan facts, page 30-31.
Voltage, V/Hz 230/50
Current, A 0,53
Input, W 125
Speed, rpm 1300
Wiring diagram 4040001
Capacitor, µF 3
Max.temp.
o
C45
Rotation direction Left
Pole number, motor 4
PRESSURE/FLOW
TECHNICAL DATA
SOUND DATA
INPUT/FLOW
RFE 200 B
RFE 200 B, 175 l/s 220 Pa L
pA
L
wA
tot dB (A) 63 125 250 500 1K 2K 4K 8K
Environment 57 64 37 42 55 57 60 58 55 47
Inlet 68 49 57 64 59 62 59 57 50
Outlet 71 52 59 65 63 66 62 61 54
DIMENSIONS (mm)
ACCESSORIES
Duct clamp, mounting bracket, safety grille, thermostat,
louvre & back draught shutter, transformer controllers
General fan facts, page 30-31.
156
250
300
120
140
156
120
320
135
230
384
Ø9,1
135
320
230
384
40
12040
200
200
Voltage, V/Hz 230/50
Current, A 0,81
Input, W 185
Speed, rpm 950
Wiring diagram 4040001
Capacitor, µF 6
Max.temp.
o
C60
Rotation direction Right
Pole number, motor 4
Connected = Connected on outlet.
Not connected = Not connected on outlet.
Connected = Connected on outlet.
Not connected = Not connected on outlet.
