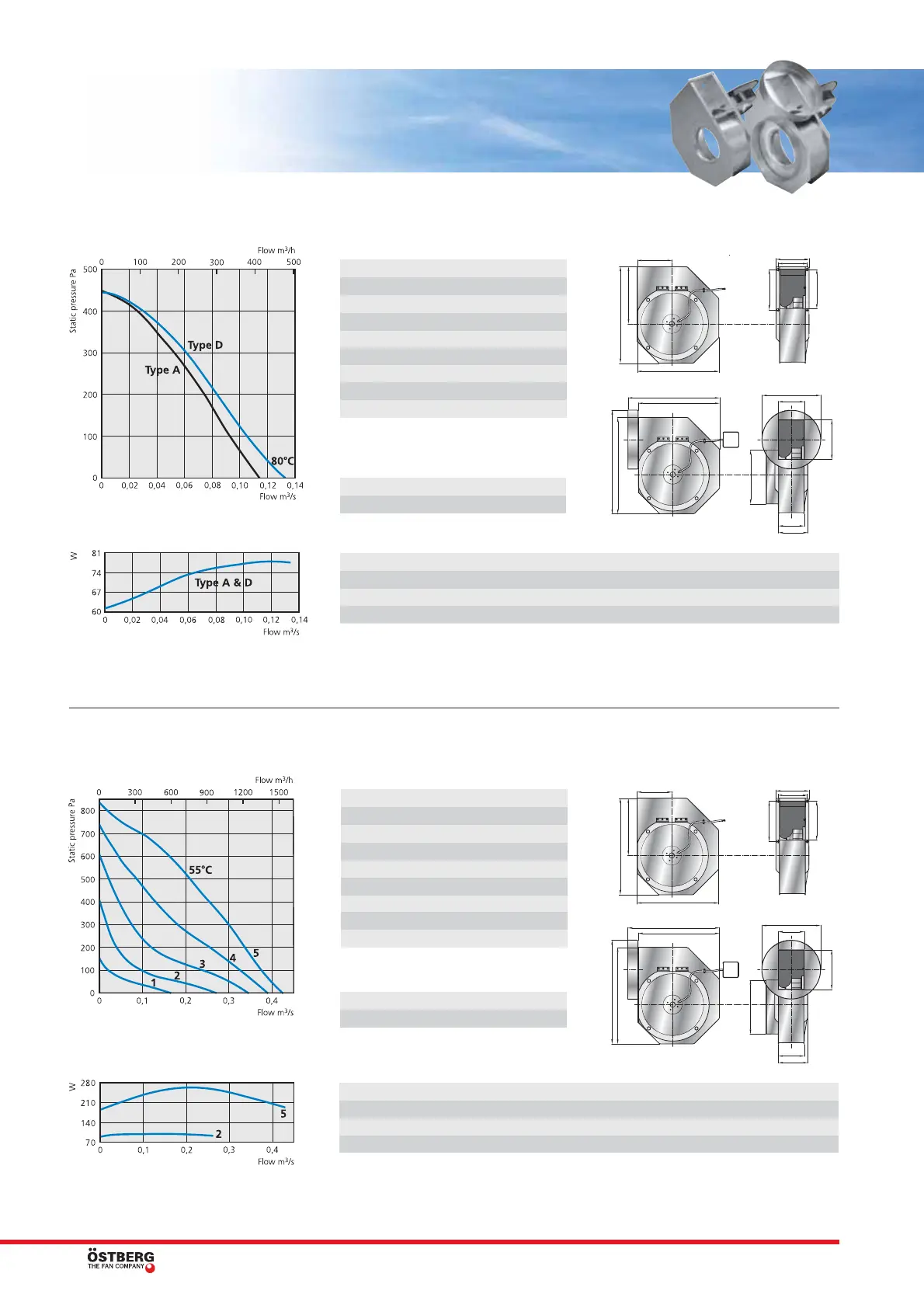

OSTBERG RF - RBE 190 C and RBE 280 C Specifications; RBE 190 C; RBE 280 C

24
RBE 190 C
RBE 280 C
Single inlet radial fan with backward curved impeller. Single phase
PRESSURE/FLOW
TECHNICAL DATA
SOUND DATA
INPUT/FLOW
RBE 190 C
RBE 190 C, 70 l/s 260 Pa L
pA
L
wA
tot dB (A) 63 125 250 500 1K 2K 4K 8K
Environment 58 65 30 35 56 59 60 61 53 46
Inlet 70 50 56 64 66 62 60 53 48
Outlet 71 50 57 65 68 66 61 60 51
DIMENSIONS (mm)
ACCESSORIES
Duct clamp, mounting bracket, safety grille, thermostat,
louvre & back draught shutter, transformer controllers
General fan facts, page 30-31.
Voltage, V/Hz 230/50
Current, A 0,34
Input, W 78
Speed, rpm 2520
Wiring diagram 4040001
Capacitor, µF 2
Max.temp.
o
C80
Rotation direction Right
Pole number, motor 2
PRESSURE/FLOW
TECHNICAL DATA
SOUND DATA
INPUT/FLOW
RBE 280 C
RBE 280 C, 220 l/s 480 Pa L
pA
L
wA
tot dB (A) 63 125 250 500 1K 2K 4K 8K
Environment 69 76 46 57 68 70 71 69 66 61
Inlet 77 61 64 72 71 70 69 67 63
Outlet 83 60 67 71 77 74 79 73 68
DIMENSIONS (mm)
ACCESSORIES
Duct clamp, mounting bracket, safety grille, thermostat,
louvre & back draught shutter, transformer controllers
General fan facts, page 30-31.
Voltage, V/Hz 230/50
Current, A 1,15
Input, W 265
Speed, rpm 2605
Wiring diagram 4040001
Capacitor, µF 8
Max.temp.
o
C55
Rotation direction Right
Pole number, motor 2
Connected = Connected on outlet.
Not connected = Not connected on outlet.
