6 Cup glass Jar Assembly

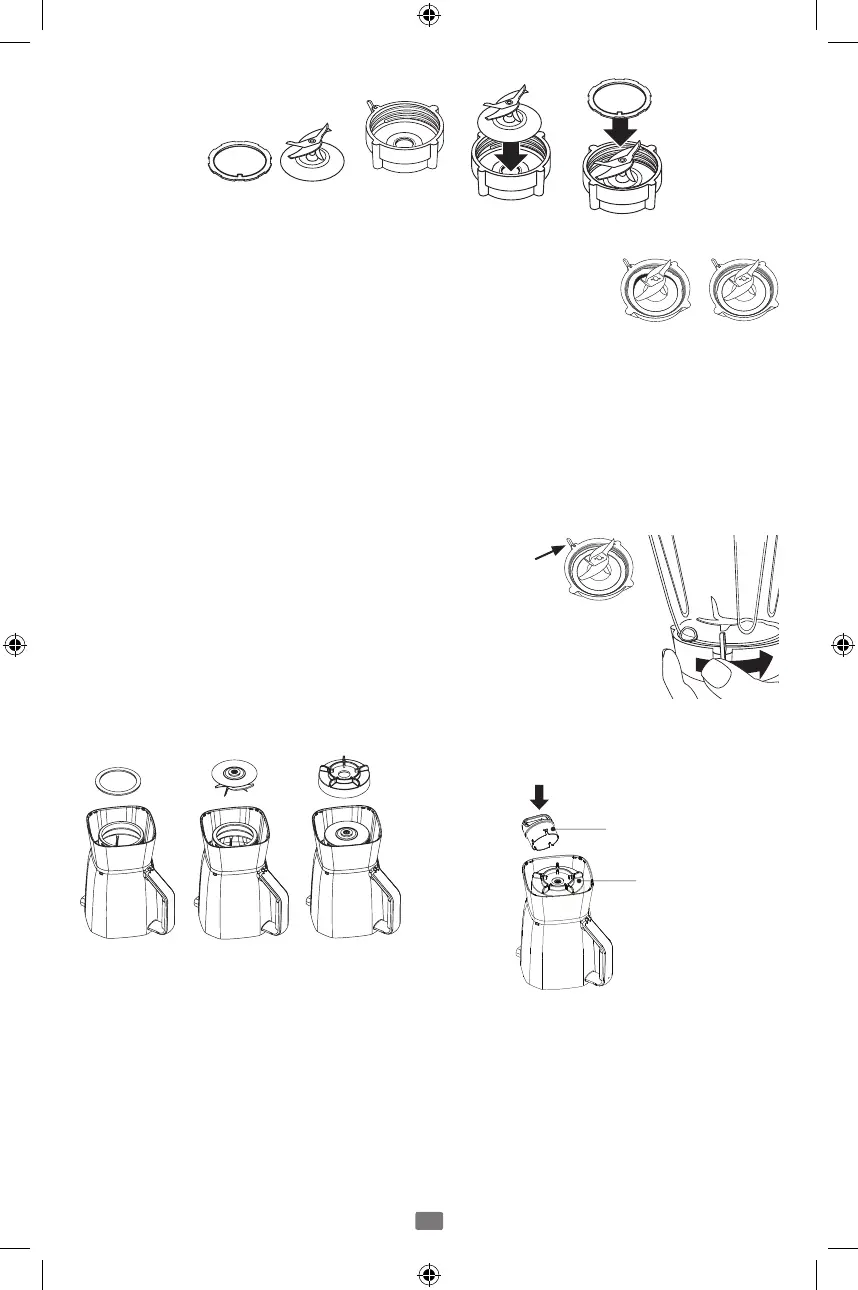

1. Place Blade into Threaded Jar Bottom (Fig.1).
2. Place sealing ring over blade assembly. Carefully press
and tuck sealing ring into locking groove (Fig2).
3. Ensure the locking sealing ring is fully and evenly
tucked in place and holding the blade assembly to the
threaded jar bottom. For correct assembly see (Fig3).
4. Install the Integrated Blade Assembly onto the Jar. Turn clockwise to tighten.
Be sure the Integrated Blade Assembly is tightened to the jar before using.
NOTE: For proper installation onto Blender Motor base, make sure locking
lever rotates past the anti-rotation tabs on the Blender jar or smoothie cup.
See (Fig4).
CAUTION: If Locking Lever is damaged or missing, do not operate blender,
and contact Customer Service for a replacement.
5. Put the ingredients into the jar.
6. Secure the lid and filler cap.
7. Place the jar onto the base.
8. Plug the power cord into a standard household
120/127-volt, 60 hz. AC outlet. You are now ready to start.
CAUTION: ALWAYS PLACE HAND ON CONTAINER COVER
WHILE OPERATING BLENDER.
8 Cup Tritan
TM
Jar Assembly
1. Install the sealing ring over the blade.
2. Turn the jar upside down and place it on a flat and stable surface.
3. Turn the blade with sealing ring upside down and place into the bottom of the jar.
4. Install the threaded jar bottom over the blade assembly. Turn clockwise to
tighten. Be sure the threaded jar bottom is tightened to the jar before using.
5. Choose a recipe from the recipe book provided.
6. Put the ingredients into the jar.
7. Secure the lid and filler cap.
8. Slide the jar onto the base.
Fig1
Fig4
Fig2
Locking
Sealing Ring
Threaded Jar
Bottom with
locking lever
Fig3
Incorrect Correct!
Blade
Locking Lever
Filler Cap
Jar Bottom
Note: The filler cap can be used as a tool to
tighten or remove the threaded jar bottom.
