OTC Tools 1543 - Installing the Drum

Sheet No.
Issue Date: Rev. C January 24, 2017
© Bosch Automotive Service Solutions Inc.
Parts List & Operating Instructions Form No. 526444
2 of 2
Installing the Drum
1. Flip the hook into the drum hub opening.
2. Pull back and push down on the dolly handle to lift the drum.
3. Roll the drum dolly to the brake assembly.
4. Raise or lower the drum by moving the dolly handle up or down, or by turning the crank handle.
5. Install the brake drum on the brake assembly only until the drum aligns with and is flush with the studs.
Flip the hook out of the hub opening. Note: If you push the brake drum too far onto the brake assembly,
you can't get the hook out of the hub opening.
6. Complete the drum installation according to the instructions in the vehicle service manual.
7. Remove the drum dolly by tipping the handle up and pulling the dolly away.
Operating Instructions continued
1
2
3
4
5
6
8
4
7
10
9
11
12
13
14
15
16
17
18
19
20
21
22
15
23
24
25
26

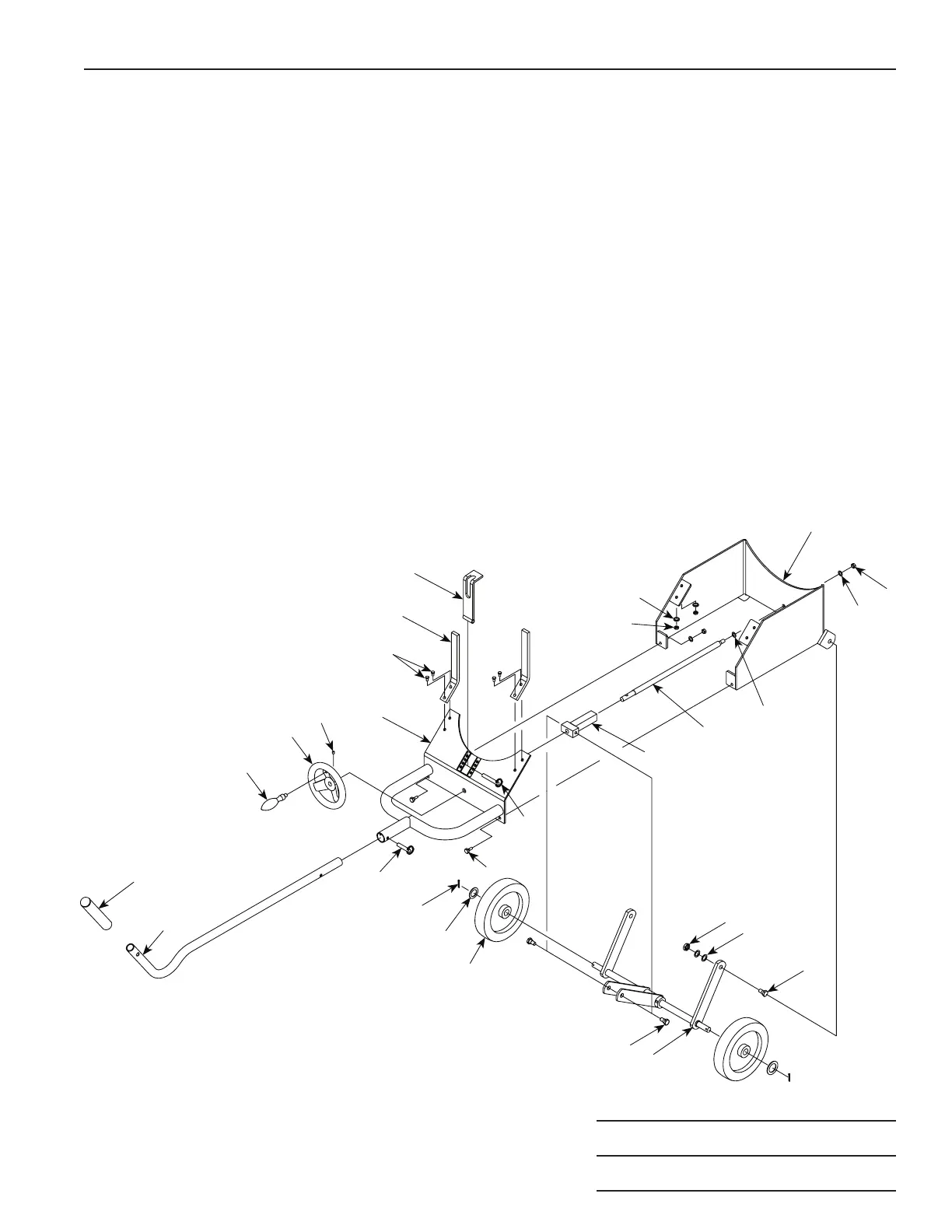

Parts List
