OTT Hydrolab DS5 - 3.3 Power Options

16
Installation
3.3 Power Options
A logging multiprobe can be powered by several sources:
• The DS5 and DS5X have an optional internal battery pack (IBP) holding 8 size C
alkaline batteries.
• The MS5 has an optional internal battery pack holding 8 size AA alkaline batteries.
• Both multiprobes can use the external battery pack (EBP).
• Both multiprobes can use either of the following power supplies: the 110 VAC 12 VDC
power adapter or the 220 VAC 12 VDC power adapter.
• Both multiprobes can use a customer-supplied 12-volt deep cycle battery with
appropriate amp-hour capacity connected via the battery adapter or a cable with a
4-pin female metal shell connector.
• Both multiprobes can be powered using a Surveyor Datalogging Display, which is
equipped as a standard with a 7.2V, 3.5 Ah NiMH rechargeable battery.
Note: Multiprobes configured with the Self-cleaning Turbidity and one or more fluorescence sensors
(Chlorophyll a, Rhodamine WT, Blue-green Algae) require either an internal battery pack or an
external power source other than the Surveyor.

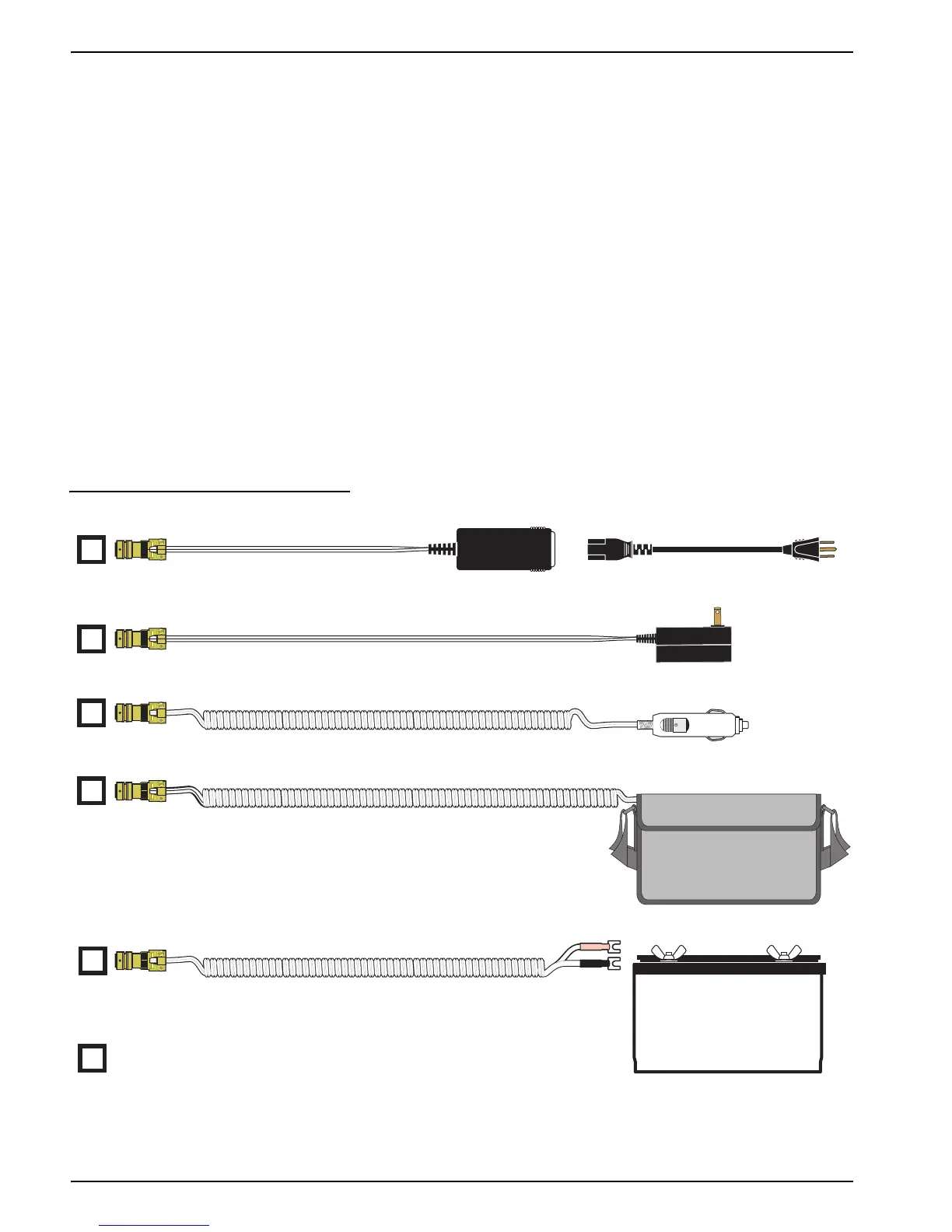

Figure 4 Power Options
*Use the correct power cord with the IEC 320 connector.
**To prevent damage, use a regulated 12 VDC adapter. An unregulated 12 VDC adapter may exceed the instrument voltage
limit rating.
P
Refer to Assembly Options.
P
P
P
P
P
110 VAC, 12 VDC Power Adapter (Cat. No. 013450)
220 VAC, 12 VDC Power Adapter (Cat. No. 013460)
Cigarette Lighter Adapter (Cat. No. 013210)
External Battery Pack
(110 VAC, 12 VDC - Cat. No. 011050)
(220 VAC, 12 VDC - Cat. No. 012480)
Battery Adapter (Cat. No. 011530HY)
