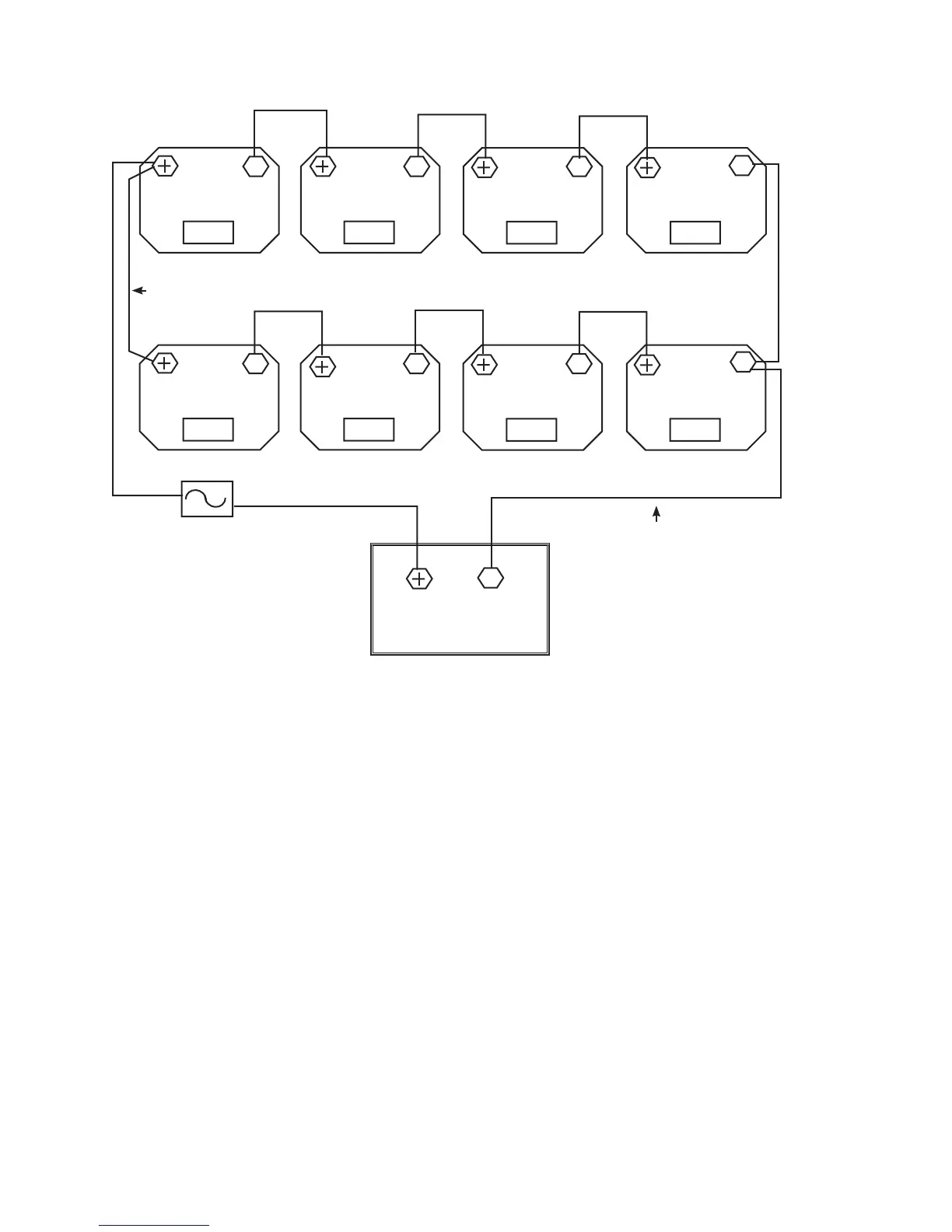

48 VOLT INVERTER/CHARGER
DC DISCONNECT (FUSE OR CIRCUIT
BREAKER)
-
12 VOLT
-
12 VOLT
-
12 VOLT 12 VOLT
-
-
12 VOLT
-
12 VOLT
-
12 VOLT 12 VOLT
SERIES STRING 1
SERIES STRING 2
SERIES STRING 2 CONNECTS
TO INVERTER/CHARGER’S
NEGATIVE TERMINAL
SERIES STRING 1 CONNECTS TO
INVERTER/CHARGER’S POSITIVE
TERMINAL
SERIES/PARALLEL/48 VOLT FX
