Outback Power Systems FX2024ET User Manual

29
GENERATOR AUTO START

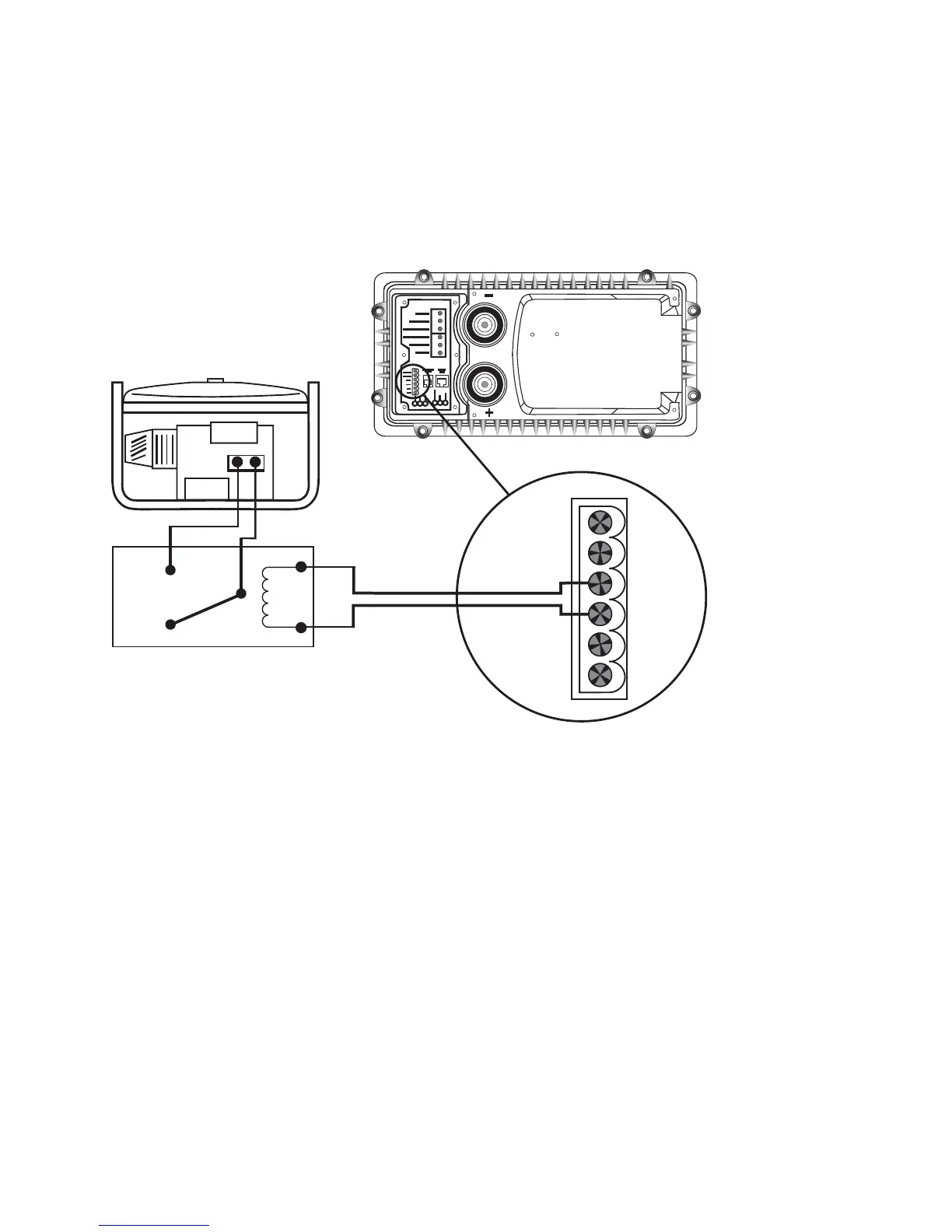

The following schematic shows how to hook up a relay that interfaces with the two-wire start
generator. Three-wire start generators require an adapter like the Atkinson GSCM available at
www.atkinsonelectronics.com.
Most 12V relays will work for generator starting.
Select one between 5 and 30 amp contacts. Relays
with gold-plated contacts are recommended.
12V RELAY
COIL
NO
NC
COM
INVERTER
ON/OFF
AUX +
AUX -
XCT -
XCT +
TWO WIRE START
GENERATOR
HOOK UP
GENERATOR
