ACCOPPIAMENTO MECCANICO DI DUE MIXER
PRO405
MECHANICAL COUPLING OF TWO PRO405
MIXERS

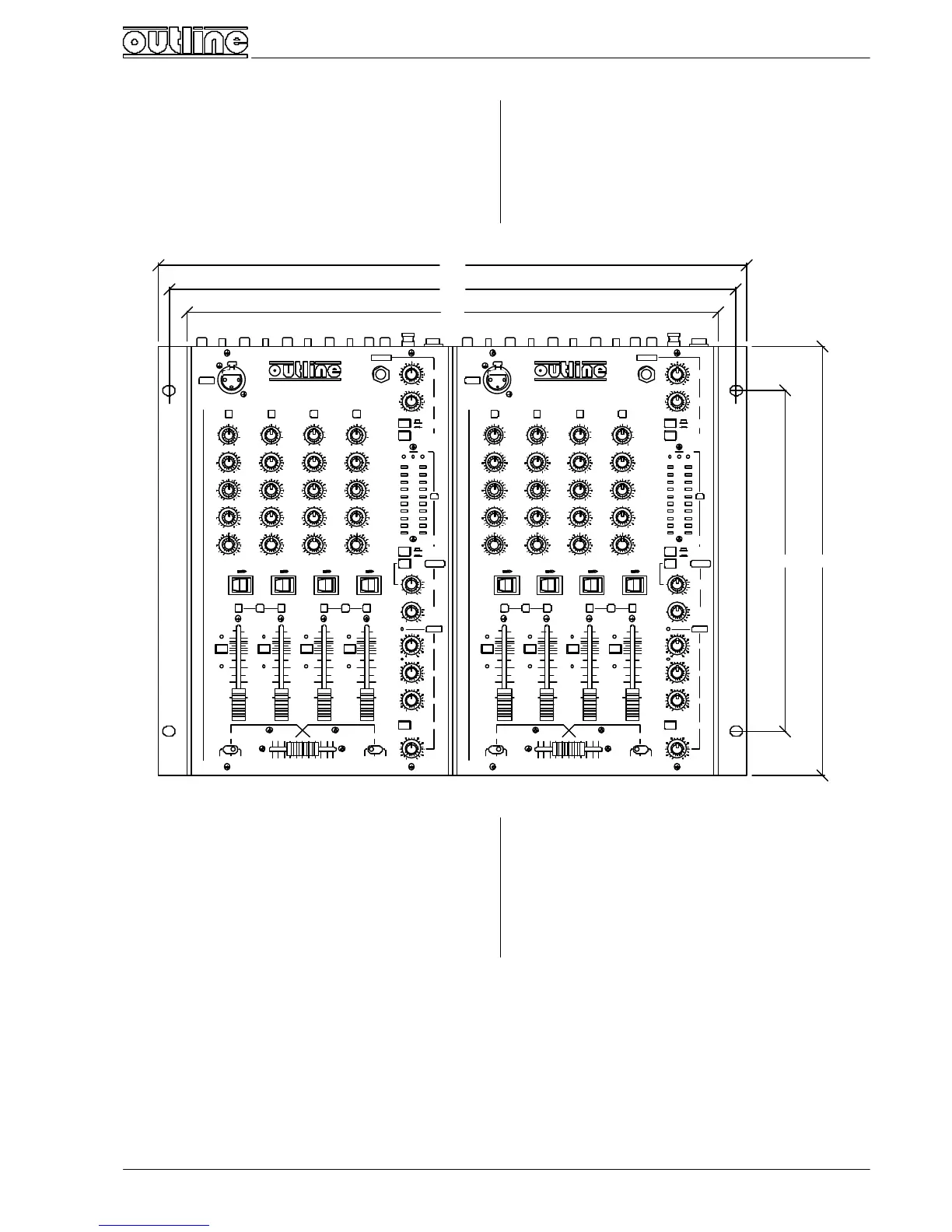

Le meccaniche del PRO405 sono state studiate per consentire
l’accoppiamento di due unità nel rispetto delle dimensioni
standard rack 19”.
The PRO405 cabinet dimensions have been studied in order to
obtain a coupling of two units in compliance with 19”
standard rack dimensions.
