Oval PC2201 - WIDTH Select Switch; OUTPUT Select Switch

E-935-1-E

(9)“WIDTH”Select Switch
Selects output pulse width.
“1:1” …… Pulses with 1:1 ON/OFF ratio
“0.25”…… Pulses 0.25ms±10% wide (2000Hz or lower)
“1” …… Pulses 1ms±10% wide (500Hz or lower)
“50” …… Pulses 50ms±10% wide (10Hz or lower)
(10)“OUTPUT”Select Switch
Selects the generator type for output pulses.
“OPTO” …… A simulated output of OPTO 01/02 generator circuit
“PG20” …… A simulated output of PG20M generator circuit
Coupling conditions are 30V dc and 20mA max. because it provides an open
collector output of transistors rather than a relay counterpart.
“PG30” …… A simulated output of PG30 generator circuit
“P.A.” …… A simulated output of PA04/05/45 or PG60A (E) generator circuit
“PG30S” …… A simulated output of PG30S generator circuit
“O.C.” …… A simulated output of FLOWPET NX or PG60A (E) generator circuit
“VOLT” …… A voltage pulse output from 8V internal power source
“PA11” …… A simulated output of PA11 generator circuit

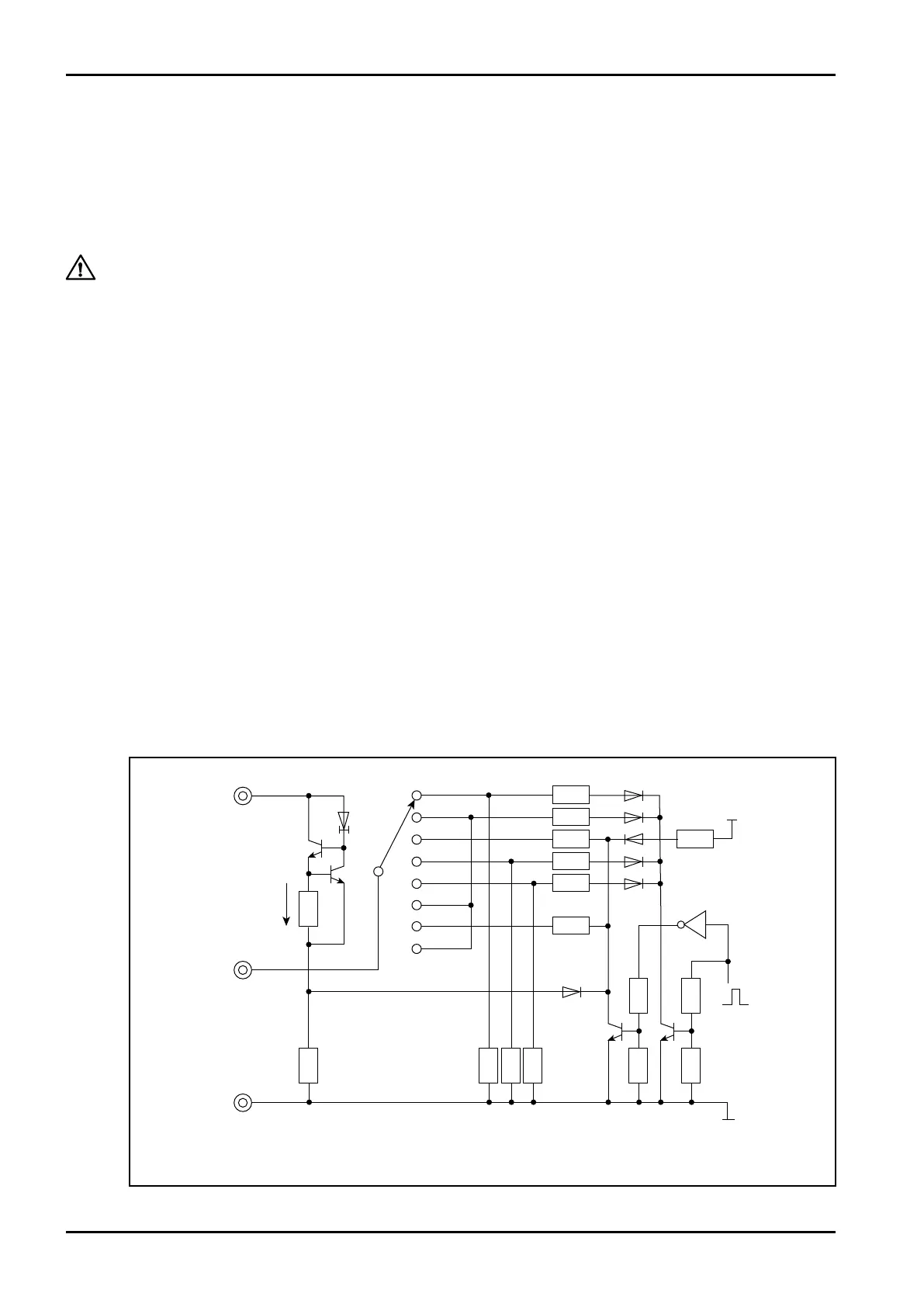

Simulated Output Circuit
SUP
SIG
0V
0V
30mA
27
240
7K5
5K6
1K2
5K1 5K1
100K 100K
OPTO
PG20
PG30
P.A
PG30S
O.C
VOLT
PA11
OUTPUT
5K1
8V
2K4
200
200
200
220
820
Figures in the box □ show the resistance values. (Examples: 100k→100kΩ, k5→.5kΩ)
Output frequency should be chosen within the conditions in brackets ( ) when you select a
particular fixed pulse width.
The ON/OFF ratio is 1/1 when the frequency is at maximum of the figure in the brackets ( ); the
OFF width becomes smaller progressively as the frequency exceeds that figure; at frequencies
twice that figure, or greater, pulses will overlap and no output will be produced: the "OUTPUT
COUNTER" will fail to count.
CAUTION:
