OVE ADENA - Step C: Mount Support Bar Components

INSTALLATION INSTRUCTIONS
10
B
1
E
F
D
2
B
D
AA
4
B
D
AA
5
E
F
D
6
F
7
3
E
F
D

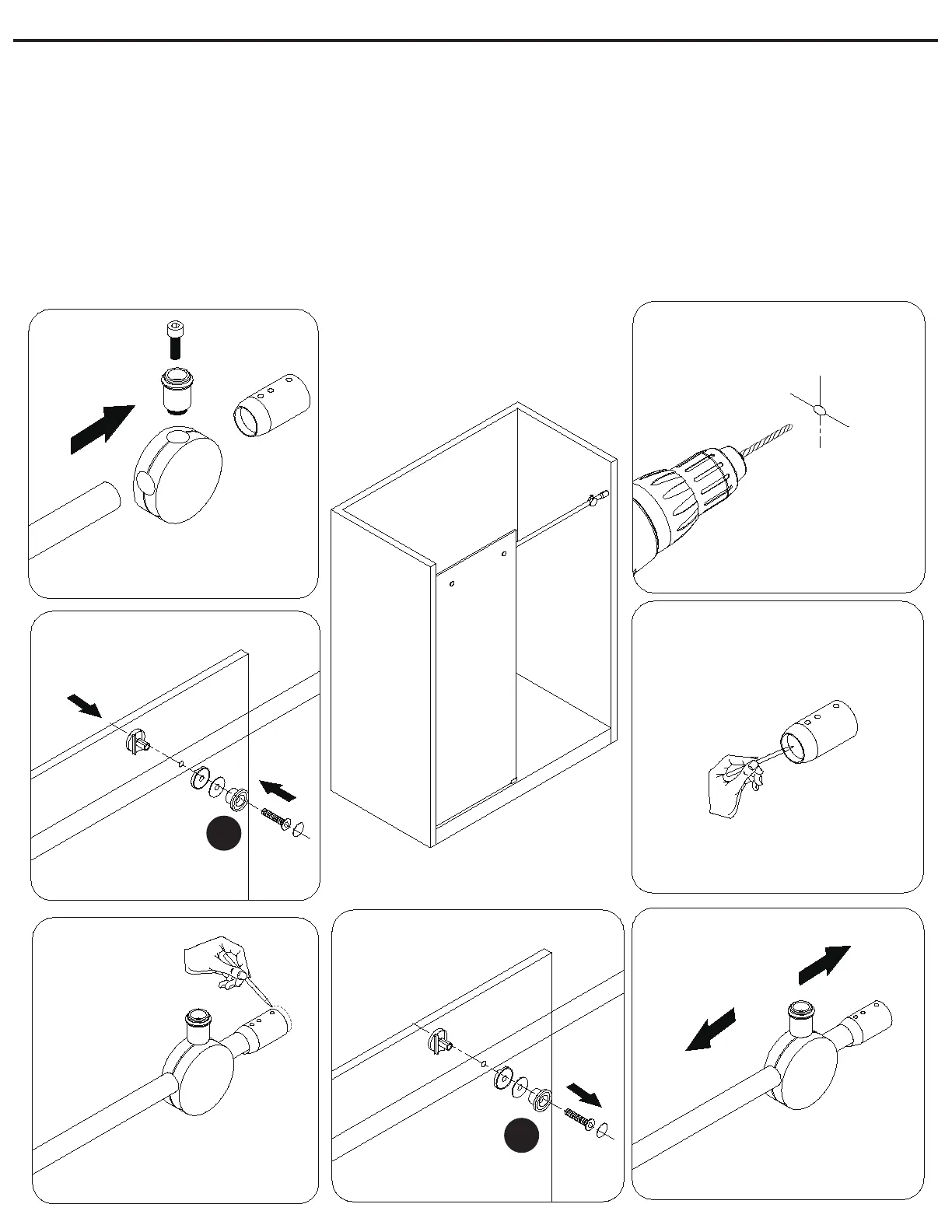

STEP C
1. Slide the two stoppers (E) on the bar (D), then mount the two bar supports (F) without tightening.
2-3. Temporarily install the bar (D) on the glass panel (B) using glass bracket (AA) and mark the position.
4-5. Temporarily remove the bar (D) from the glass panel (B) and remove the stoppers and bar supports (E&F).
6-7. Mark the position of the bar supports (F) and drill the holes.
