4.5.3 Electrical connection of the "R-Con" with actuators
Connect the wireless receiver to the 230 V network at the end,
i.e. after having carried out all cabling.
Before cabling the actuators, ensure that the wireless
receiver is disconnected from the power supply.
If the wireless receiver is energized, disconnect it from the
power supply.
Installation of the wireless receiver and all cabling must only be
carried out by a qualified electrician.
Risk of electric shock!
There is a risk of an electric shock if the wireless receiver is
connected to the 230 V network before having wired it up with the
actuators.
DANGER

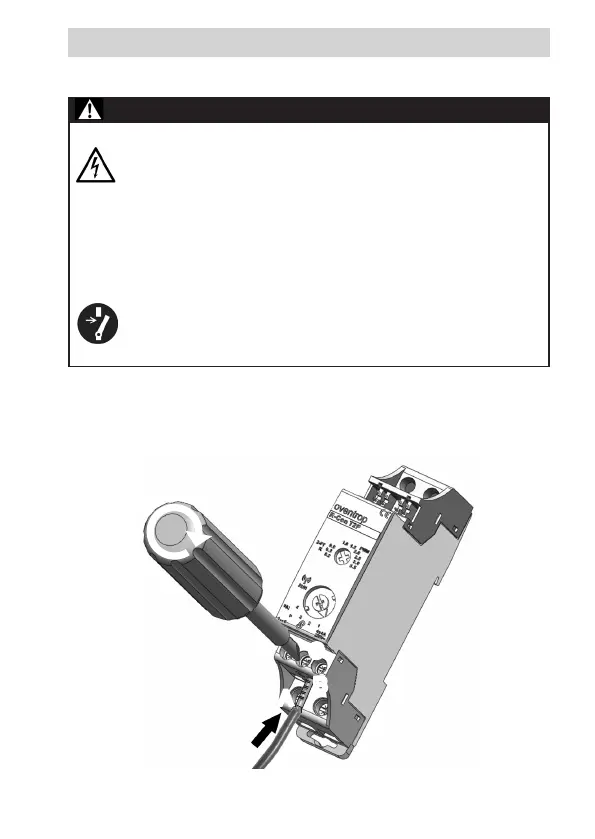

For the connection of an actuator to a control module, the end or the sleeve
of the cable (A) of the actuator is inserted into a terminal screw (B) of the
module from below and is xed with the front screw (C).
A
B
C
(Illustration 14)
