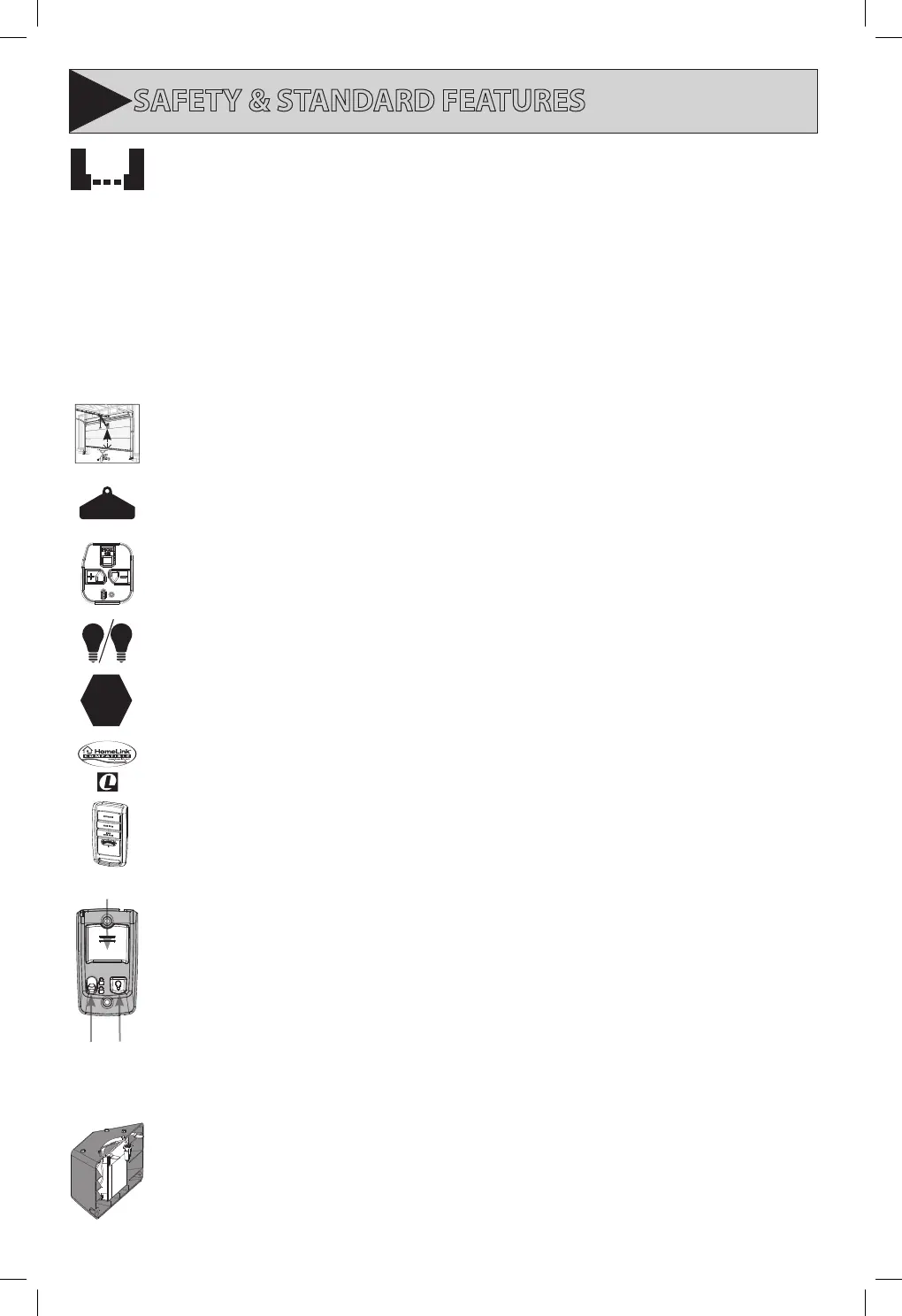

SAFETY & STANDARD FEATURES
2
1 & 2
34
Safe-T-Beam® (STB) Non-Contact Reversing System:
Puts an invisible beam across the door opening. The door stops and reverses to the full open position if anything
passes through the beam. LED indicator lights on the powerhead and on the STBs provide self-diagnostics if an
operational problems exists.
Safe-T-Beam® (STB) FUNCTION:
1. The Safe-T-Beam® has no eect on the door during an opening cycle.
2. If the Safe-T-Beam® detects an obstruction when trying to close the door, it will not allow the door to close.
3. When the garage door is closing, if Safe-T- Beam® is interrupted by a person or obstacle, the garage door will stop its
downward travel and reverse automatically to its fully opened position.
4. If the Safe-T-Beam® System fails, loses power, or is installed improperly, press and hold the wall console “open/close”
button until the door reaches its fully closed position. If you release the “open/close” button on the wall console during the
closing movement, the door will reverse automatically to its fully-opened position.
Door Detect™ Monitoring System:
Monitors the Safe-T-Beam® system to ensure proper functionality and will automatically stop and reverse a closing
door if a problem is detected.
Safe-T-Reverse® Contact Reversing System:
Automatically stops and reverses a closing door within two seconds of contact with an object.
Manual Emergency Release:
Manually releases door from door opener. Used during a power failure or other emergency to allow manual
opening and closing of door. DO NOT use emergency release cord to pull door!
SmartSet
®
Electronic Programming:
Easily adjust the programming to set limits and program new remotes.
Automatic Lighting System:
Dual Bulb lighting system supplies light for safer evening exits and entries. Turns ON when door is activated and
automatically turns OFF 4 minutes later.
CodeDodger® Encryption:
An encryption system that enhances the security of the door opener by continuously changing the access code
each time the remote is used. The door opener responds to each new code only once. An access code copied from
a working system and tried again, will not control the door opener.
Vehicle Compatible:
Home Link® and Car2U® compatible. See instructions in this manual, refer to the motor vehicle manual or visit
www.OverheadDoor.com for instructions.
Factory Programmed Remote Control:
For ease and speed of installation, the remote included with this opener comes from the factory already
programmed. No additional steps are required to activate the door using the remote.
Series II Wall Console:
Operates door opener from inside garage. The wall console has an indicator light with:
Open/Close, Sure-lock™, and independent light control buttons.
1. Indicator Light: Large white button will display Red when wall console is properly wired and Sure-Lock™ is
OFF. When Sure-Lock™ is ON, this light is o.
2. Open/Close Button: Use this button to open or close garage door. When Sure-Lock™ is ON the Open/Close
button will CLOSE the door only.
NOTE: Constant button pressure in the CLOSE mode will override STB fault in the powerhead and close door.
3. Independent Light Control Button: Use this button to turn the powerhead lights ON. Powerhead lighting
will remain ON until this button is pressed again or a door action has been completed.
4. Sure-Lock™ Button: When Sure-Lock™ is ON, and the door is closed, the powerhead cannot be activated by
the wall console or a remote.
•SlideswitchuptoactivateSure-Lock™(redlightgoeso).
•SlideswitchdowntoturnSure-Lock™OFF(redlightgoeson).
Battery Backup (BBU):
Included with 7020H-B, and available as an option on 7020H. Provides power to opener in the event of a power
failure.
NOTE: Battery Backup will only operate after opener installation is completed and Travel Limits have been set.
