5
825708-0001 Rev- 07/28/2023
©
Copyright 2023 Overhead Door Corporation

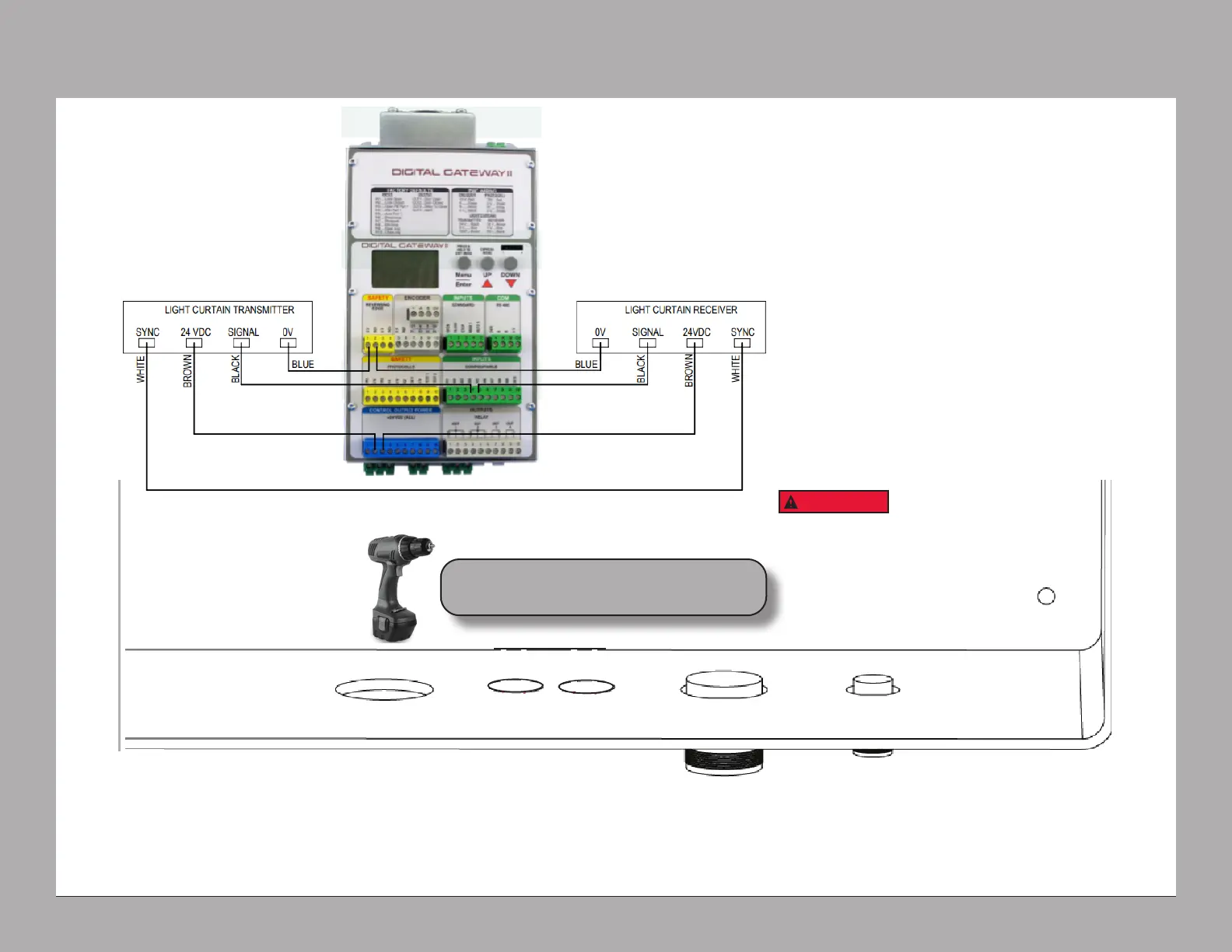

- Drill holes and install cord grip (826310-3444) in the bottom of the controller case.
- The programmable input needs to be programmed to function photoeye1, logic set to NC for the light curtain to function correctly.
- Any unused programmable input may be used. Refer to door installation manual for programming instructions.
- The white sync wires need to be connected to each other with a wire nut (500229-0001) to operate correctly. They do not connect to the
controller.
Drill hole and install grip to the right of
the motor cable.
SECTION 4 LIGHT CURTAIN CONTROLLER WIRING
DANGER
BEFORE BEGINNING THIS PHASE
OF INSTALLATION, ENSURE POWER
SUPPLY IS DISCONNECTED TO AVOID
SERIOUS INJURY OR DEATH!
To Next Page
