3
825708-0001 Rev- 07/28/2023
©
Copyright 2023 Overhead Door Corporation
- 840610 Light curtains are available in 3 foot and 6 foot models.
- The electronics of the light curtains are available in one model, SG 17.
- The 3 foot and 6 foot light curtains connect the same electrically.
- Curtain beam patterns are illustrated in appendix 1.
- Curtain can be placed in front of or behind the door curtain.
- The series is marked on the back of the light curtain as well as transmitter/receiver. Example, SGT-17 or SGR-17.
- Receiver (SGR grey cable) should be placed near the controller and the transmitter (SGT black cable) should be placed on the far side of
the door.
INSTALLING LIGHT CURTAIN BRACKETS KIT 825707.0001
- Bracket system is designed to allow installation for a variety of door systems.
- Light curtain clips may be installed anywhere along the light curtain vertically.
- Horizontal distance may be set using the slots in the brackets or adding /
subtracting pieces to the example below.
- Light curtain receiver and transmitter must be aimed at each other with an
unobstructed path when the door is open to function correctly.
- Turn power o to prevent the door moving unexpectedly while servicing.

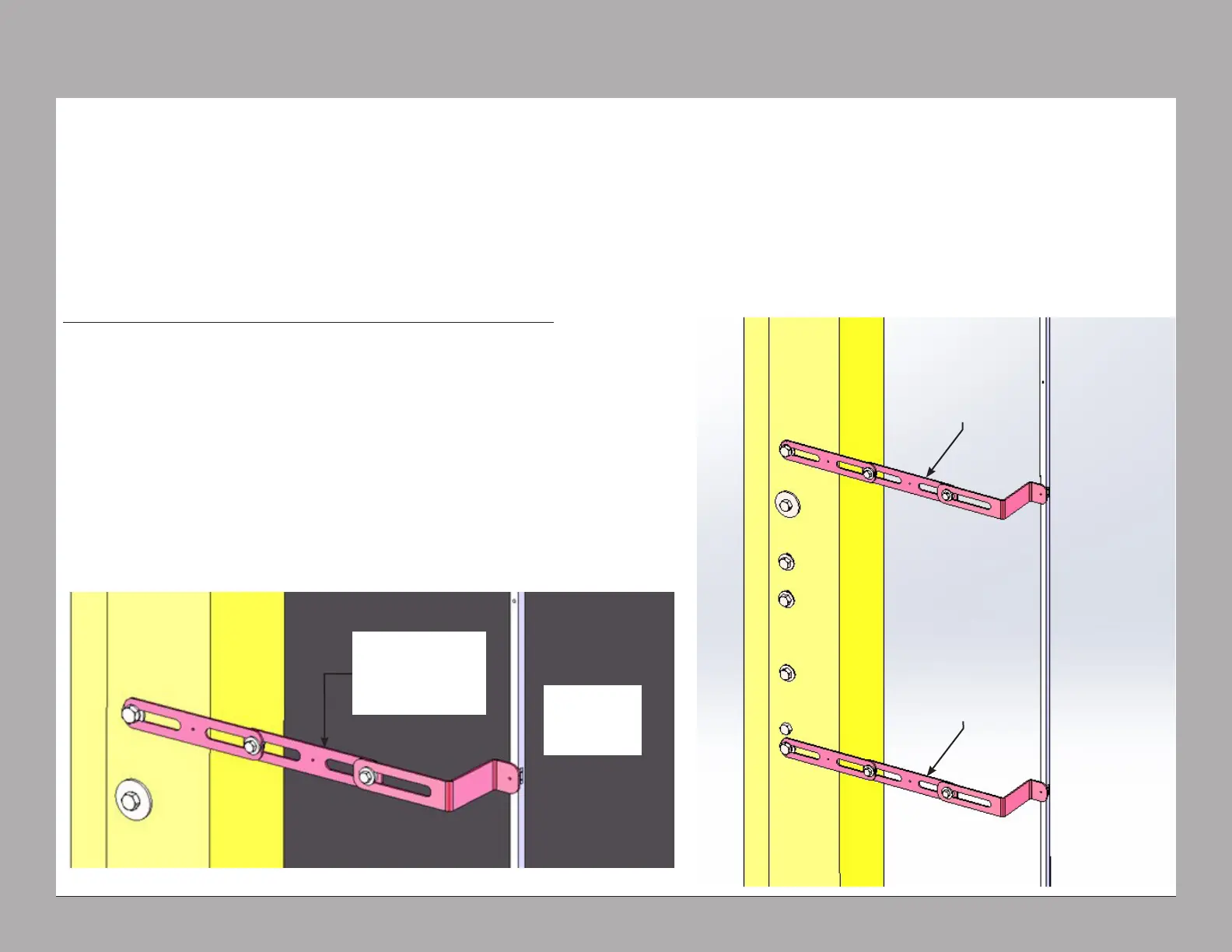

- See Figure1.0 and Figure 2.0
Figure 1.0
DOOR
OPENING
CLOSE UP OF
ASSEMBLED
BRACKET
Figure 2.0
DOOR
OPENING
ASSEMBLED
BRACKET
ASSEMBLED
BRACKET
SECTION 2 INSTALLATION
