OWC DATA DOUBLER INSTALLATION

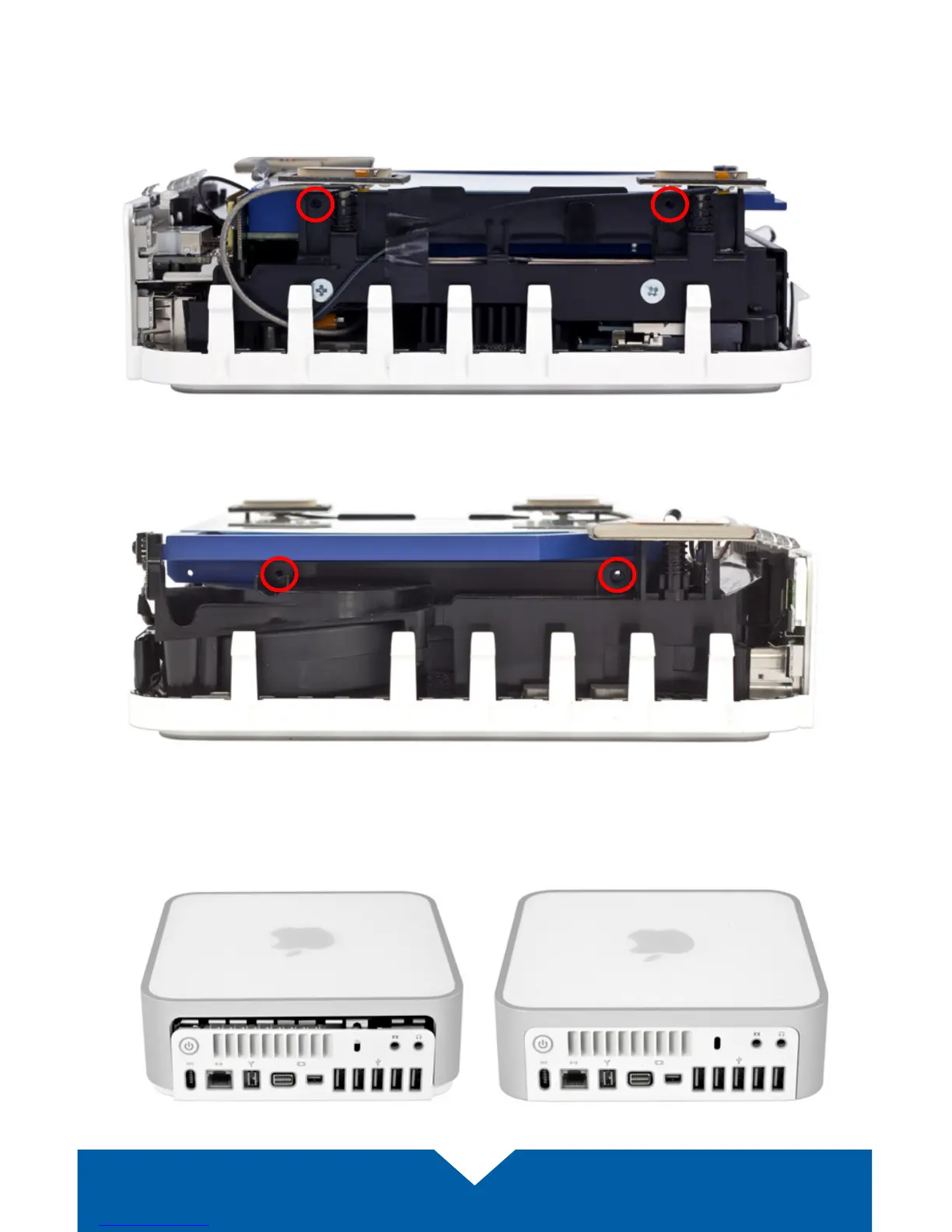

8. Turn the Mac mini so that the ports face to your left, as shown below. Install two Phillips

screws into the holes circled in red. If the screw holes are not aligned with the Data Doubler,

press down slightly on the front of the Data Doubler (the right edge in this picture), then

install the screws.

9. Turn the Mac mini so that the ports face to your right, as shown in the picture below. Install

the nal two Phillips screws into the holes circled in red.

10. Align the cutout in the aluminum housing with the rear ports on the Mac mini, as shown

below-left. Press down rmly on the housing to connect all of the clips on the inner-

chassis to the housing. When the Mac mini is fully assembled there will be no visible gaps

between the aluminum housing and the inner-chassis, as shown below-right.
