OWC data doubler User Manual

OWC DATA DOUBLER INSTALLATION
3

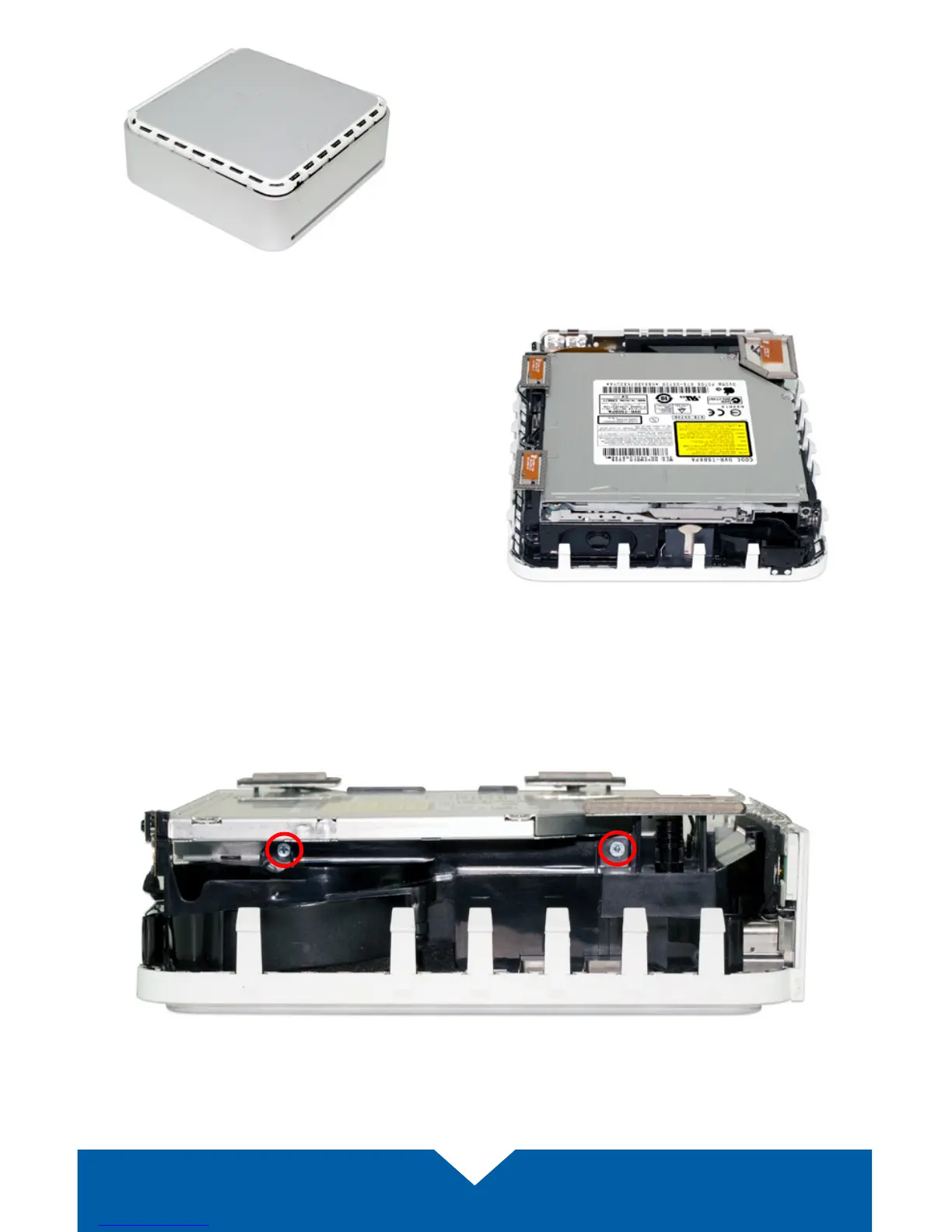

4. Once all of the plastic clips have been released,
the inner chassis should start to separate from
the aluminum housing, as shown at left. Turn
the Mac mini over and remove the housing
from the inner chassis. You may have to
wiggle the housing slightly, but as long as all
of the plastic clips were removed in Step 3, the
housing will lift o.
5. When the housing is removed, the Mac
mini appears as in the picture at right. The
next step is to remove the optical drive.
6. Turn the Mac mini so that the rear ports are to your right, as shown in the picture below.
Use a Phillips screwdriver to remove the two screws circled in red.

OWC data doubler Specifications

General

Brand	OWC
Model	data doubler
Category	Computer Accessories
Language	English
