OWC DATA DOUBLER INSTALLATION

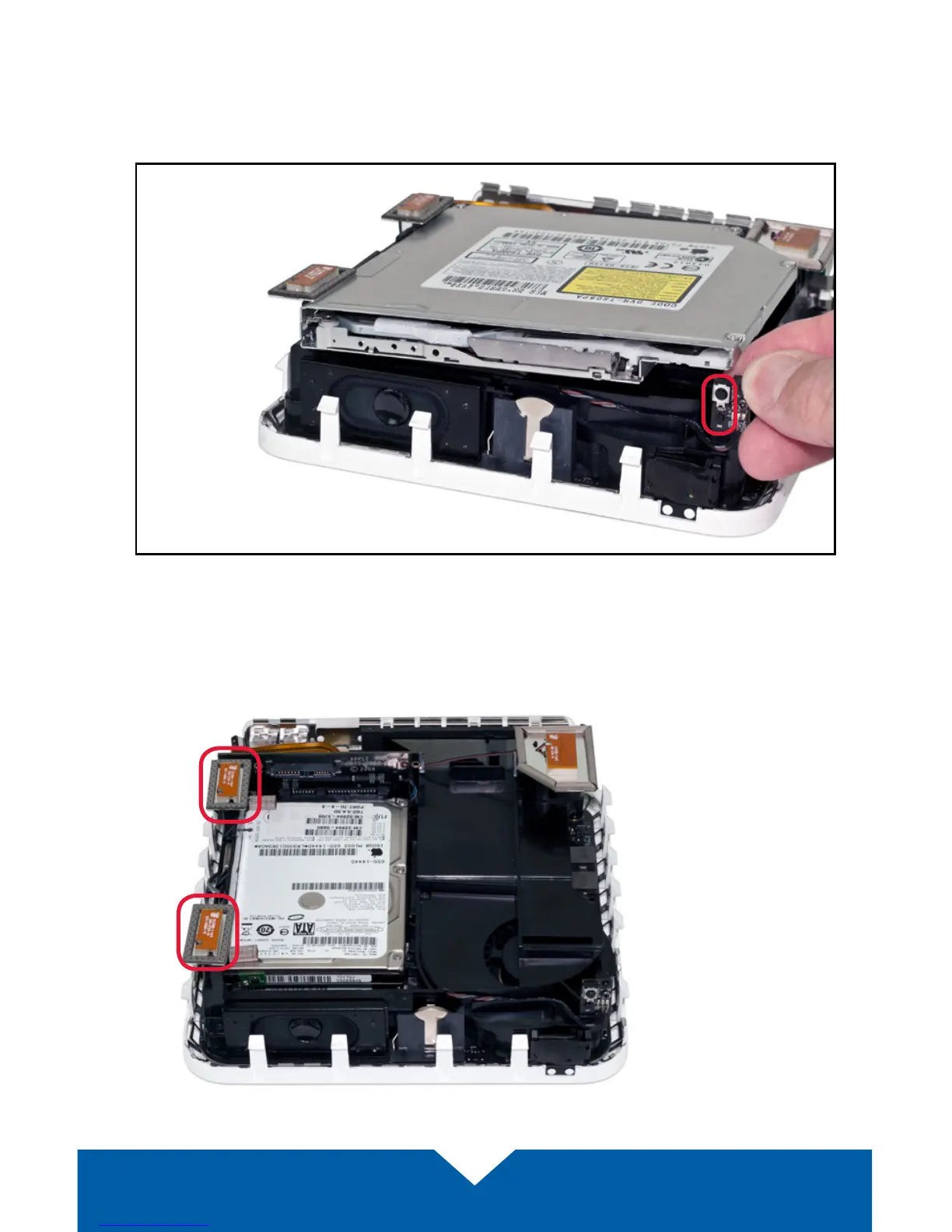

9. Turn the Mac mini so that you can see the front of the optical drive, as shown below. Lift up

on the right corner of the optical drive so that it clears the IR receiver (highlighted in red),

then pull the optical drive towards you to remove it from the Mac mini. The optical drive is

attached to a SATA connector at the rear; if the drive does not come out when you pull,

you can disconnect it with a nylon pry tool or your ngernail.

10. Remove the two antennas highlighted in the picture below. These sit on spring posts (see

the picture in Step 7 for a side view); you can gently lift straight up to dislodge them. Note:

the antenna cables can break if too much force is applied. Move the antennas out of the

way, but keep them connected to their cables.
