OWC MERCURY ELITE PRO MINI User Manual

OWC Mercury Elite Pro mini Chapter 1 - Introduction

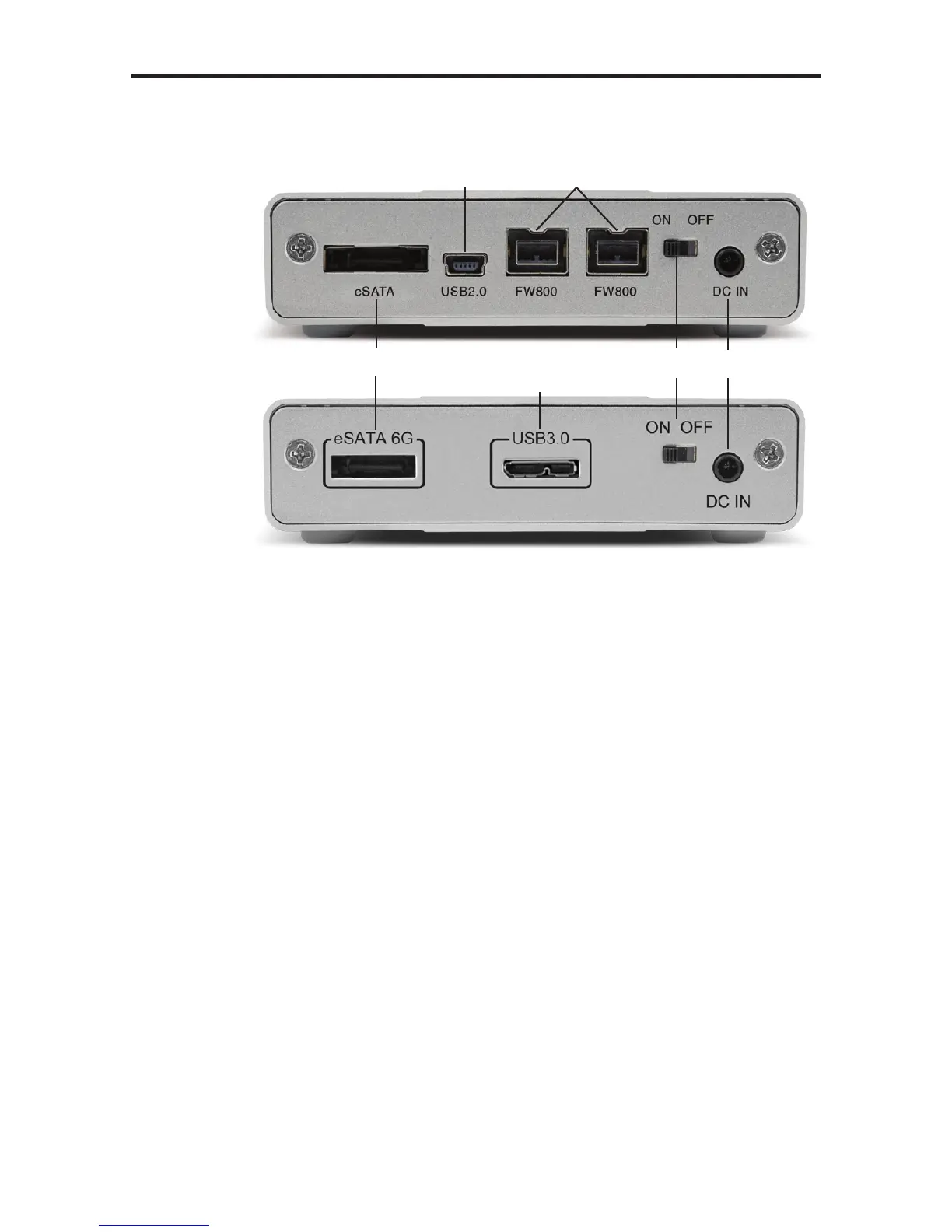

Cable Connections:
The OWC Mercury Elite Pro mini family has multiple interfaces to work with
any computer system.
➀ DC IN port - Use an auxiliary power source (external wall adapter, or USB
power adapter plug) in this port. See section 1.5 for more details.
➁ On/O Switch - Turn the OWC Mercury Elite Pro mini on and o here.
➂ eSATA Port - Use with your eSATA interface for high speed connection.
NOTE: Requires external power source. See section 1.3.2 and 1.3.3 for more
details.
➃ FireWire 800 (1394b) Ports - Connect one FireWire 800 port to your
computer using the included cable and use the other FireWire 800 port to
connect additional peripherals.
➄ USB 2.0 mini Port - Connect one of your computer’s USB ports to the
OWC Mercury Elite Pro mini here using the included cable.
➅ USB 3.0 micro Port - Connect one of your computer’s USB ports to the
OWC Mercury Elite Pro mini here using the included cable.
1.3.1 Connecting your OWC Mercury Elite Pro mini
➃➄
➅
Quad
Interface
Dual
Interface
➂
➀
➁
1.3 Using your OWC Mercury Elite Pro mini

OWC MERCURY ELITE PRO MINI Specifications

General

Compatible operating systems	Windows MacOS Linux
Supported storage drive interfaces	Serial ATA
FireWire 400	Yes
USB 2.0 ports quantity	1
Cables included	eSATA, FireWire, USB
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Material	Aluminum
Product color	Silver
Data transfer rate	3 Gbit/s

Weight and Dimensions

Depth	139.7 mm
Width	96.52 mm
Height	27.94 mm
Weight	330 g
