OWC MERCURY HELIOS 3 User Manual

OWC Mercury Helios 3
Device Setup
6

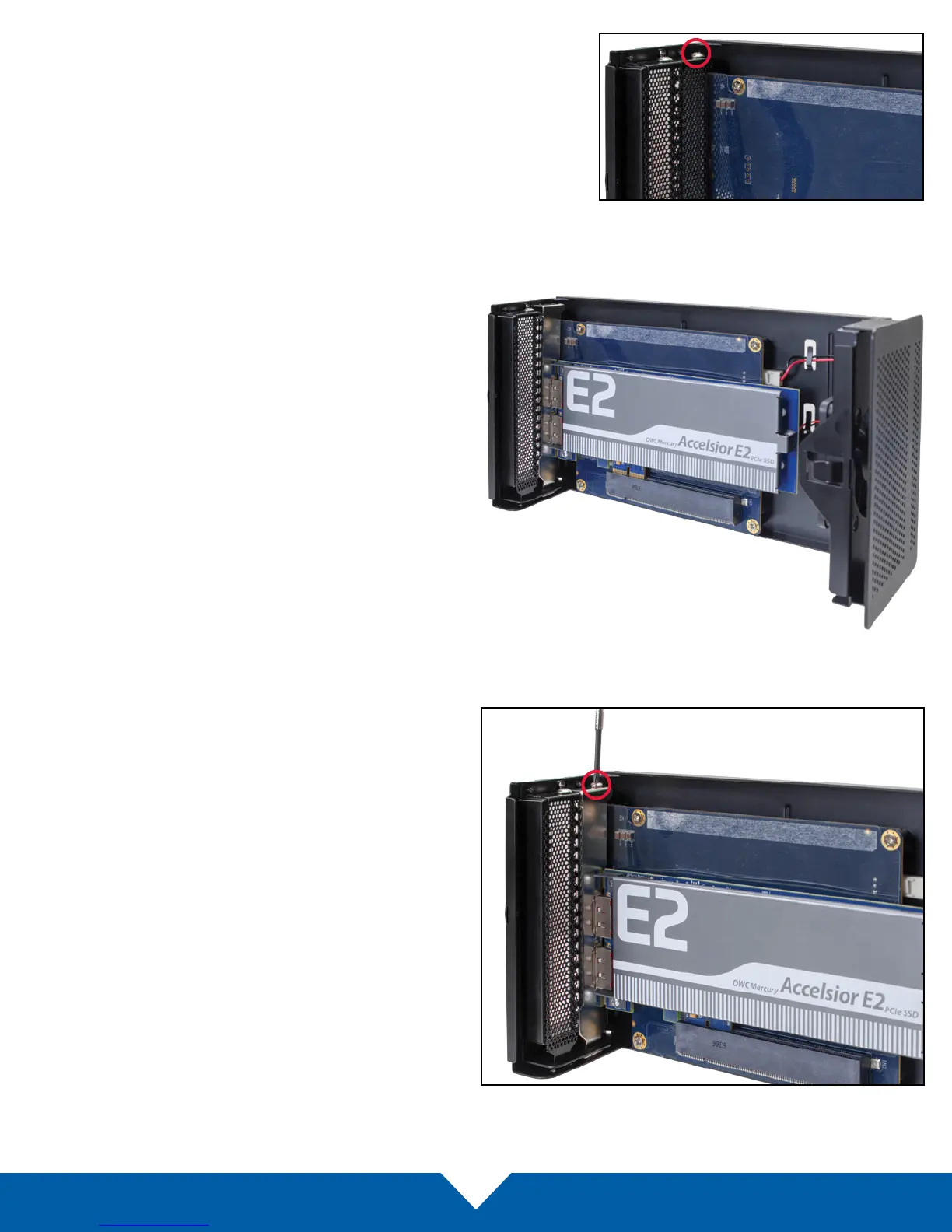

4. Remove the screw (shown at right) which holds the
PCIe slot cover in place, then remove the PCIe slot
cover and set both items aside. Remove both slot
covers if the PCIe card is a double-width card.
5. Install the PCIe card. Line up the connectors on
the card with the PCIe slot (highlighted in red), and
make sure that the edge of the metal bracket on
the PCIe card lines up with the slot in the bottom
of the Helios 3. The card shown is an example of
a single-width, half-length, half-height card. Your
card’s dimensions and appearance may dier.
6. Once the PCIe card is fully seated, the PCIe
bracket will sit ush with the opening on the back
of the inner-chassis. Take the screw you removed
in Step 4 and secure the PCIe card bracket to the
Helios 3.
