OWC miniStack User Manual

OWC miniStack
Device Setup
6

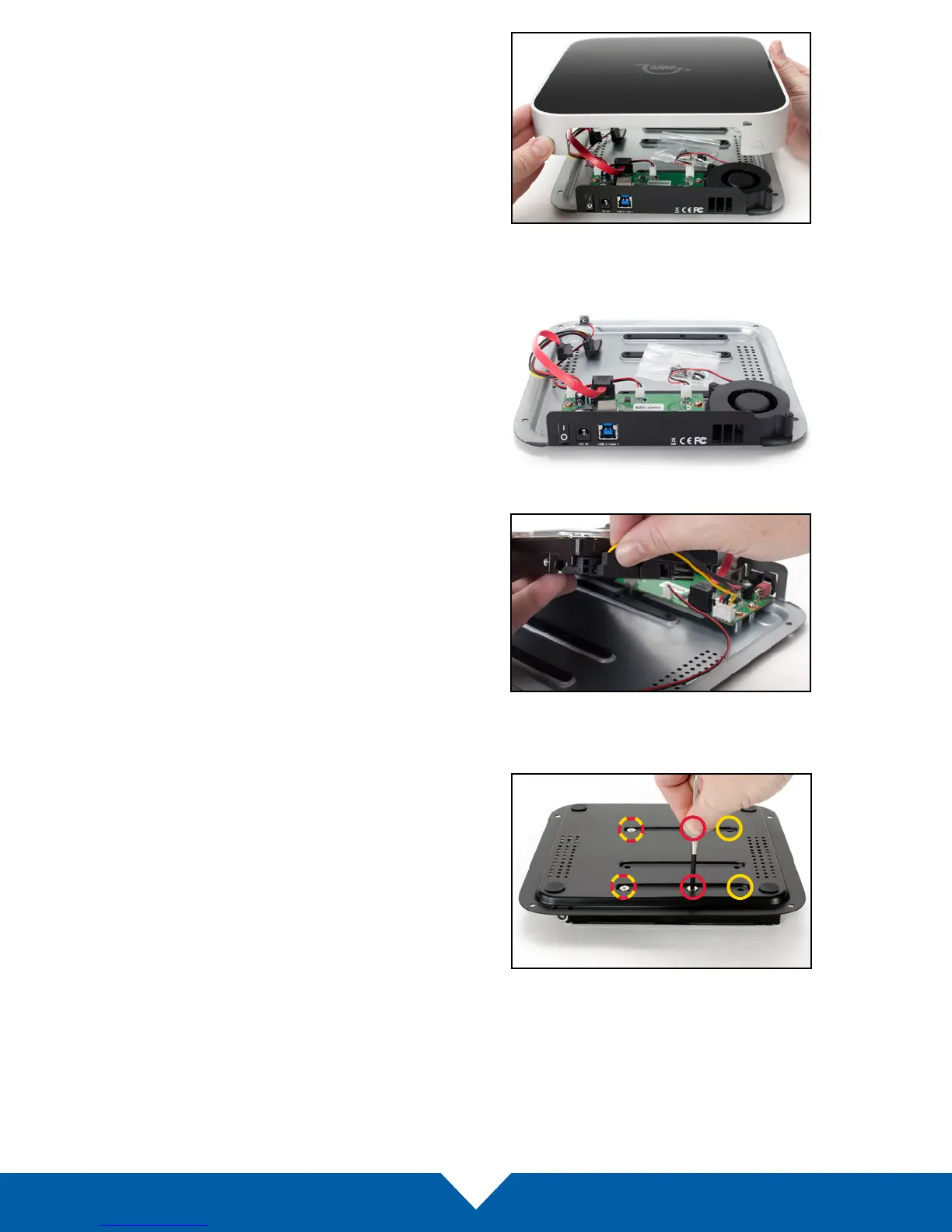

3. Holding the base and top cover together, ip the
miniStack again, then carefully lift the cover o as
shown at right.
4. Remove the screw packet found on the base of the
miniStack. Set the screws aside for use in later steps.
5a. 3.5 inch SATA drives: Rotate the base as shown
then connect the SATA power and data cables to
the corresponding ports on the back of the drive.
Set the drive onto the black support strips; make
sure the screw holes are aligned.
6a. Hold the drive in place then ip the base over. Where
the screw holes on the drive and base overlap, ax
four of the coarse thread screws from the packet.
NOTE: most drives will use the pattern shown at
right in red, while some drives will use the pattern
shown in yellow.

OWC miniStack Specifications

General

HDD capacity	10000 GB
Storage drive size	3.5 \
Card reader integrated	No
Maximum storage capacity	10 TB
Installed storage drive type	HDD
Number of storage drives supported	1
Supported storage drive interfaces	Serial ATA III
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	2.5 A
AC adapter output voltage	12 V
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector type	USB Type-B
USB connector gender	Female
Material	Aluminum
Product type	HDD enclosure
Certification	CE, FCC
Product color	Black, Silver
Number of fans	1 fan(s)
Chipset	ASMedia ASM1153E
Cables included	AC, USB
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	5 - 42 °C

Weight and Dimensions

Depth	197 mm
Height	36 mm
Weight	850 g
