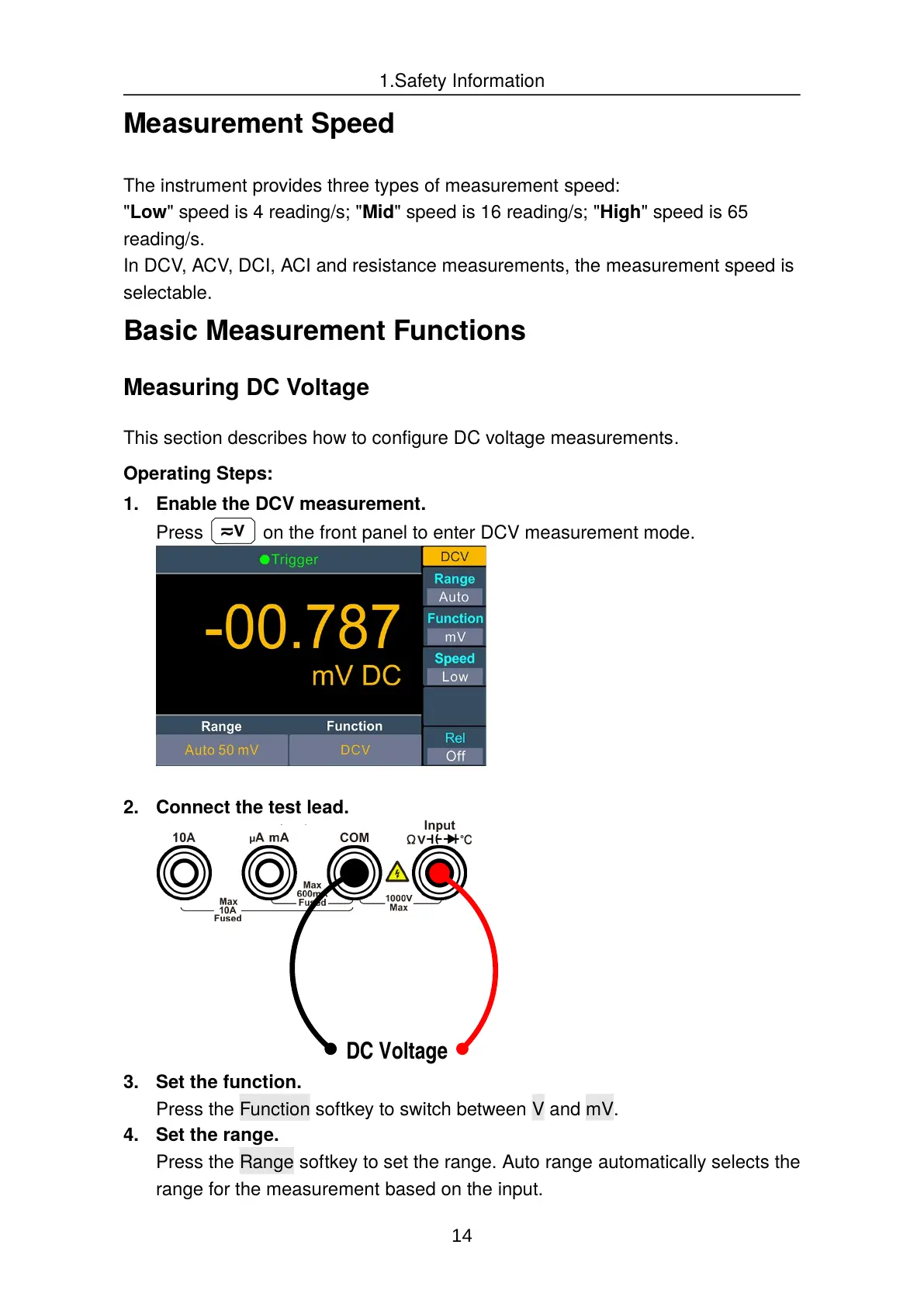

1.Safety Information
Measurement Speed
The instrument provides three types of measurement speed:
"Low" speed is 4 reading/s; "Mid" speed is 16 reading/s; "High" speed is 65
reading/s.
In DCV, ACV, DCI, ACI and resistance measurements, the measurement speed is
selectable.
Basic Measurement Functions
Measuring DC Voltage
This section describes how to congure DC voltage measurements.
Operating Steps:
1. Enable the DCV measurement.
Press on the front panel to enter DCV measurement mode.
2. Connect the test lead.
3. Set the function.
Press the Function softkey to switch between V and mV.
4. Set the range.
Press the Range softkey to set the range. Auto range automatically selects the
range for the measurement based on the input.
