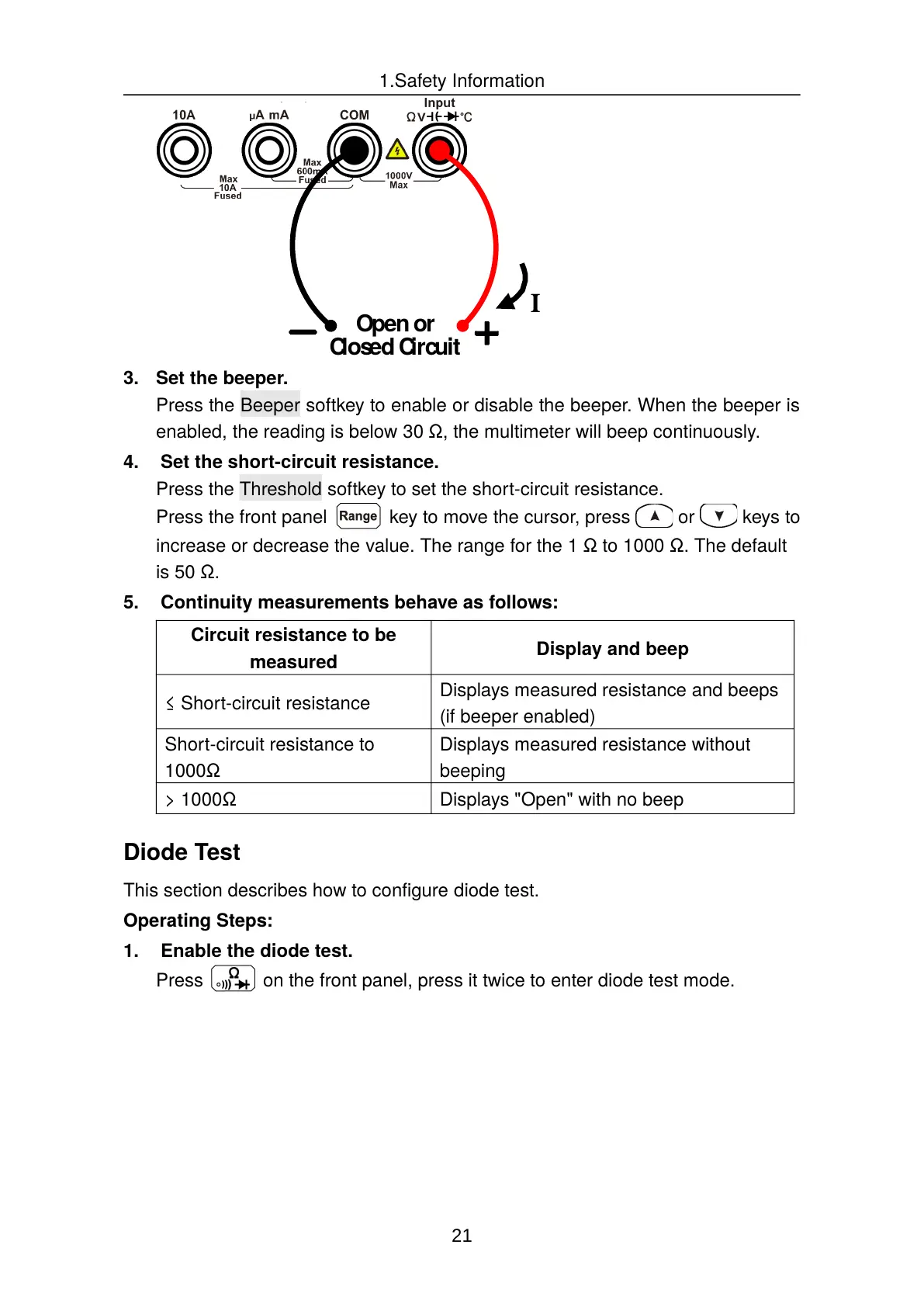

1.Safety Information
Open or
Closed Circuit
I
3. Set the beeper.
Press the Beeper softkey to enable or disable the beeper. When the beeper is
enabled, the reading is below 30 Ω, the multimeter will beep continuously.
4. Set the short-circuit resistance.
Press the Threshold softkey to set the short-circuit resistance.
Press the front panel key to move the cursor, press or keys to
increase or decrease the value. The range for the 1 Ω to 1000 Ω. The default
is 50 Ω.
5. Continuity measurements behave as follows:
Circuit resistance to be
measured
Display and beep
≤ Short-circuit resistance
Displays measured resistance and beeps
(if beeper enabled)
Short-circuit resistance to
1000Ω
Displays measured resistance without
beeping
> 1000Ω Displays "Open" with no beep
Diode Test
This section describes how to congure diode test.
Operating Steps:
1. Enable the diode test.
Press on the front panel, press it twice to enter diode test mode.
21
