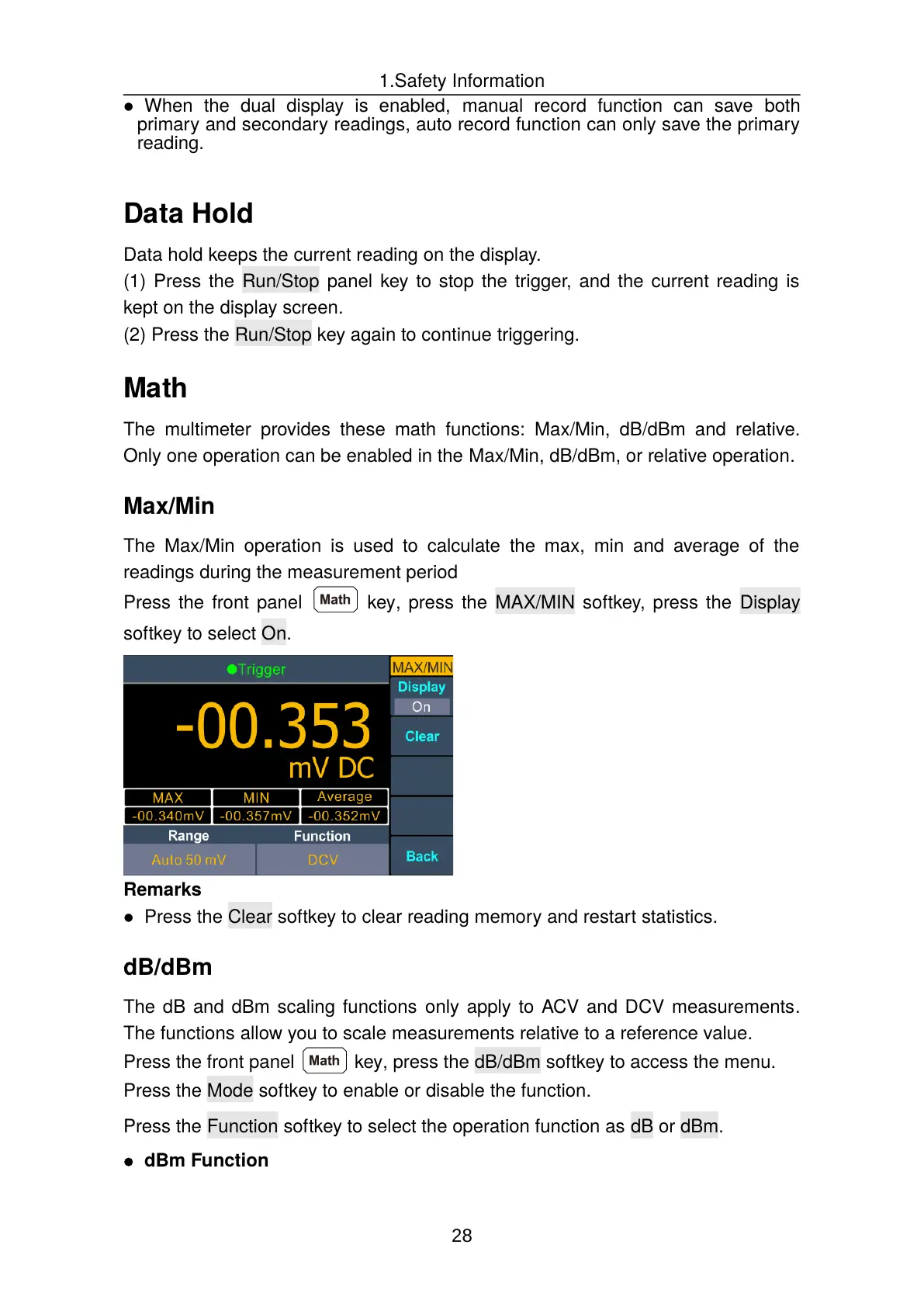

1.Safety Information
When the dual display is enabled, manual record function can save both
primary and secondary readings, auto record function can only save the primary
reading.
Data Hold
Data hold keeps the current reading on the display.
(1) Press the Run/Stop panel key to stop the trigger, and the current reading is
kept on the display screen.
(2) Press the Run/Stop key again to continue triggering.
Math
The multimeter provides these math functions: Max/Min, dB/dBm and relative.
Only one operation can be enabled in the Max/Min, dB/dBm, or relative operation.
Max/Min
The Max/Min operation is used to calculate the max, min and average of the
readings during the measurement period
Press the front panel key, press the MAX/MIN softkey, press the Display
softkey to select On.
Remarks
Press the Clear softkey to clear reading memory and restart statistics.
dB/dBm
The dB and dBm scaling functions only apply to ACV and DCV measurements.
The functions allow you to scale measurements relative to a reference value.
Press the front panel key, press the dB/dBm softkey to access the menu.
Press the Mode softkey to enable or disable the function.
Press the Function softkey to select the operation function as dB or dBm.
dBm Function
