oxycom CABIN 400 - Page 19

Maintenance
21
00010605 B 19
Step 1: Removing the cover

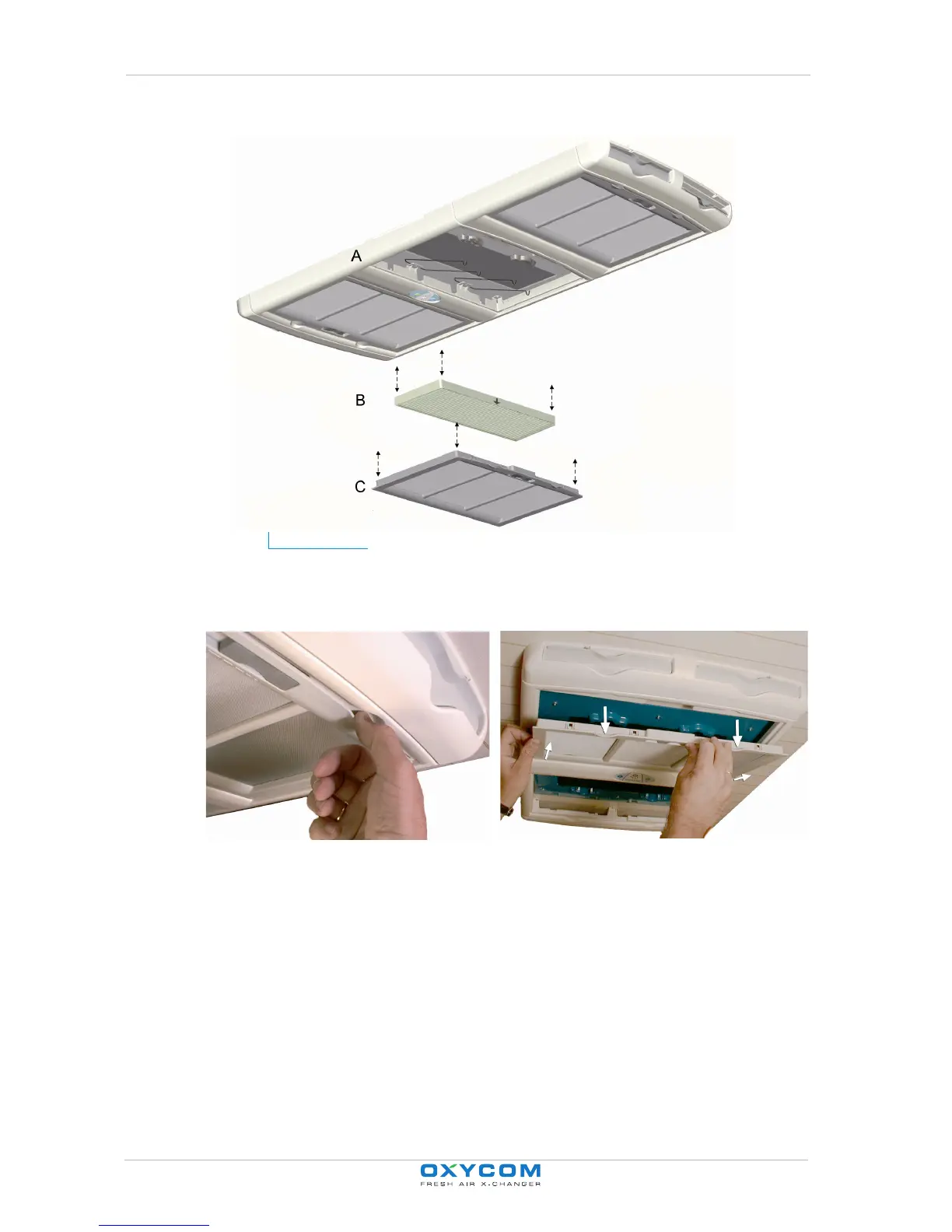

Figure 4.2 OXYZONE with air filter (B) and screen frame (C)
1. Push the screen frame towards the operator panel. Hold the frame securely to
prevent it falling.
2. Slide the frame out of the OXYZONE.
