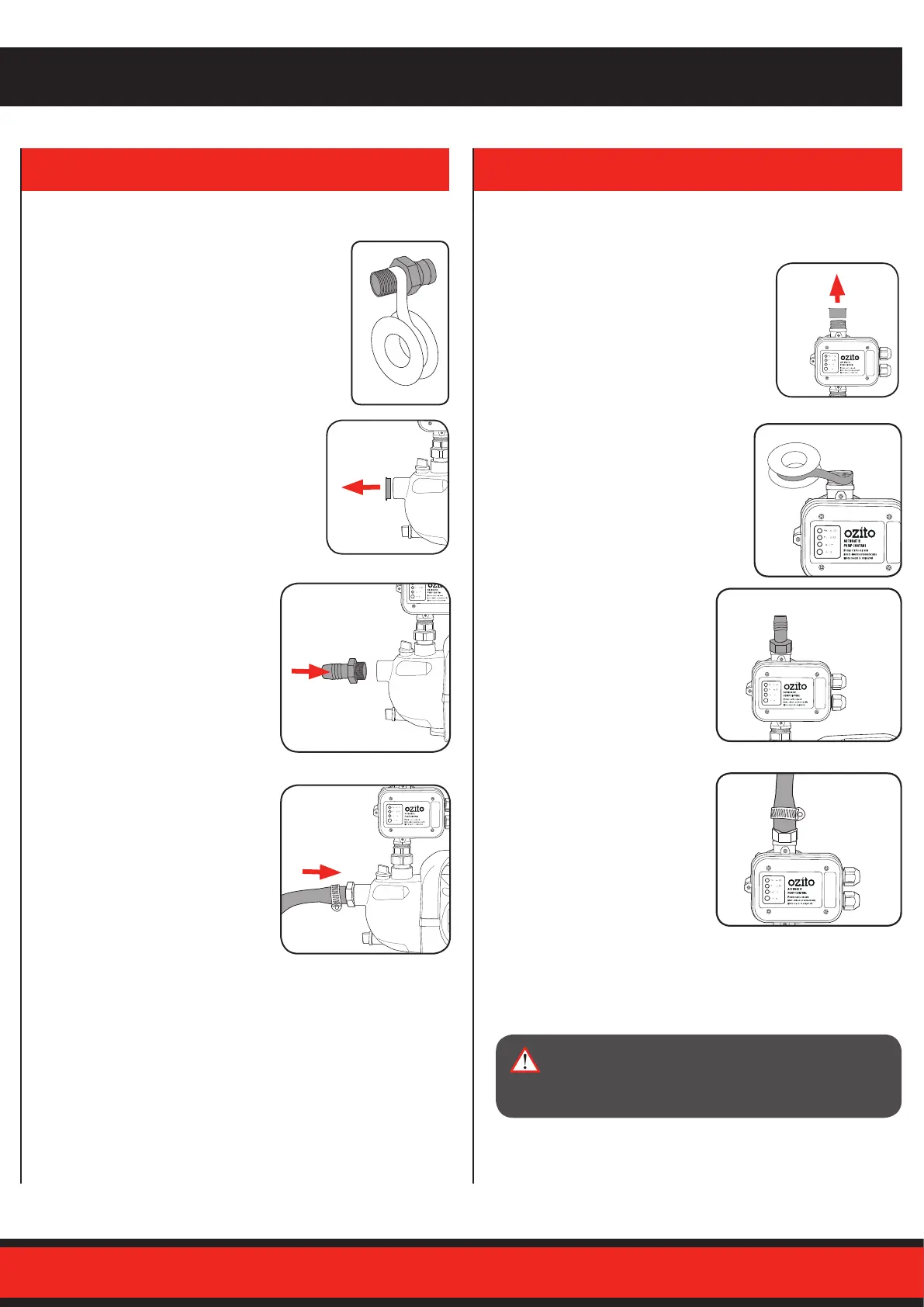

Connecting to
the discharge outlet
1. Remove the plastic protection cover from
the discharge outlet.
2. Wrap the discharge outlet with Teon
tape.
3. Insert a 1” female threaded
adaptor (not included).
4. Securely attach the output hose
or pipe (not included) to the
other end of the adaptor. Ensure
you have the correct diameter
hose or pipe that is compatible
with your water discharge
application.
Note: The discharge hose or pipe
you are using must have a minimum
diameter of 19mm (3/4’’).
Note: Ensure the discharge hose or pipe is not restricted in any
way and nothing is obstructing the hose or pipe when the pump is in
operation.
Connecting to the suction inlet
1. Teon tape is required on threads to ensure
a water tight seal and prevent any leakage.
Wind Teon clockwise on ttings.
2. Remove the plastic protection cover
from the suction inlet.
3. Insert 1” male threaded adaptor
(not included). Tighten rmly with
a spanner (not included).
4. Securely attach the input hose or
pipe (not included) to the other end
of the adaptor. Ensure you have
the correct diameter hose or pipe
that is compatible with your water
drawing source.
Note: The suction pipe should have
an internal diameter of at least
25.4mm (1”); it must be kink resistant
and suitable for pump use. Ensure the
input hose or pipe is not restricted in any way.
2. SUCTION INLET 3. DISCHARGE OUTLET
WARNING!: RISK OF INJURY! IF THE COMPONENTS
ARE NOT COMPRESSION-PROOF OR IF THEY ARE
IMPROPERLY INSTALLED, THE PRESSURE LINE COULD
BURST DURING OPERATION.
