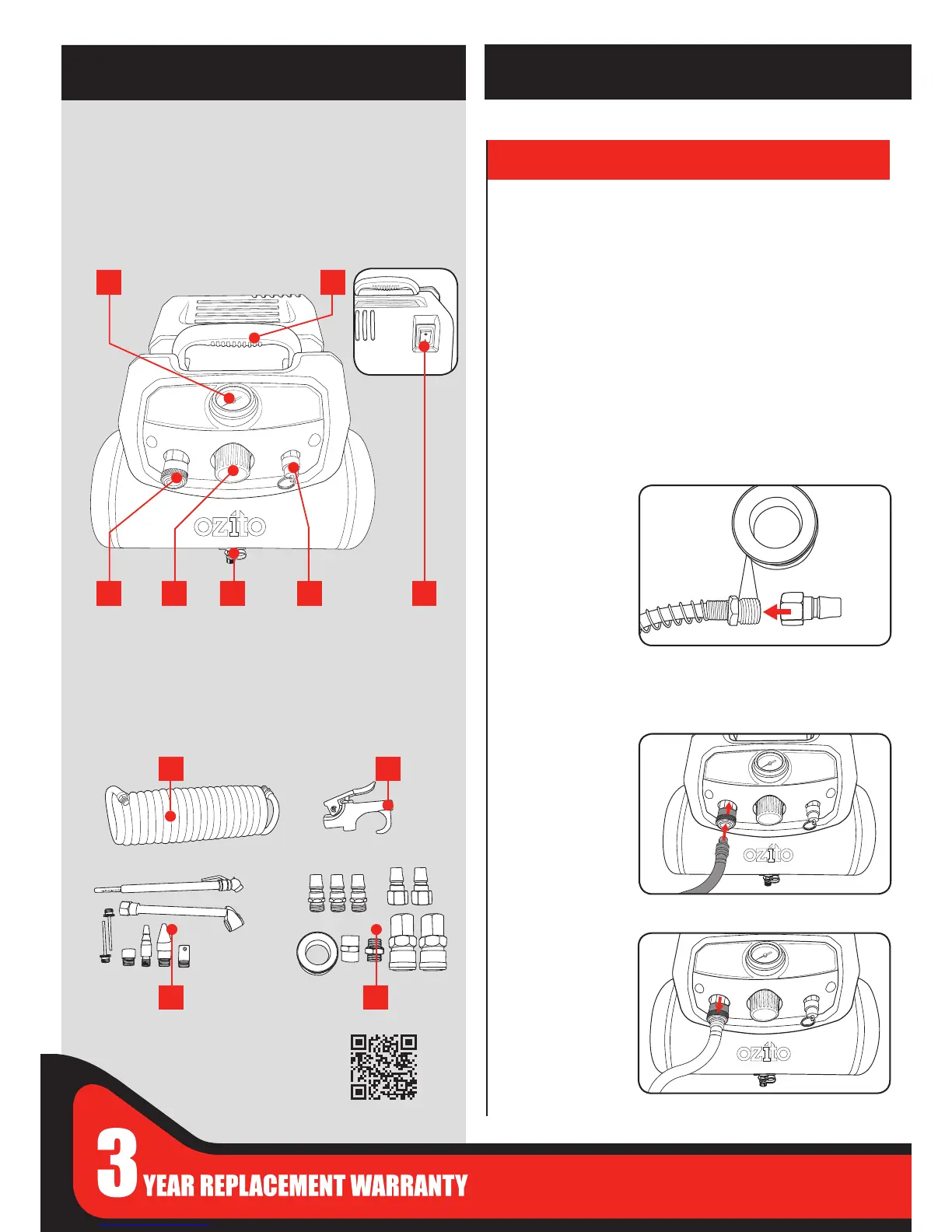

Connecting Air Hose to the Compressor
1 Pressure Gauge
2 Carry Handle
3 Nitto Style Coupling
4 Pressure Adjustment Dial
5 Drain Valve
6 Safety Release Valve
7 On/OSwitch
AIR COMPRESSOR
ACCESSORIES
KNOW YOUR PRODUCT
1. ASSEMBLY AND STARTING
SETUP & PREPARATION
7654
1 2
3
Pre Setup Checks
• Examine the machine for signs of transit damage. If damaged, do
not use, return to place of purchase
• The compressor should be set up near to the user.
• Avoid long air lines and long supply lines (extensions).
• Make sure the intake air is dry and dust-free.
• Do not set up the compressor in damp or wet rooms.
• The compressor is designed to be used in dry rooms. It is prohibited
to use the compressor in areas where work is conducted with
sprayed water. Before you use the machine, make sure that the
mainsvoltagecomplieswiththespecicationsontheratingplate.
8 Air Hose (7.5m)
9 Blow Gun
10 InationAdaptersx8
11 Connection
Accessories x 10
3 The quick-lock sleeve will spring forward automatically, connecting
the air hose.
2 Insert the 1/4” male nitto quick plug of the air hose into the quick-
lock coupling of the air compressor by pulling back the sleeve and
inserting the plug.
1 Attach the 1/4” female nitto quick plug to the air hose. Use pipe tape
on all threads to ensure a good air seal.
8 9
10 11
