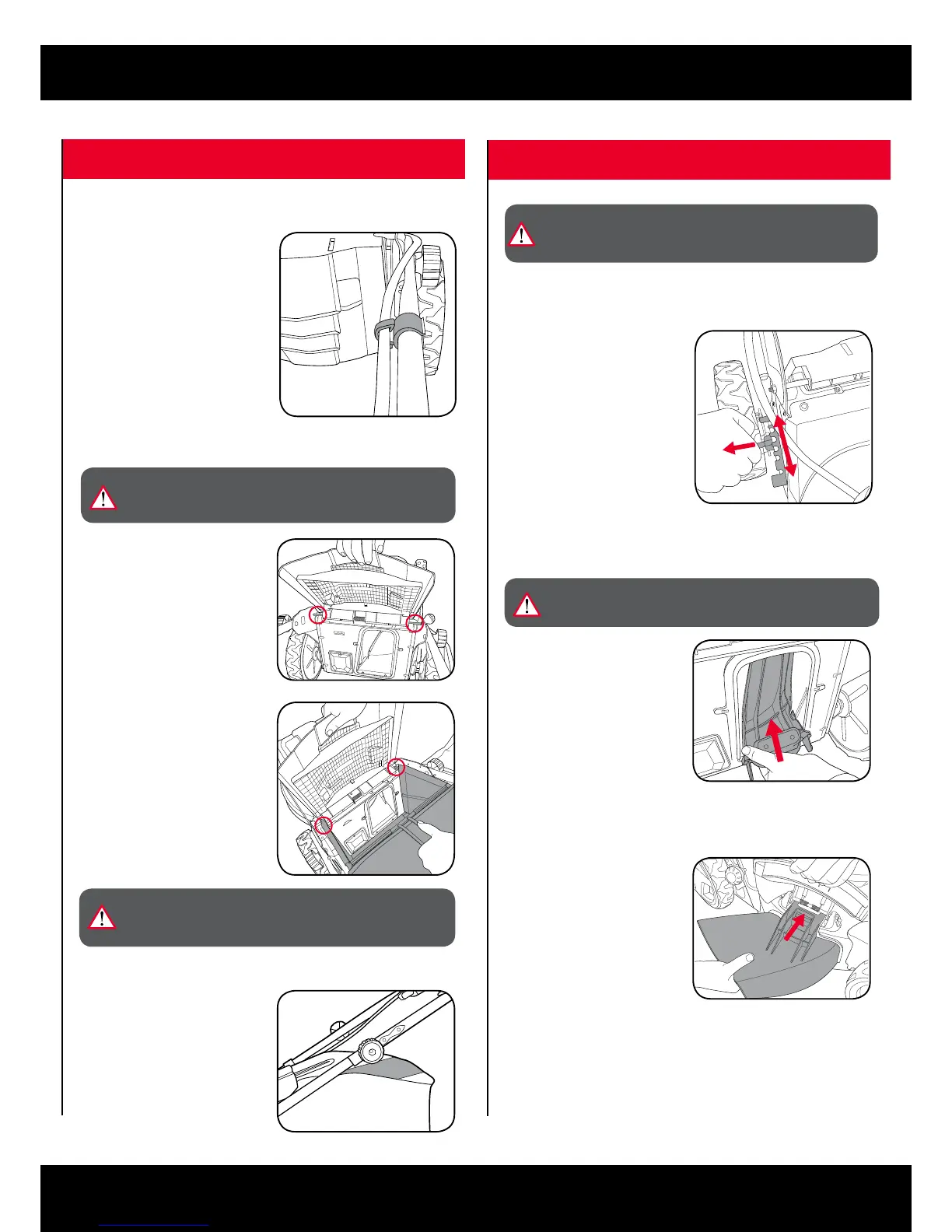

2. PREPARATION
1. Lift up the grass catcher ap with
one hand and guide the catcher
with your other hand onto the
mower housing.
3. To remove, raise the grass
catcher ap and lift the grass
catcher out.
2. Lower the grass catcher and allow
it to sit in place. Lower the grass
catcher ap.
Adjusting the Cutting Height
Fitting and Removing the Grass Catcher
IMPORTANT! ONLY FIT AND REMOVE THE CATCHER
WHEN THE MOWER IS SWITCHED OFF AND THE
MOTOR HAS COME TO A STOP.
1. Locate cord on lower handle. Push
the supplied cord clip over the lower
handle. Place the cable onto the
cord clip to secure in place.
Note: Care should be taken not to
pinch the cord when folding down the
handle.
Securing the Cord
Ensure the cord follows the handle
smoothly from the switch to the body of
the mower.
Note: The grass catcher ap is held
against the grass catcher by a spring.
The height adjustment lever provides 6 cutting heights from 30mm to 65mm.
1. Pull lever outwards away from
the mower body.
2. Adjust until the required cutting
height is selected.
3. Release lever and check that it is
securely seated in the required
cutting height position.
WARNING! WHEN FITTING THE GRASS CATCHER
AFTER EMPTYING, ALWAYS ENSURE THERE IS NO
BUILD UP OF GRASS IN THE GRASS CHUTE.
Grass Catcher Indicator
The grass catcher is tted with an
indicator at the rear of the catcher to
help identify when to empty.
If the indicator drops down while
operating then the grass catcher is full
and needs emptying.
Mulching Adaptor
Side Ejector
In mulching mode the cuttings are shredded in the enclosed mower housing
and then spread back onto the lawn.
IMPORTANT! MULCHING IS ONLY POSSIBLE IF THE
LAWN IS RELATIVELY SHORT.
1. To use the mulching function,
remove the grass catcher, slide
the mulching plug through the
ejector opening and close the
grass catcher ap.
Note: The mulching adaptor must be tted in order to use the side ejector.
1. Lift up the side ejector ap with
one hand and guide the side
ejector adaptor with your other
hand onto the mower housing.
2. Lower the side ejector adaptor
and allow it to sit in place. Lower
the side ejector ap.
WARNING! ENSURE THE TOOL IS SWITCHED OFF
AND BATTERIES ARE DISCONNECTED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
