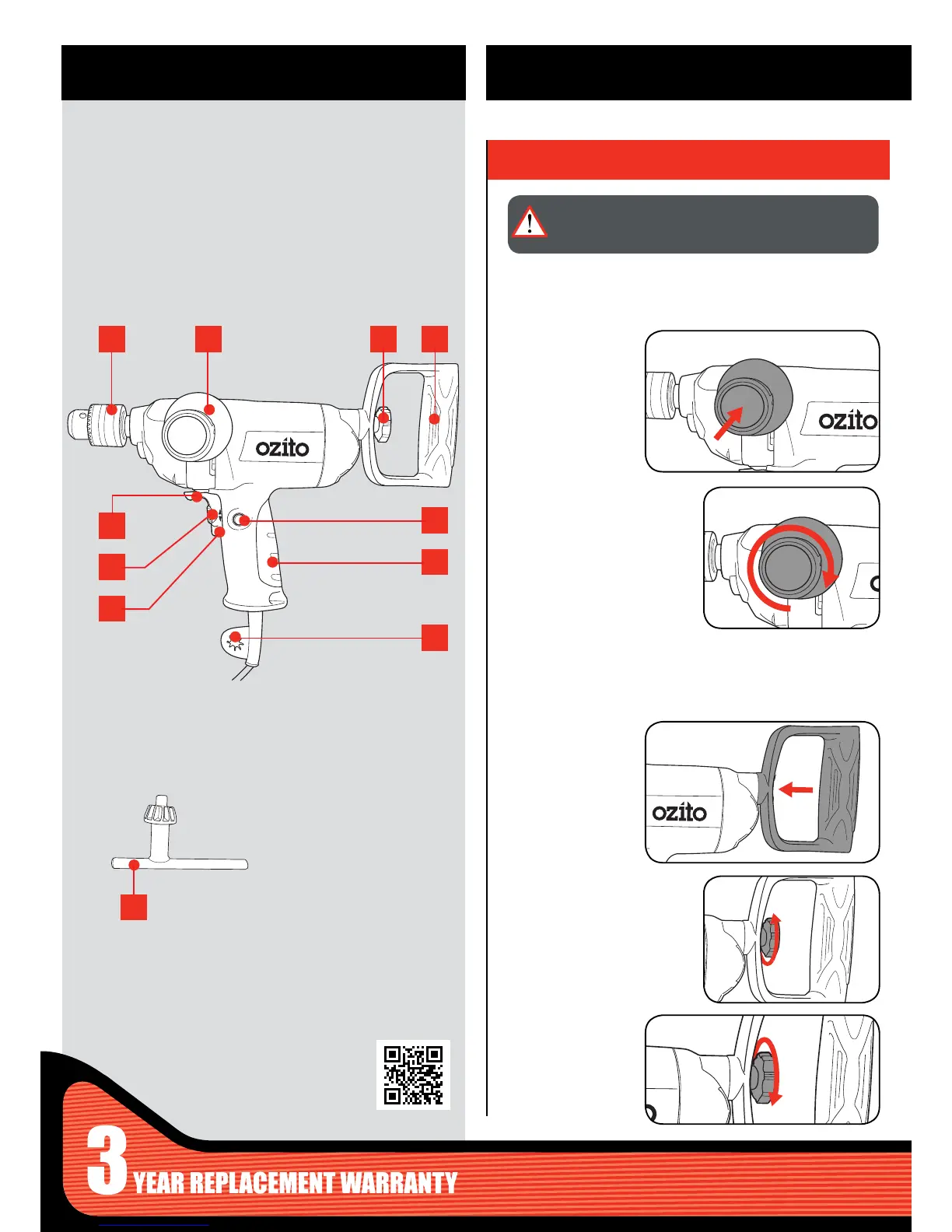

KNOW YOUR PRODUCT SETUP & PREPARATION
1. HANDLES
1 Chuck
2 Side Handle
3 Securing Knob
4 Rear Spade Handle
5 Forward / Reverse Lever
6 Variable Speed Dial
7 On/Off Trigger
8 Lock-On Button
9 Mid Handle
10 Chuck Key Holder
SPADE HANDLE DRILL
1
5
6
7
2 3 4
8
9
10
11
11 Chuck Key
ACCESSORIES
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING ASSEMBLY.
Side Handle
Spade Handle
2 Rotate the handle in a
clockwise direction to secure
in place.
2 Screw the securing knob into
clockwise into the recess to
secure in place.
1 Align the side handle
with 1 of the 3 hole
position in the drill
housing.
The side handle provides additional comfort, control, and guidance for
the drill. The handle can be tted in 3 positions to suit the user.
The rear spade handle provides additional control and support when
using the tool. It can be attached either horizontally, vertically or should
you require it, diagonally.
1 Place the spade
handle into the
locating boss at the
angle you desire.
3 To change the angle,
loosen the securing
knob. Adjust the
handle angle
and retighten the
securing knob.
